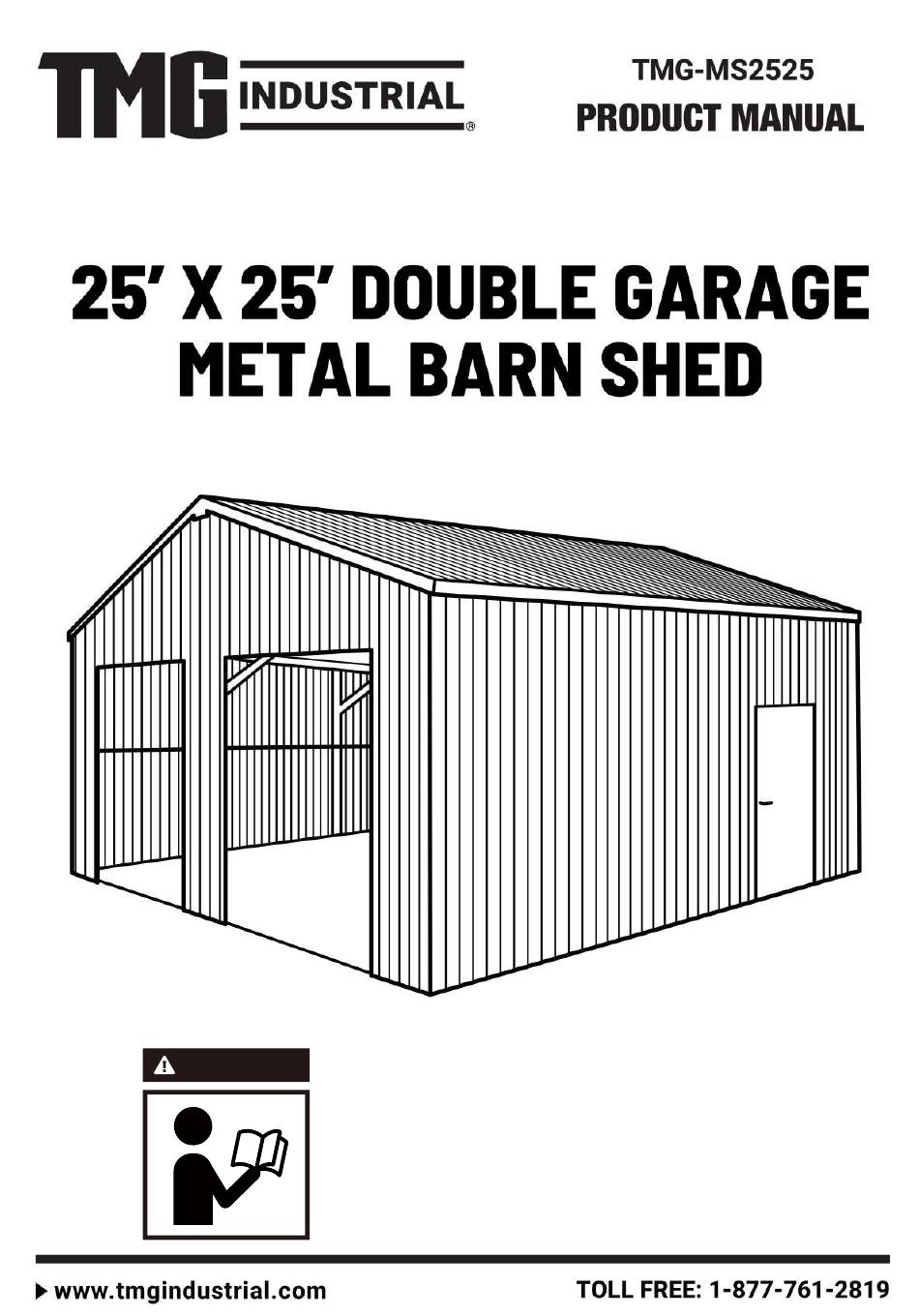

TMG -MS2525 Product Manual

25'x25' double garage metal barn shed
Hide thumbs Also See for TMG-MS2525:

Advertisement

Quick Links

WARNING
►www.tmgindustrial.com
This structure is intended for temporary outdoor storage use only. It is not designed to
withstand heavy snow and wind loads and does not come with engineering drawings.
To ensure suitable for your specific weather needs, it is your responsibility to verify
their appropriateness for your intended use and local weather conditions, especially in
areas prone to severe weather.
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
1/50
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
TOLL FREE: 1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-MS2525 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TMG TMG-MS2525

  • Page 1 This structure is intended for temporary outdoor storage use only. It is not designed to WARNING withstand heavy snow and wind loads and does not come with engineering drawings. To ensure suitable for your specific weather needs, it is your responsibility to verify their appropriateness for your intended use and local weather conditions, especially in areas prone to severe weather.
  • Page 2 Important tips Dear user Hello! In order to offer you a better use experience, we recommend that after the installation of the product, you shall carry out anti-rust protection treatment for the cutting end directly exposed to the air, the paint scratch and the surface zinc layer damage caused during the installation process.
  • Page 4 BEFORE YOU START Items Required: Tools gloves Riveting Gun Sleeve Shoes Safety Glasses Tools Power drill Tape Measure Ladder Screw drive Pencil snow on roof can damage building, making it unsafe to enter. where each part is positioned. safety glasses to protect your eyes and shoes or boots to protect your feet. erection stage.
  • Page 5 OPTION 1 - CONCRETE PAD LAYOUT Unit:mm Depth of cement 7610 TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 5/52...
  • Page 6 OPTION 2 - CONCRETE FOOTING LAYOUT MS2525 Depth of cement Note:the ground anchor is installed on the cement block. Back 7712 1853 1853 1853 1853 MS2525 3406 Front TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 6/52...
  • Page 7 PART LIST Picture Part No. Specification 1550*880mm 1550*880mm 1550*880mm 1550*880mm 1390*880mm 1390*880mm 1050*880mm 1050*300mm 1830*880mm 2180*880mm 1972*880mm 1550*710mm 1390*710mm 432*880mm 656*880mm 880*880mm TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 7/52...
  • Page 8 PART LIST Picture Part No. Specification 1104*880mm 1210*880mm 1104*880mm 880*880mm 656*880mm 432*880mm 692*880mm 916*880mm 1140*880mm 1364*880mm 1470*880mm 1364*880mm 1140*880mm 916*880mm 692*880mm 2968mm TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 8/52...
  • Page 9 PART LIST Picture Part No. Specification 2900mm 2090mm 1370mm 1890mm 2862mm 1851mm 2420mm 2484mm 773mm 719mm 924mm 502mm 369mm 1852mm 1900mm 1751mm TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 9/52...
  • Page 10 PART LIST Picture Part No. Specification 876mm 1000mm 1000mm 1924mm 1918mm 1500mm 600mm 2484mm 200mm 800mm 877mm 2010mm 828mm 1920mm 1920mm 876mm TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 10/52...
  • Page 11 PART LIST Picture Part No. Specification 1196mm 2619mm 2780mm 2025mm 932mm 1996mm 50*40*39 M5*20 2830 M5*50 155*18*24 35*0.5 75*75*25 28*24*16.5 M5*12 TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 11/52...
  • Page 12 PART LIST Picture Part No. Specification 172*57 63*43 M8*80 40*40*40 140*150 LOGO 295*190 TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 12/52...
  • Page 13 ANALYSIS DIAGRAM LOGO LOGO TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 13/52...
  • Page 14 ANALYSIS DIAGRAM TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 14/52...
  • Page 15 INSTALLATION OF FRAMEWORK PART PART TYPE A1 TIPS:Use labels to mark installed components for easy access. PART PART PART TYPE A2 TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 15/52...
  • Page 16 INSTALLATION OF FRAMEWORK PART PART PART PART TYPE A3 PART PART TYPE A4 TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 16/52...
  • Page 17 INSTALLATION OF FRAMEWORK PART PART TYPE A5L PART PART TYPE A5R www.tmgindustrial.com TOLL FREE: 1-877-761-2819 17/52...
  • Page 18 INSTALLATION OF FRAMEWORK PART PART TYPE A6R PART PART TYPE A6L X 4 TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 18/52...
  • Page 19 INSTALLATION OF FRAMEWORK PART PART PART X 20 TYPE A7 X 20 PART PART TYPE A8 TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 19/52...
  • Page 20 INSTALLATION OF FRAMEWORK PART PART TYPE A9 TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 20/52...
  • Page 21 INSTALLATION OF FRAMEWORK As shown in the figure draw a line before installation. PART PART PART Note: Please install the grounding part on the cement block near the column. BACK PART FRONT As shown in the figure, bend before installation. BACK FRONT www.tmgindustrial.com...
  • Page 22 INSTALLATION OF FRAMEWORK PART PART PART PART PART PART PART PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 22/52...
  • Page 23 INSTALLATION OF FRAMEWORK PART PART PART PART PART TIPS:If you want to change the door position to the opposite wall, please refer to page p48-49. PART PART PART As shown in the figure,when installing A3,support it with an object with a length of 2900mm to prevent it from falling and deformation other...
  • Page 24 INSTALLATION OF FRAMEWORK PART PART PART TIPS:Pay attention to the direction of the corner code. TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 24/52...
  • Page 25 INSTALLATION OF FRAMEWORK PART PART PART Note: please bend the 58 to a proper angle at the notch before installation. TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 25/52...
  • Page 26 INSTALLATION OF FRAMEWORK PART PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 26/52...
  • Page 27 INSTALLATION OF FRAMEWORK PART PART PART PART PART STEP ONE PART PART PART STEP TWO TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 27/52...
  • Page 28 INSTALLATION OF FRAMEWORK PART PART MS2525 STEP THREE TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 28/52...
  • Page 29 INSTALLATION OF FRAMEWORK PART PART PART PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 29/52...
  • Page 30 INSTALLATION OF FRAMEWORK PART PART PART PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 30/52...
  • Page 31 INSTALLATION OF FRAMEWORK PART PART As shown in the figure, M35 diagonal is used to fix every two spans of the row to increase the overall strength. During installation, fix one end of M35 on the column, tighten it from the top of the roof to the other side, and fix it on the column on the other side.
  • Page 32 INSTALLATION OF WALL TILE PART PART FRONT BACK PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 32/52...
  • Page 33 INSTALLATION OF WALL TILE PART PART PART PART PART PART PART Tips: The size of every three tiles is 2484mm, please pay attention to control the size when installing. www.tmgindustrial.com TOLL FREE: 1-877-761-2819 33/52...
  • Page 34 INSTALLATION OF WALL TILE PART PART Install 2 here. PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 34/52...
  • Page 35 INSTALLATION OF WALL TILE PART PART PART PART PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 35/52...
  • Page 36 INSTALLATION OF WALL TILE PART PART PART PART PART PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 36/52...
  • Page 37 INSTALLATION OF WALL TILE PART PART PART PART PART PART PART PART www.tmgindustrial.com 37/52 TOLL FREE: 1-877-761-2819...
  • Page 38 INSTALLATION OF WALL TILE PART PART TIPS:To install transparent panels, please refer to page 50. As shown in the figure, the four PART PART PART corners of the house are fixed with screws S12. TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 38/52...
  • Page 39 INSTALLATION OF WALL TILE PART PART PART As shown in the figure, first stick a layer of waterproof tape at the joint of the two panels,and then install the ridge. PART PART PART PART www.tmgindustrial.com 39/52 TOLL FREE: 1-877-761-2819...
  • Page 40 INSTALLATION OF WALL TILE PART PART PART PART LOGO LOGO TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 40/52...
  • Page 41 INSTALLATION OF WALL TILE PART PART PART PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 41/52...
  • Page 42 INSTALLATION OF SIDE DOOR STEP 1. STEP 2. PART PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 42/52...
  • Page 43 INSTALLATION OF SIDE DOOR PART PART STEP 3. Cap all S3 tips with L3. STEP 4. TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 43/52...
  • Page 44 INSTALLATION OF SIDE DOOR PART PART TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 44/52...
  • Page 45 ASSEMBLY OF ROLLER DOOR OPTIONAL ASSEMBLY OF THE DOOR MAY REQUIRE THE FOLLOWING PARTS TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 45/52...
  • Page 46 ASSEMBLY OF ROLLER DOOR www.tmgindustrial.com TOLL FREE: 1-877-761-2819 46/52...
  • Page 47 ASSEMBLY OF ROLLER DOOR RETRACTABLE TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 47/52...
  • Page 48 ASSEMBLY OF ROLLER DOOR ATTENTION: CUT OFF THE POWER BEFORE firing line OPERATION ! null line ground electrode POWER-ON, THEN CONTROL THE REMOTE CONTROL, SLOWLY INSERT THE ROLLER DOOR INTO GR1 AND GR2. TOLL FREE: 1-877-761-2819 www.tmgindustrial.com 48/52...
  • Page 49 ASSEMBLY OF ROLLER DOOR 1. ADJUST THE LOWER LIMIT Assume that C is the direction in which the roller door goes down. Press the downward button on the remote control, the roller door goes down. If the electrical machine stops rotating when it reaches the position in picture D, adjust A to rotate in the direction of until the roller door is parallel to the ground.
  • Page 50 INSTALLATION OF FRAMEWORK PART PART PART PART PART Tip: After this step, please go back to page 21 to PART PART PART PART continue the installation. www.tmgindustrial.com TOLL FREE: 1-877-761-2819 50/52...
  • Page 51 INSTALLATION OF FRAMEWORK PART PART PART PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 51/52...
  • Page 52 INSTALLATION OF TRANSPARENT PANEL Correct Demonstration transparent panel with 1830mm length transparent panel with 2180mm length The blank space is where the transparent panels are installed. Please install them according to the correct position. The two transparent panels are stacked together. Incorrect installation will cause water leakage.
