TMG -MS0506 Product Manual

5' x 6' apex roof pro-series metal shed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

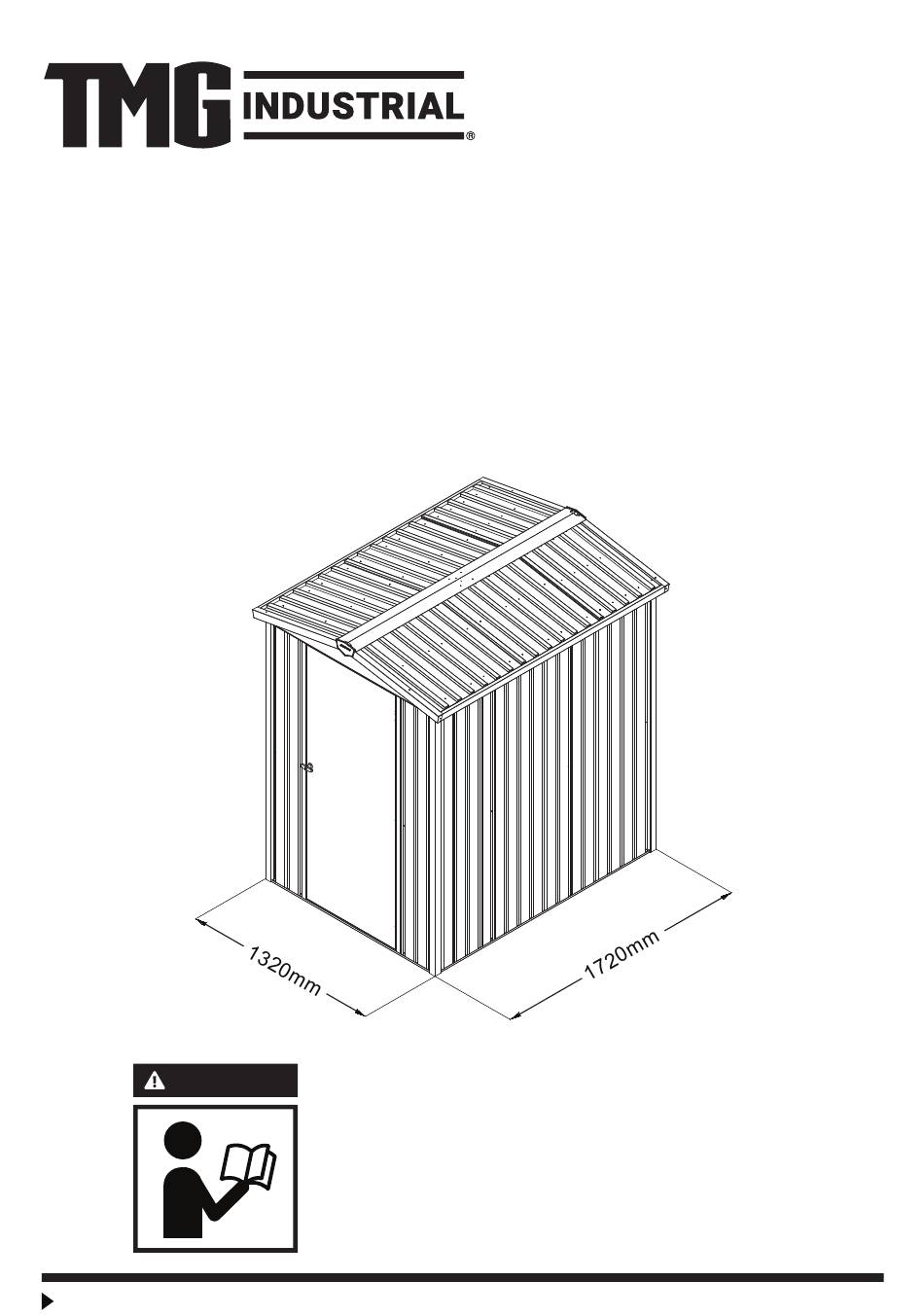

5 x 6 APEX ROOF
PRO-SERIES METAL SHED
WARNING
www.tmgindustrial.com
'
'
This structure is intended for temporary outdoor storage use only. It is not designed to
withstand heavy snow and wind loads and does not come with engineering drawings.
To ensure suitable for your specific weather needs, it is your responsibility to verify
their appropriateness for your intended use and local weather conditions, especially in
areas prone to severe weather.
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
TMG-MS0506
PRODUCT MANUAL
TOLL FREE: 1-877-761-2819
