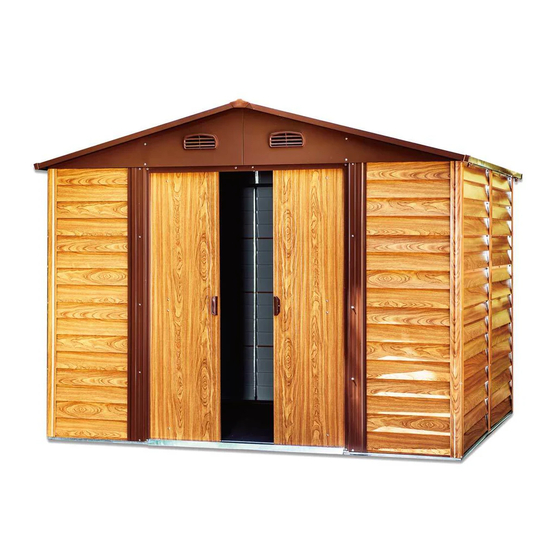

11 x 12 WOOD-GRAIN
'
www.tmgindustrial.com
'
METAL SHED
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
TMG-MS1112
PRODUCT MANUAL
v.2023.3.24
TOLL FREE: 1-877-761-2819
Advertisement
Related Manuals for TMG TMG-MS1112
Summary of Contents for TMG TMG-MS1112

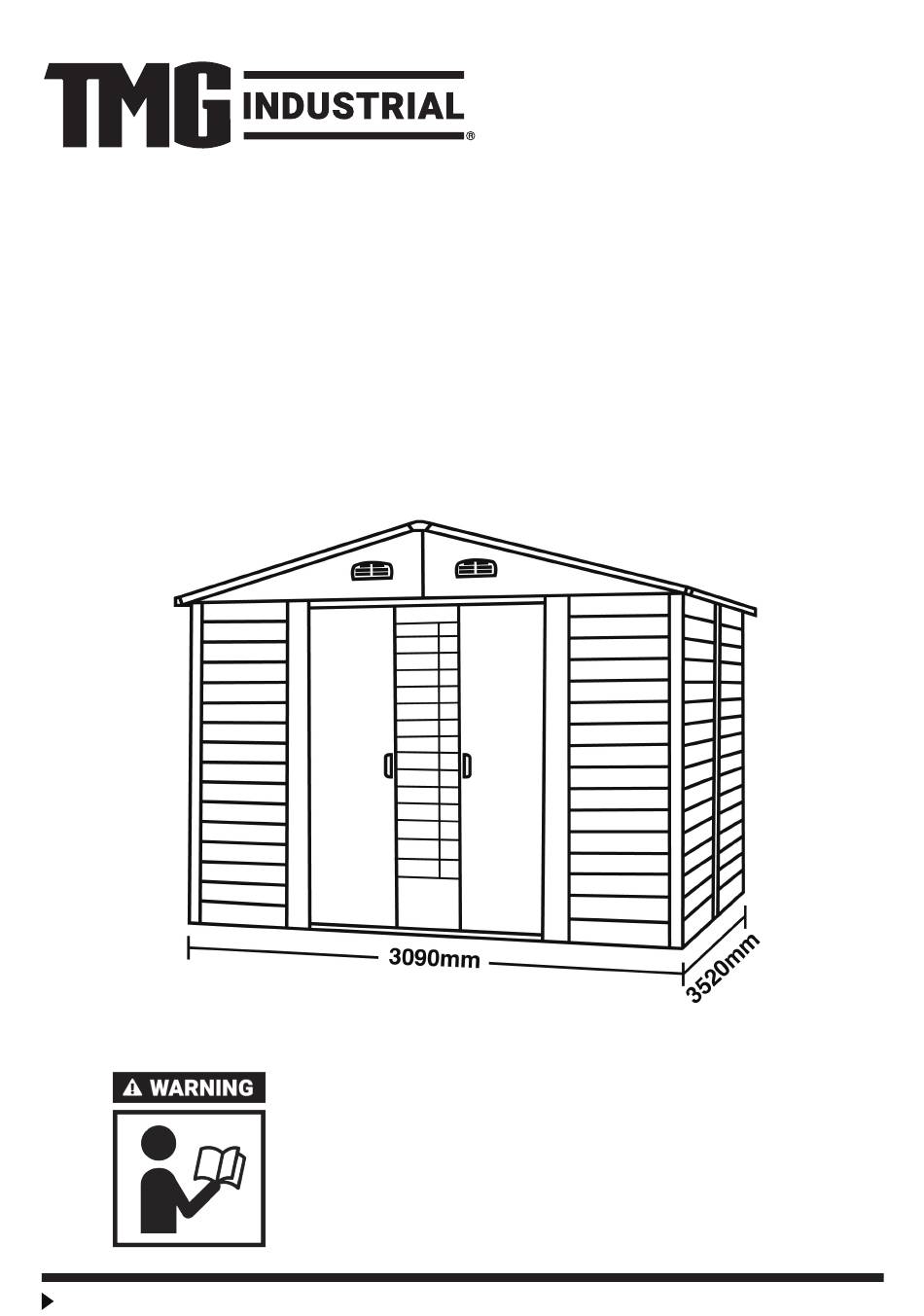

- Page 1 TMG-MS1112 PRODUCT MANUAL v.2023.3.24 11 x 12 WOOD-GRAIN METAL SHED • Please read and understand the product manual completely before assembly • Check against the parts list to make sure all parts are received • Wear proper safety goggles or other protective gears while in assembly •...
- Page 2 BEFORE YOU START Owner's Manual Prior to installation, it is important that you contact your local government authority to determine if building approval is required. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable.
- Page 3 PLAN AHEAD Site Selection Avoid overhanging trees as much as possible as leaves will make regular cleaning necessary and broken branches are a potential hazard. Small trees,bushes or fences nearby can be helpful,acting as a wind break. Site Preparation The site must be prepared so that the base of the shed is level all round and checking with a spirit level is required.
- Page 4 Qty. Qty. PART PART 16-1 1800mm 1933mm 1586mm 1620mm 1002mm 676mm 1002mm 1837mm 1728mm 1571mm 1728mm 1259mm 1304mm 1728mm 1522mm 1728mm 1522mm 1728mm 1788mm 1728mm 1837mm 1728mm 1837mm 1804.5mm 1804.5mm 356mm 1728mm 420mm 420mm 217mm 217mm 1933mm www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 5 Qty. Qty. PART PART 1689mm 1475mm 786mm 1720X680mm 1648mm 1648mm 1648mm 1648mm 1720X680mm 1648mm www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 6 www.tmgindustrial.com TOLL FREE: 1-877-761-2819 6/26...
- Page 7 Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 7/26...
- Page 8 Qty. PART Qty. PART 、 When diagonal measurements are equal,the frame is square. 、 The Floor Frame must be BOTH square AND level or the holes will not line up properly. www.tmgindustrial.com TOLL FREE: 1-877-761-2819 8/26...
- Page 9 PART Qty. Pay attention to dumping Need a person or a shelf to support. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 9/26...
- Page 10 PART Qty. Pay attention to dumping Need a person or a shelf to support. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 10/26...
- Page 11 PART Qty. Pay attention to dumping Need a person or a shelf to support. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 12 PART Qty. Pay attention to dumping Need a person or a shelf to support. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 13 PART Qty. Pay attention to dumping Need a person or a shelf to support. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 14 PART Qty. Pay attention to dumping Need a person or a shelf to support. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 15 PART Qty. Pay attention to dumping Need a person or a shelf to support. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 16 PART Qty. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 16/26...
- Page 17 PART Qty. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 17/26...
- Page 18 PART Qty. Qty. Qty. PART PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 18/26...
- Page 19 PART Qty. Qty. PART 7L&7R www.tmgindustrial.com TOLL FREE: 1-877-761-2819 19/26...
- Page 20 PART Qty. 16-1 16-1 16-1 Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 20/26...
- Page 21 Ⅱ Ⅰ Ⅱ Ⅰ Ⅰ Ⅱ Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 22 PART Qty. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 22/26...
- Page 23 PART Qty. Qty. PART Qty. PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 24 PART Qty. Qty. PART Ⅰ Ⅰ Ⅱ Ⅱ Ⅰ Qty. Qty. PART PART www.tmgindustrial.com TOLL FREE: 1-877-761-2819 24/26...
- Page 25 PART Qty. Ⅰ Ⅱ Ⅰ Ⅰ Ⅱ Ⅰ Ⅰ Ⅱ Qty. PART D1&D2 Qty. PART D1&D2 www.tmgindustrial.com TOLL FREE: 1-877-761-2819 25/26...
- Page 26 Qty. PART 7R&7L www.tmgindustrial.com TOLL FREE: 1-877-761-2819 26/26...
