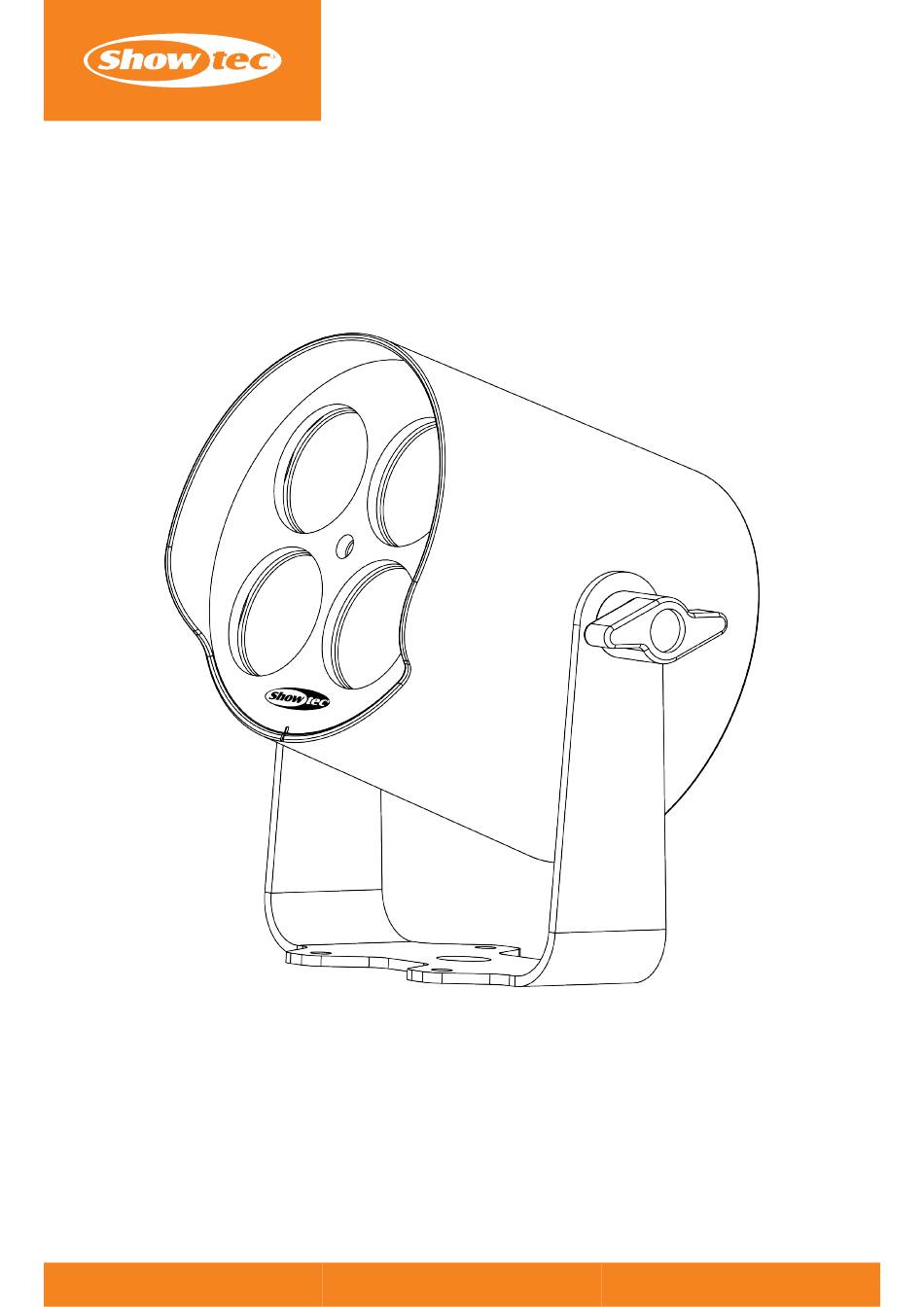

- Page 1 USER MANUAL ENGLISH V1.0 EventLITE 4/8 Mini Q6 IP65 Product code: 44083 / 44084 Black / White...
- Page 2 EventLITE 4/8 Mini Q6 IP65 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
EventLITE 4/8 Mini Q6 IP65 Table of contents 1. Introduction ............................ - Page 4 EventLITE 4/8 Mini Q6 IP65 7.1.1. Basic Cleaning Instructions .....................
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Showtec EventLITE 4/8 Mini Q6 IP65 • • AC Power adapter (1,1 m) • •... -
Page 6: Symbols And Signal Words
EventLITE 4/8 Mini Q6 IP65 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 7: Safety
EventLITE 4/8 Mini Q6 IP65 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. - Page 8 EventLITE 4/8 Mini Q6 IP65 Attention Incorrect handling of the AC power adapter may result in hazardous situations. This device is delivered with an AC power adapter. Incorrect handling of the AC power adapter may result in hazardous situations. •...
-
Page 9: Requirements For The User
EventLITE 4/8 Mini Q6 IP65 Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP65 rated. IP (Ingress Protection) 65 class means that the device is dust-tight and protected against harmful effect of water jets. -
Page 10: Description Of The Device
The Showtec EventLITE 4/8 Mini Q6 IP65 is a battery-powered RGBWAUV spot in an IP65-rated aluminum housing for mobile use and outdoor applications. The EventLITE 4/8 Mini Q6 IP65 is compact, easy to transport, and lightweight. It includes several presets and sound-activated programs, and can be controlled through the display and buttons on the back or by the included IR remote controller. -
Page 11: Product Specifications
EventLITE 4/8 Mini Q6 IP65 3.3. Product Specifications Model: EventLITE 4/8 Mini Q6 IP65 Source: Light source type LED Light source quantity 4 Light source power 7 W LED color type RGBWAUV Luminous flux (total) 290 lm Optical: Beam angle (circular) 20°... -
Page 12: Dimensions
Optional Accessories There is a hard plastic case available for this product. It has pre-formed foam interior and can accommodate up to 6 devices EventLITE 4/8 Mini Q6 IP65. Contact your Highlite International dealer for more information. Product code: 44081... -
Page 13: Installation
EventLITE 4/8 Mini Q6 IP65 Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 14: Installation With A Clamp
EventLITE 4/8 Mini Q6 IP65 4.4.2. Installation with a Clamp 01) Use a clamp to attach the device to the supporting structure. 02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device. -
Page 15: Charging The Battery
EventLITE 4/8 Mini Q6 IP65 4.5. Charging the Battery DANGER Risk of explosion caused by incorrect handling This device contains a built-in rechargeable lithium-ion battery. The battery is not replaceable. The battery may explode or cause burns if it is crushed, disassembled or exposed to fire or high temperatures. -
Page 16: Setup And Operation
EventLITE 4/8 Mini Q6 IP65 Setup and Operation Attention This device is IP65 rated. • • Do not expose the device to conditions that exceed the rated IP class conditions. • • Keep the connectors sealed with the rubber caps when the connectors are not in use. -
Page 17: Start-Up
When the display shows the battery state of charge, press any button to return to the main menu. The display shows the current operation mode. 5.4. Control Modes The EventLITE 4/8 Mini Q6 IP65 can be controlled manually (see 5.5. Manual Control on page 17) and with an IR remote control (see 5.6. -
Page 18: Manual Control
EventLITE 4/8 Mini Q6 IP65 5.5. Manual Control 5.5.1. Menu Overview Level 1 Level 2 Level 3 Level 4 Auto (see 5.5.2.1. Auto Mode on page 18) Program 01 Color 00–16 Strobe 00–99 Program (see 5.5.2.2. Built-in Programs on page 18) Program 02–16... -
Page 19: Auto Mode
EventLITE 4/8 Mini Q6 IP65 5.5.2.1. Auto Mode In this menu you can activate auto-run mode. Press the SET button to select auto mode. The device runs the built-in programs in a sequence. 5.5.2.2. Built-in Programs In this menu you can select a preset color or a built-in program. -
Page 20: Dimming Mode
EventLITE 4/8 Mini Q6 IP65 5.5.2.3. Dimming Mode In this menu you can adjust the color intensity for each LED individually and create custom colors. 01) Press the SET button to select one of the 6 options: red, green, blue, white, amber, and UV. -
Page 21: Temperature
EventLITE 4/8 Mini Q6 IP65 5.5.2.6.1. Temperature This submenu shows the temperature of the LEDs and if there are any errors: The temperature is in the normal range. There is a temperature error. Contact your Highlite International dealer, if the information screen show this value. -
Page 22: Functions Of The Remote Control Buttons
EventLITE 4/8 Mini Q6 IP65 5.6.2. Functions of the Remote Control Buttons The buttons of the remote control have the following functions: Button Description Function Activates the red LEDs Green Activates the green LEDs Blue Activates the blue LEDs Amber... -
Page 23: Remote Control Operation
EventLITE 4/8 Mini Q6 IP65 5.6.3. Remote Control Operation When you control the device with the IR remote control, the following operation modes are possible: • • Auto mode • • Built-in programs • • Static colors • • Dimming mode With the IR remote control you can also: •... -
Page 24: Strobe
EventLITE 4/8 Mini Q6 IP65 5.6.3.6. Strobe You can add strobe effect: • • to the built-in programs • • to the static colors, and • • in dimming mode. To add strobe effect: 01) Press the STROBE button. 02) Press the PLUS/MINUS buttons to increase or decrease the strobe frequency. The adjustment range is 0–... -
Page 25: Troubleshooting
EventLITE 4/8 Mini Q6 IP65 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. - Page 26 There is a hard plastic case available for this product (see 3.5. Optional Accessories on page 11). It has pre- formed foam interior and can accommodate up to 6 devices EventLITE 4/8 Mini Q6 IP65. You can use this case to transport the device. Product code: 44083 / 44084...
- Page 27 There is a hard plastic case available for this product (see 3.5. Optional Accessories on page 11). It has pre- formed foam interior and can accommodate up to 6 devices EventLITE 4/8 Mini Q6 IP65. You can use this case to store the device. Disposal This device contains a lithium-ion battery.
