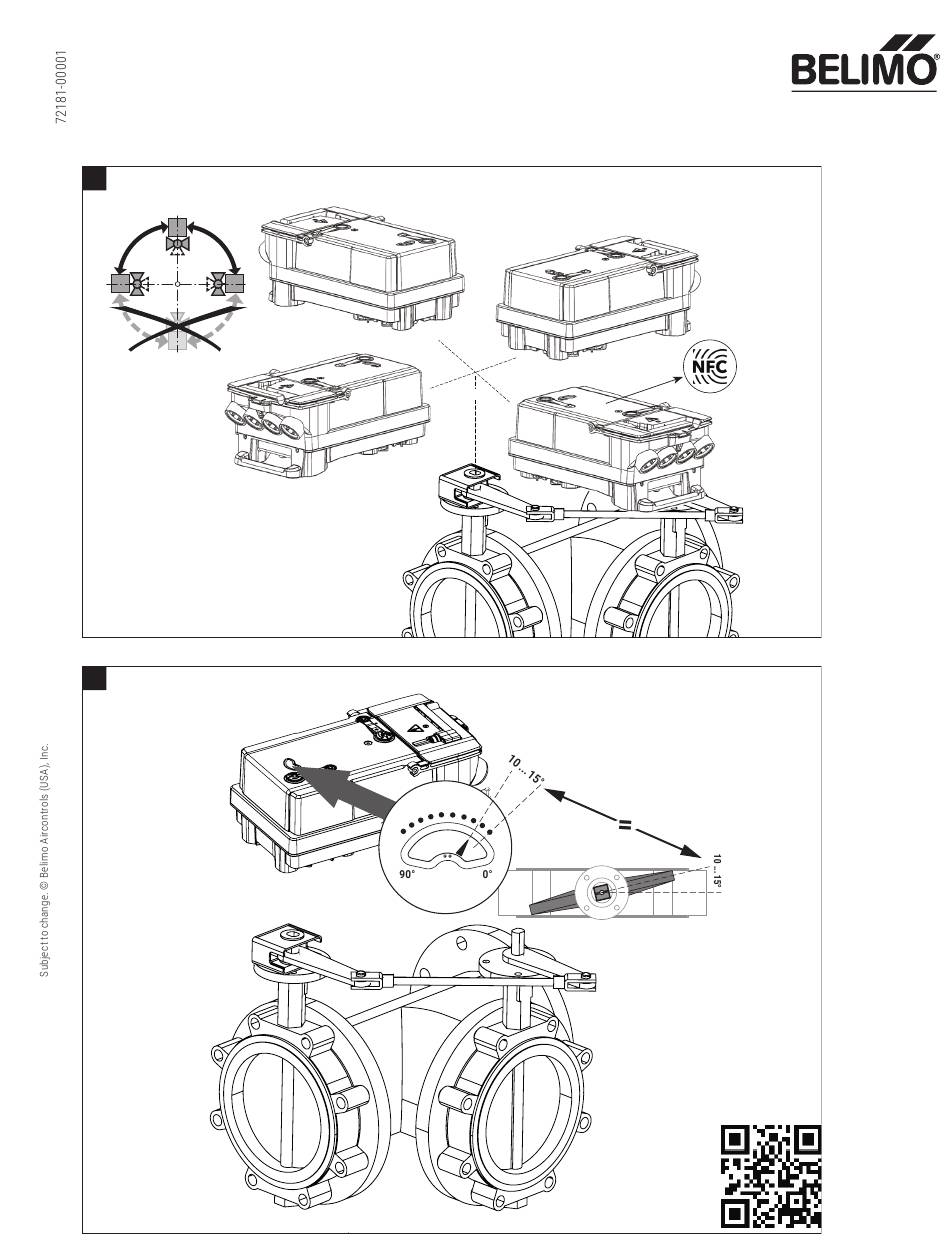

- Page 1 QUICK MOUNT VISUAL INSTRUCTION MANUAL JR Actuators with 3-Way Butterfly Valves 90° 90° 90° 90° 90° 90° *NFC default "Enabled" unless otherwise noted www.belimo.eu/safety...
- Page 2 QUICK MOUNT VISUAL INSTRUCTION MANUAL JR Actuators with 3-Way Butterfly Valves www.belimo.eu/safety www.belimo.com JR(K)CA-(BAC-)S2-T • 2023-08 225 in-lb...
- Page 3 QUICK MOUNT VISUAL INSTRUCTION MANUAL JR Actuators with 3-Way Butterfly Valves IP66 IP67 NEMA 4X 9 in-lb IP66 IP67 Auxiliary switch JR(K)CA-(BAC-)S2-T IP66 IP67 IP66 IP67...
-
Page 4: Auxiliary Switch
IP66 IP67 QUICK MOUNT VISUAL INSTRUCTION MANUAL JR Actuators with 3-way Butterfly Valves IP66 IP67 BELIMO 6...12 mm 0.5 Nm 0.5 Nm Power Power 5 Nm For NPT adapter, suitable UL listed, 1/2" conduit fitting shall be used in accordance with NFPA 70 and rated for the environmental conditions of the product. -
Page 5: Wiring Diagrams
U5/MP 0 - 10 VDC **Control type, direction and fail position changes can be On/Off VDC / 4 to 20 mA made via Belimo Selection Tools, i.e. ZTH, PC-Tool and App. 24 to 240 VAC 24 to 125 VDC Power... -
Page 6: Commissioning Support
QUICK MOUNT VISUAL INSTRUCTION MANUAL JR Actuators with 3-way Butterfly Valves JR(K)CA-(BAC-)S2-T max. flow velocity 4 m/s Available on the App Store GE T IT ON Commissioning Support Select Application 2-Way A-AB A-AB 2-Way Open-Close 3-Way Changeover Open-Close Butterfly Valve...
