MC160 Series PLC User Quick Start Manual
Thank you for using MC160 series PLC. Before using the product, please
carefully read this manual so as to better understand it, fully use it, and ensure
safety. This quick start manual is to offer you a quick guide to the design,
installation, connection and maintenance of MC160 series PLC, convenient for
on-site reference.
This manual is for the following series members:
MC160-0806BTD1-2
MC160-1206BTD1-2
MC160-0806BTD7-2
MC160-1214BMD1-2
MC160-1414BTD1-2
MC160X-0806BTD1-2
MC160X-1206BTD1-2
MC160X-0806BTD7-2
MC160X-1214BMD1-2
MC160X-1414BTD1-2
Version：A03
Revision Date：2021-04-27
BOM Code：R33010568

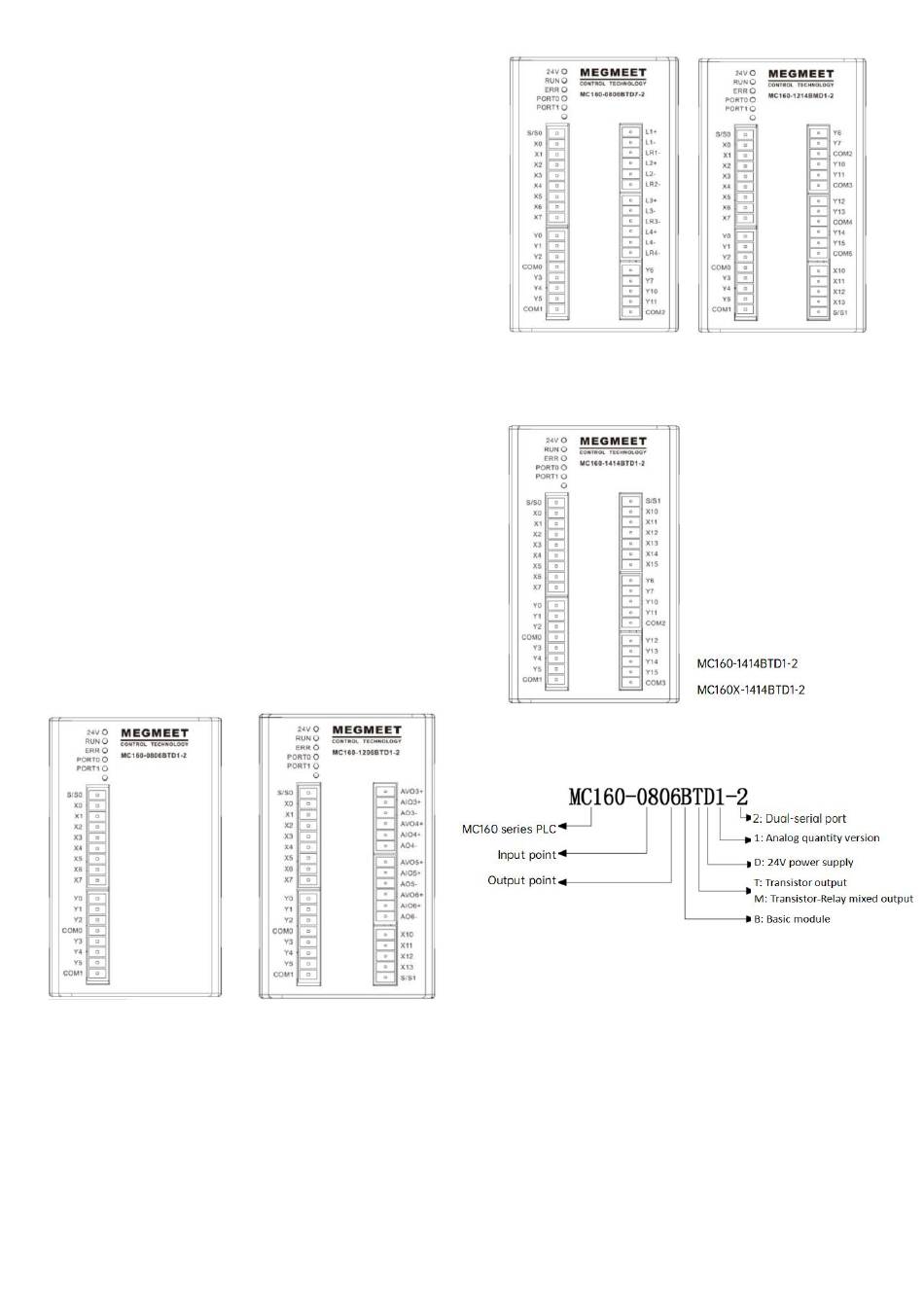

1. Appearance and Part Name
MC160-0806BTD1-2
MC160X-0806BTD1-2
MC160-1206BTD1-2
MC160X-1206BTD1-2
MC160-1214BTD7-2
MC160X-1214BTD7-2
2. Model
3. Installation Description
3.1 Environmental Temperature
Temperature range for PLC usage：-5℃~55℃.
Humidity: <85%RH, no condensation
A well-ventilated place should be selected when the ambient
temperature exceeds 55° C for a long time.
3.2 Installation Site
◆ Place without corrosion, flammable and explosive gas and liquid.
◆
Solid place without vibration.
◆
This controller is designed for II standard installation environment and
2-level pollution occasions.
MC160-1214BMD1-2
MC160X-1214BMD1-2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Megmeet MC160 Series
Summary of Contents for Megmeet MC160 Series
- Page 1 MC160 Series PLC User Quick Start Manual Thank you for using MC160 series PLC. Before using the product, please carefully read this manual so as to better understand it, fully use it, and ensure safety. This quick start manual is to offer you a quick guide to the design, installation, connection and maintenance of MC160 series PLC, convenient for on-site reference.
- Page 2 3.3 Installation Method The PLC must be installed horizontally on the backplane of the electrical cabinet, and maintain a distance of more than 20cm from the peripheral equipment or cabinet wall. The installation in other directions is not conducive to the PLC heat dissipation, and there can be no heating equipment under the PLC.
-
Page 3: Terminal Description
Note: AIO2+ and AIO1+ only support current output, so that a parallel resistor is necessary for the voltage output need. × R=V(max)/20MA √ MC160(X)-0806BTD1-2 terminal definition Remark Description 24V+, 24V- Input power 24Vdc 4. Power Consumption Item Unit Min. Rated Max. - Page 4 5.2 Communication Interface Y0~Y3, COM0 Switch quantity output CH0~3, output common port 0 Y4~Y5, COM1 Switch quantity output CH4~5, output common port 1 Name Supported protocol Location Physical layer Communication COM0 AVI1+, AVI2+, AVI3+, Analog quantity input CH1~4 ModBus (slave) RS485 port 0 (485+, 485-)
- Page 5 6.2 Output Characteristic and Signal Specification Max. switch voltage 250VAC/30VDC The output terminals of MC160 series PLC are composed of several Max. switch current groups, which are electrically isolated each other, and the output contacts of Max. switch power 1250VA/150W different groups are connected to different power circuits;...
- Page 6 1. It is recommended to use a shielded twisted-pair cable for analog input. 1~100, Unit:0.1s Fast speed The cable should be far away from power cable or other cables that may Depends on the characteristics of the temperature control object generate electrical power interference.
- Page 7 Notice 1. The warranty range is confined to the PLC only. 2. Warranty period is 18 months, within which period Megmeet conducts free maintenance and repairing to the PLC that has any fault or damage under the normal operation conditions.
