Salto Conlan CT1000 v2 with Tamper Installation Manual

Hide thumbs Also See for Conlan CT1000 v2 with Tamper:

Download this manual

Installation guide

Eng

Installationsvejledning

4 x PZ1

1N4007

Plastic Hat

Tamper

Spring v2

Front label

(self adhesive)

All contents current at time of publication.

CONLAN ApS reserves the right to change availability of any

item in this catalog, its design, construction, and/or materials.

50.3

Reader unit

Steel screws

2024 CONLAN ApS

CT1000 v2 with Tamper

2500

Tamper

Spring

Tamper Holder

CT1000v2withTamper -ED0 -07/2024

1/3

Need help?

Do you have a question about the Conlan CT1000 v2 with Tamper and is the answer not in the manual?

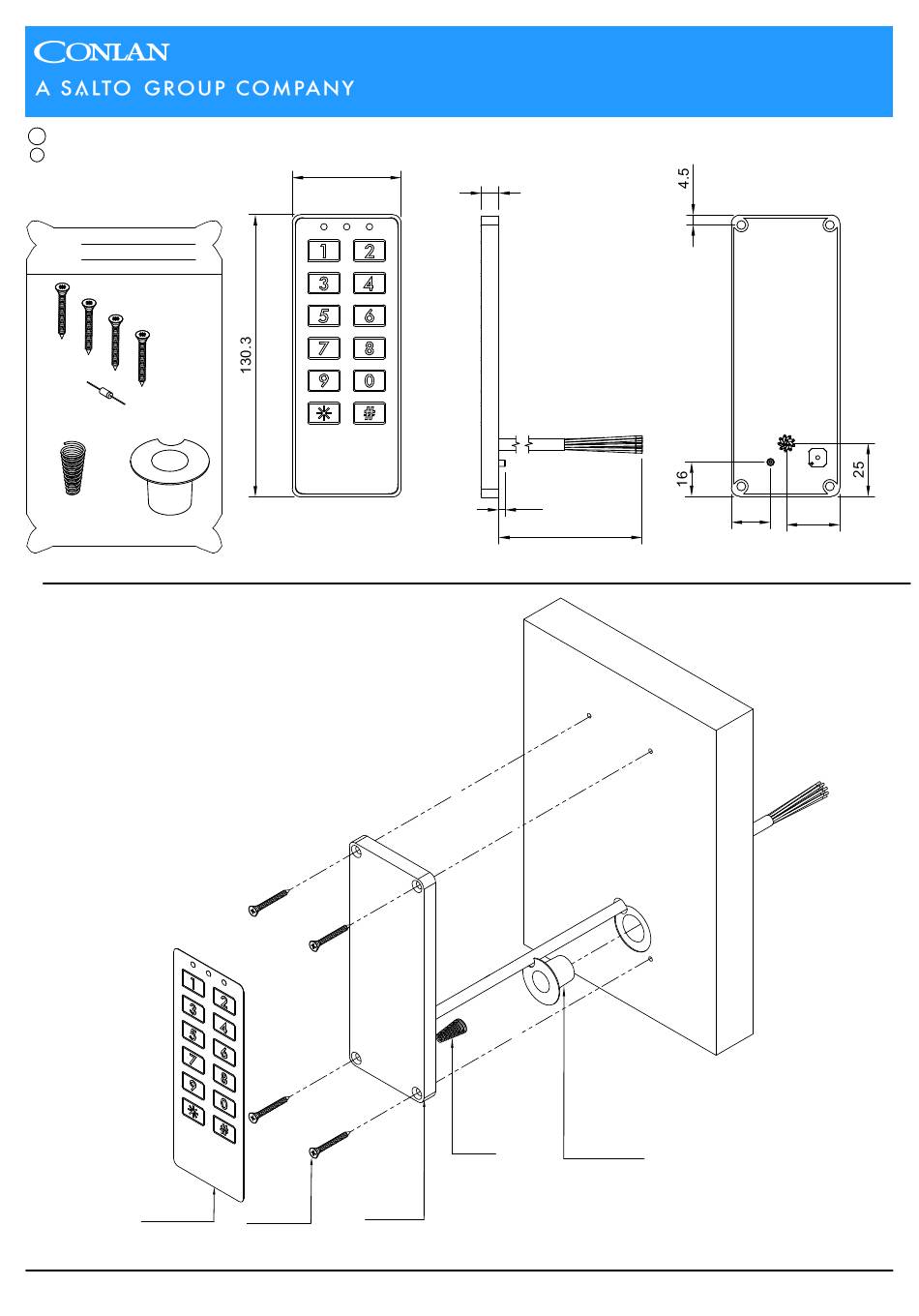

Page 1 CT1000 v2 with Tamper Installation guide Installationsvejledning 50.3 4 x PZ1 1N4007 Plastic Hat Tamper Spring v2 2500 Tamper Spring Tamper Holder Front label Reader unit (self adhesive) Steel screws CT1000v2withTamper -ED0 -07/2024 All contents current at time of publication. CONLAN ApS reserves the right to change availability of any ©...
Page 2 CT1000 v2 with Tamper Installation Installation 25 mm [1"] deep hole. Hul 25 mm dybt. Ø Ø 7/32") Ø 14.7 Ø 37/64") Stick the label on the front of the device. Sæt etiketten på forsiden af enheden. Kabelforbindelser Use a PZ1 screwdriver. Bruge en PZ1 skruetrækker.
Page 3 CT1000 v2 with Tamper Wiring Kabelforbindelser Cable color Function Power +, 9 to 24 VDC, ~45mA Power -, GND Output 1, Open Collector, active LOW (GND) Output 2, Open Collector, active LOW (GND) Input, exGreen, activates/disactivates Green LED, active LOW (GND) Input, exRed, activates/disactivates red LED, active LOW (GND) Input, exBuzzer activates/disactivates Buzzer, active LOW (GND) Input, REX, Request of Exit, active LOW (GND)
