Salto Ai6 Series Installation Manual

Installation guide
Eng
Guide d'installation
F
Guía de instalación
E
11
Eng
Mortise Lock not
Serrure à mortaiser
F
non incluse
Cerradura de
E
embutir no incluida
Eng
1
Tubular or cylindrical latch
Serrure tubulaire ou
F
cylindrique non inclus
Picaporte tubular o
E
cilindrico no incluido
1
Eng (*) Only for door thickness > 2-3/8" (60mm).
(*) Seulement pour portes de épaisseur > 2-3/8" (60mm).
F
(*) Solo para grosor de puerta > 2-3/8" (60mm).
E
Eng
SALTO recommends the use of a mortise lock, with a maximum 4º pre-turn.
SALTO recommande d'utiliser des serrures à mortaiser avec un angle au repos de 4° maximum.
F
SALTO recomienda utilizar cerraduras con un pregiro máximo de 4º.
E
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
Installation guide
2

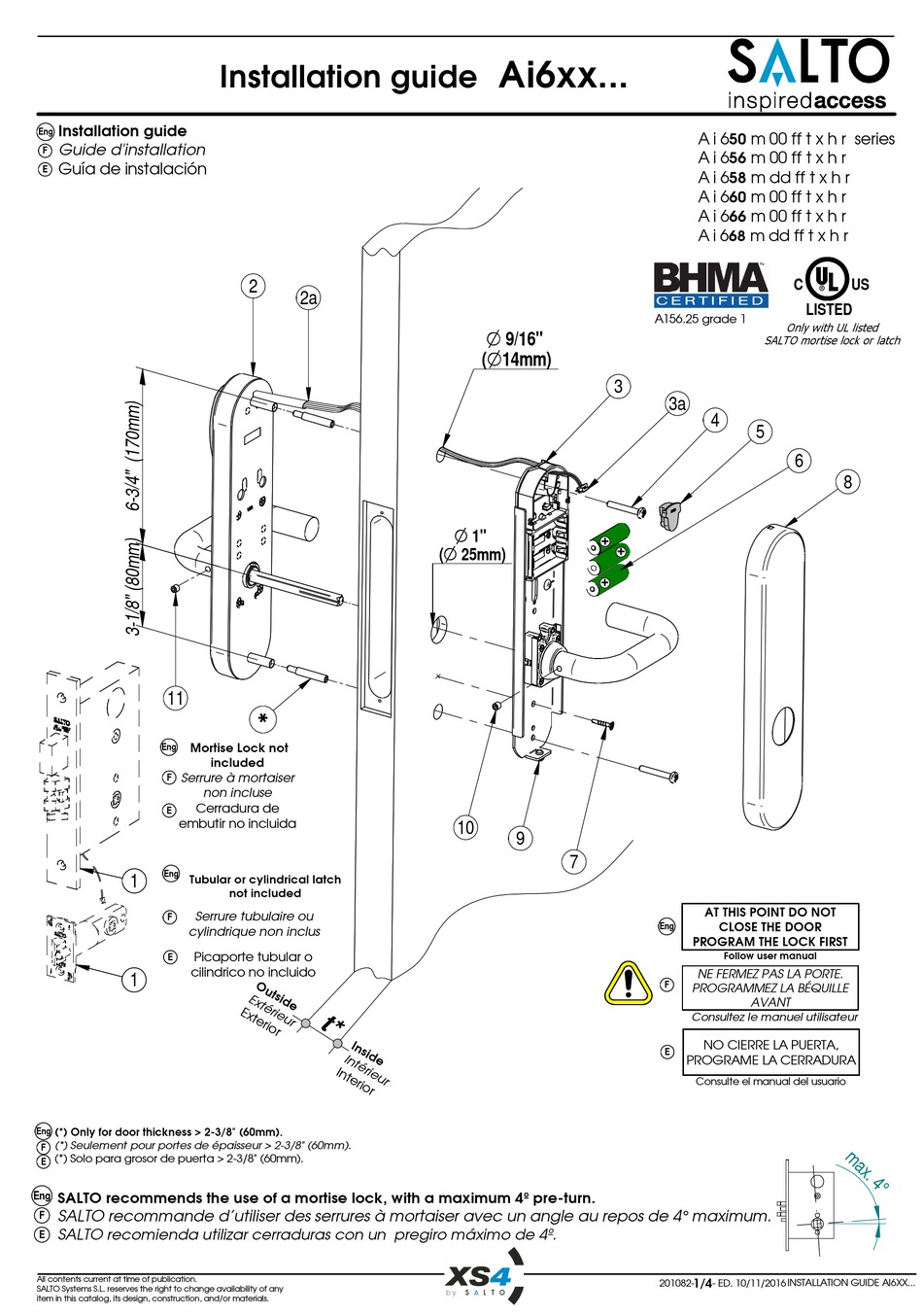

2a
*
included
not included
Ai6xx...
O
9/16"
O
( 14mm)
O
1"
+
O
( 25mm)
+
10
9
7
A i 6 m 00 ff t x h r series
50
A i 6 m 00 ff t x h r
56
A i 6 m dd ff t x h r
58
A i 6 m 00 ff t x h r
60
A i 6 m 00 ff t x h r
66
A i 6 m dd ff t x h r
68
A 156.25 grade 1
Only with UL listed
SALTO mortise lock or latch
3
3a
4
5
+
AT THIS POINT DO NOT
Eng CLOSE THE DOOR
PROGRAM THE LOCK FIRST
Follow user manual
NE FERMEZ PAS LA PORTE.
F PROGRAMMEZ LA BÉQUILLE
AVANT
Consultez le manuel utilisateur
NO CIERRE LA PUERTA,
E
PROGRAME LA CERRADURA
Consulte el manual del usuario
INSTALLATION GUIDE AI6XX...
201082- - ED. 10/11/2016
1/4
