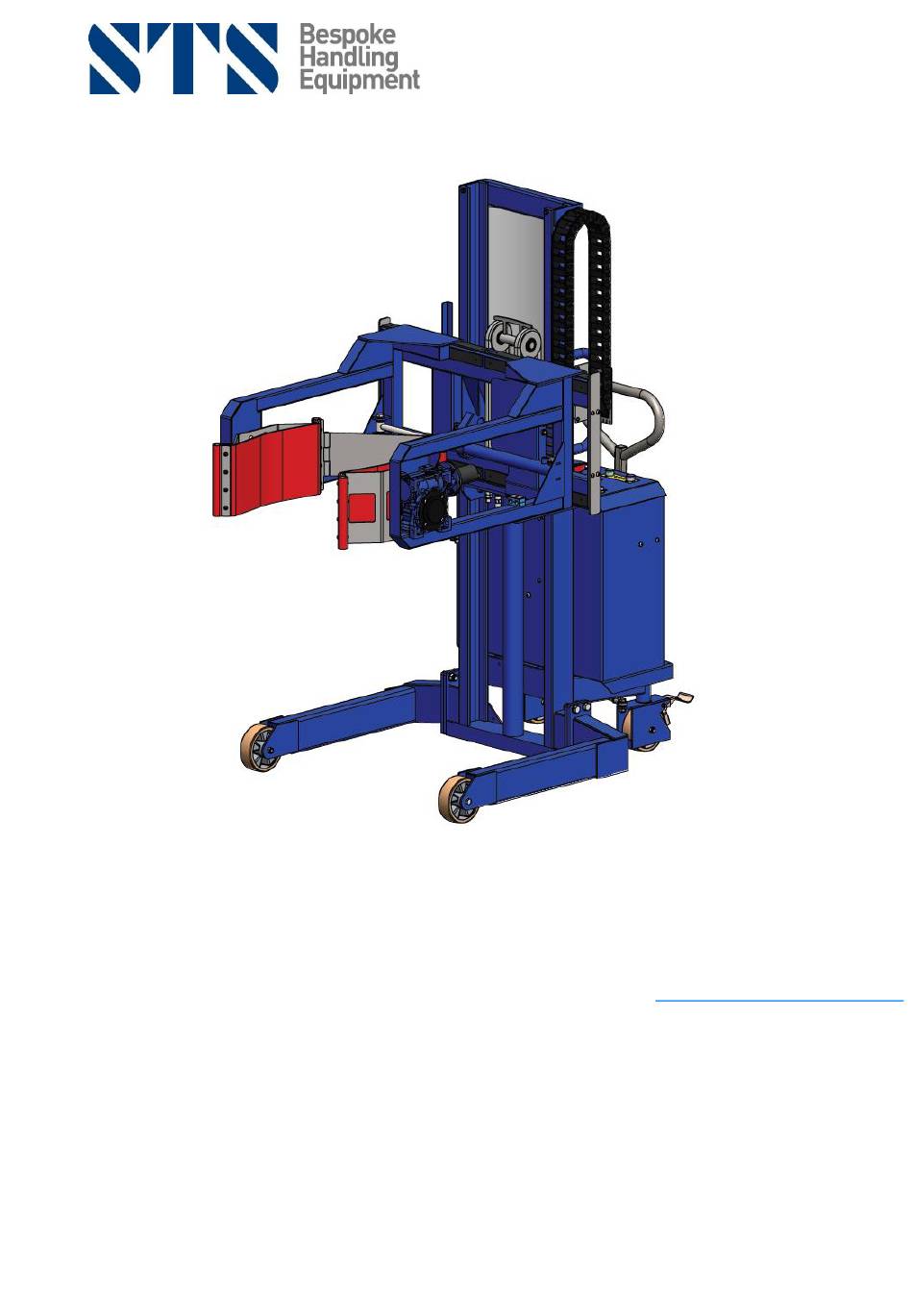

- Page 1 Operating Instructions STE01-RRH01 Electric Stacker with Powered Clamp and Rotating Head Bespoke Handling Equipment Ltd. E-mail: sales@sts-trolleys.co.uk Leedstown Tel: +44 (0)1736 851050 Hayle Website: www.sts-trolleys.co.uk Cornwall United Kingdom TR27 6DS...
-
Page 2: Table Of Contents
General Arrangement ..............................27 Section VI - Decommissioning the Unit .................... 28 Prior to Decommissioning ..............................28 Final Decommissioning and Disposal ..........................28 Recommissioning ................................28 Safety Tests to be Performed at Intervals and After Unusual Incidents................. 28 Operating Instructions: STE01-RRH01... -
Page 3: Section I - Correct Use And Application
Operation in accordance with guidance stated within the operating instructions. • The unit must be maintained in accordance with the maintenance schedule stated within the operating instructions. • Appropriate personal protective equipment, PPE, must be worn at all times. Operating Instructions: STE01-RRH01... -
Page 4: Proprietor Responsibilities
An onsite risk assessment must then be carried out. WARNING - ANY UNAUTHORISED MODIFICATIONS OR ADDITIONS TO THE UNIT SHALL INVALIDATE THE WARRANTY AND STS SHALL NOT BE LIABLE. Safety Regulations for the Operation of the Unit Operator authorisation... - Page 5 Servicing and repairs All unit parts and consumables are available from STS. The unit must be fitted with original STS parts and consumables unless otherwise stated. Any deviation from non - original parts and consumables may result in injury to personnel or damage to the unit and will invalidate the warranty.
-
Page 6: Consumables And Parts
Earthing chains Ensure earthing chains are securely fitted and are in contact with the ground at all times, wheels should be kept clean and free from debris. Operating Instructions: STE01-RRH01... -
Page 7: Lifting The Unit
• Use only tension belts or tie-down straps with sufficient strength. WARNING - IMPROPER FASTENING OF THE UNIT DURING TRANSPORT CAN RESULT IN SERIOUS ACCIDENTS IMPORTANT After use, remove supplied lifting strop(s) and/or dee shackles and dispose. Operating Instructions: STE01-RRH01... -
Page 8: Unit Overview
Unit Overview Lifting Points Note: Generic unit shown Function Steering Control Box Brakes Wheels Legs Clamping Band Head Lifting Chains Chassis Polycarbonate Guarding Operating Instructions: STE01-RRH01... -
Page 9: Permitted Operating Zones
Rear of Unit Front of Unit Note: Generic unit shown Area 1 Area 2 WARNING - DO NOT STAND UNDERNEATH A RAISED LOAD, WITHIN THE CONFINES OF THE UNIT OR IN FRONT OF THE UNIT DURING OPERATION. Operating Instructions: STE01-RRH01... -
Page 10: Section Ii - Unit Description
Section II – Unit Description The STE01-RRH01 is a four-wheeled pedestrian stacker with lifting, drum clamping and rotate functions. The unit is electric-hydraulic powered. It is designed for use on level surfaces for use with drums ranging from 50 - 220 litres, steel or plastic drums with a diameter of between 280mm - 610mm. -
Page 11: Section Iii - Unit Operation
(see consumables). Check stainless-steel guards for damage. OPERATORS SHOULD REPORT ANY DEFECTS ON THE UNIT TO THE APPROPRIATE PERSON. IF IN ANY DOUBT, OR SHOULD REPLACEMENT PARTS BE NEEDED, PLEASE CONTACT THE STS TECHNICAL SUPPORT LINE. Operating Instructions: STE01-RRH01... -
Page 12: Charging Operation
Do not allow the batteries to be left in a discharged state as permanent damage can be caused to the batteries. The unit is supplied with the following batteries as standard: Unit Voltage Battery Type Capacity Weight 12V Exide ER350 Battery 80Ah 2 x 19.1kg 270x175x225mm (LxWxH) Operating Instructions: STE01-RRH01... -
Page 13: Moving The Unit
There is a red emergency stop on the top of the control panel. To stop all powered movement of the unit, press the button down. To reset the button, lift up. WARNING – DO NOT LEAVE A RAISED LOAD UNATTENDED Operating Instructions: STE01-RRH01... -
Page 14: Clamping A Drum
To reset the button, lift up. • IMPORTANT – Check the above steps have been completed correctly before you lift the drum off the floor. If you are in any doubt then contact the STS technical support line. • IMPORTANT –... -
Page 15: Drum Rotating Head
Drum Rotating Head Function Flexible Clamp Pad Clamping Ram Gearbox Rotation Operating Instructions: STE01-RRH01... -
Page 16: Tipping A Drum
147kg where the centre of mass of the load is offset by a distance of 221mm. Note: Generic unit shown WARNING - ROTATING A DRUM WITH A HIGHER OFFSET LOAD IS TREATED AS MISUSE AND MAY DAMAGE THE UNIT. Operating Instructions: STE01-RRH01... -
Page 17: Section Iv - Unit Maintenance, Troubleshooting And Consumables
Clean wheels if required ● ● Chassis and Superstructure Check doors and/or covers for damage ● ● Check labels are legible and complete ● ● Check guarding for damage and visibility, replace if necessary (see ● ● ‘Consumables’ for instructions) Operating Instructions: STE01-RRH01... - Page 18 If applicable, check power drive disconnects when charging ● OPERATORS SHOULD REPORT ANY DEFECTS ON THE UNIT TO THE APPROPRIATE PERSON. IF IN ANY DOUBT, OR SHOULD REPLACMENT PARTS BE NEEDED, PLEASE CONTACT THE STS TECHNICAL SUPPORT LINE. Operating Instructions: STE01-RRH01...
-
Page 19: Troubleshooting
Check hydraulic oil level Load cannot be lowered (Electrically or pneumatically powered) Possible Cause Action The load exceeds the SWL Reduce mass of load Hydraulic oil level too low Check hydraulic oil level Emergency stop engaged Reset emergency stop button Operating Instructions: STE01-RRH01... - Page 20 Unit cannot be moved (Pneumatically powered power drive units) Possible Cause Action Airline not connected Reconnect airline Emergency stop pressed Reset the emergency stop button Tiller in the vertical or horizontal position Adjust tiller angle to allow unit movement Operating Instructions: STE01-RRH01...
-
Page 21: Consumables
Consumables All unit consumables are available from STS. The unit must be fitted with original STS consumables unless otherwise stated. Any deviation from original consumables may result in injury to personnel or damage to the unit and will invalidate the warranty. -
Page 22: Clamping Pad Replacement
The clamping pads should be replaced if they show signs of wear or damage. They should also be replaced if the rubber bands become slack within their retaining frame, with regular use this should be at most once per year. These are available from STS. Item Description Qty. -
Page 23: Polycarbonate Guarding Replacement
Polycarbonate Guarding Replacement The polycarbonate guarding should be replaced if damaged, cracked or visibility is reduced. These are available from STS. To replace the polycarbonate guard, isolate the unit in a safe area, then proceed as follows: • Remove the four M5 bolts, if applicable, located in each corner and remove the old guard. -
Page 24: Battery Replacement
12V Power Unit 24V Power Unit Joining Cable WARNING - ISOLATE UNIT BEFORE ACCESSING THE BATTERY/BATTERIES When changing batteries, all batteries should be changed for new ones. Batteries must be from the same manufacturer and of the same specification. Operating Instructions: STE01-RRH01... -
Page 25: Safety Regulations Governing The Handling Of Lead-Acid Batteries
The battery produces a mixture of nitrogen and hydrogen (electrolytic gas) during charging. Gassing is a chemical process. This gas mixture is highly explosive and must not be ignited. STS units are supplied with either an external or an on-board charger. The charger •... - Page 26 Do not lay any metallic objects on the battery/batteries. • It is essential to follow the safety regulations of the battery, the battery charger and charger station manufacturers. WARNING - BATTERY POWERED UNITS ARE NOT PERMITTED FOR USE IN AN ATEX ENVIRONMENT. Operating Instructions: STE01-RRH01...
-
Page 27: Wheel Replacement
Replace the wheels ensuring that the wheel bushes are re-fitted into the wheels prior to re-bolting. Wooden Wooden Block Position Block Position NOTE: VIEW ON UNDERSIDE NOTE: VIEW ON UNDERSIDE WARNING – DO NOT JACK THE UNIT MORE THAN NECESSARY AS UNIT MAY BECOME UNSTABLE Operating Instructions: STE01-RRH01... -
Page 28: Section V - Technical Specification
1980 Maximum Height 2500 Ground Clearance Lift Stroke 1600 Maximum Distance Under Drum 1450 Drum Diameter Clamping Range 280-610 Turning Radius 1700 Leg Length 350kg Max Noise Level 79dBa Nominal Power 2200W Net Mass 425kg System Voltage Operating Instructions: STE01-RRH01... -
Page 29: Section Vi - Decommissioning The Unit
For further help contact STS: Technical Support Line: +44 (0) 1736 851050 In the interest of all concerned it is essential that equipment of our manufacture is used only for the purposes for which it has been designed and it must be used in accordance with the instructions which are supplied.
