Birlea CROXLEY Assembly Instructions Manual
4'6 ottoman bed
Hide thumbs
Also See for CROXLEY:
- Assembly instructions manual (13 pages) ,
- Assembly instructions manual (8 pages) ,
- Assembly instructions manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Birlea CROXLEY
Summary of Contents for Birlea CROXLEY

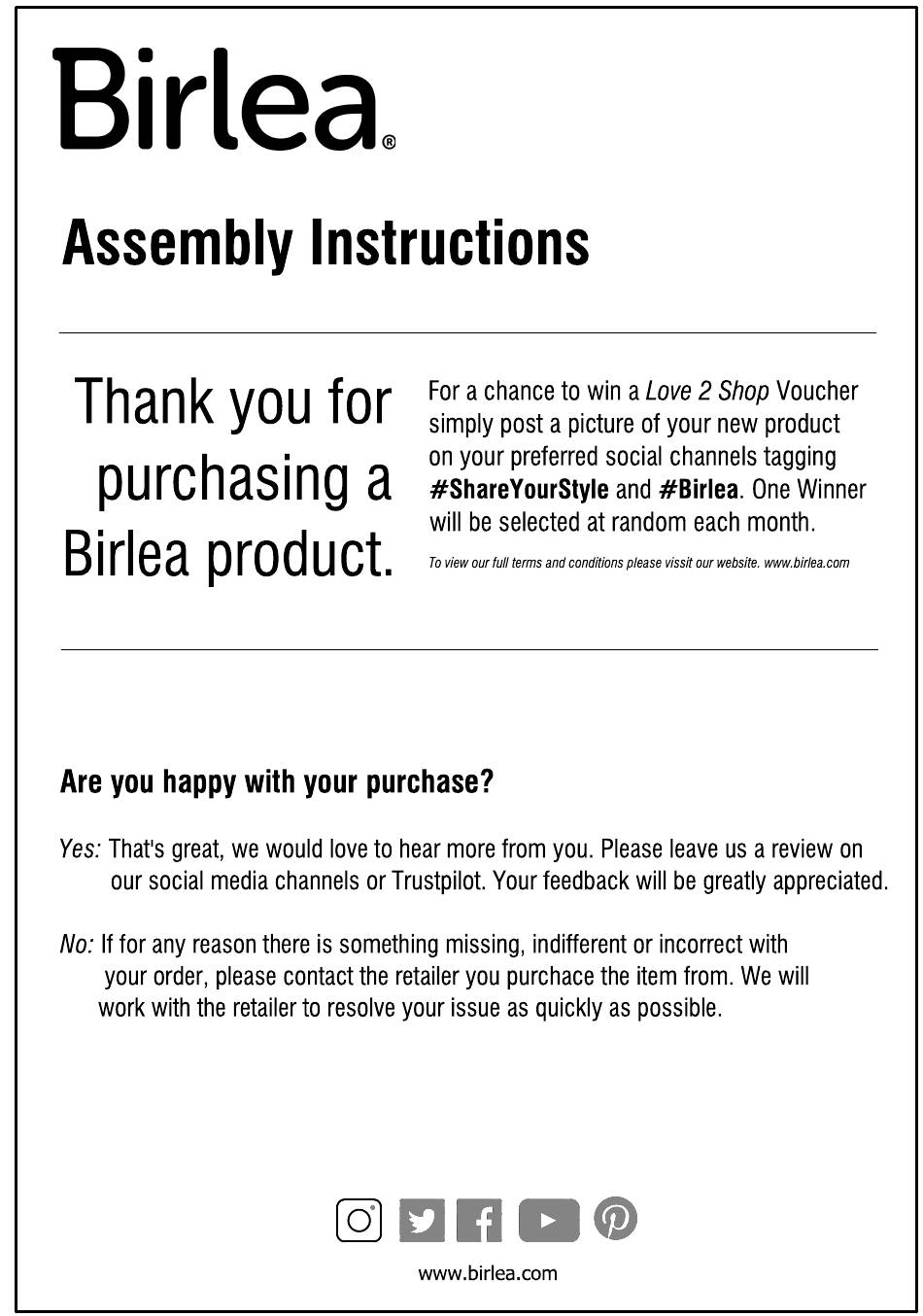

- Page 2 CROXLEY 4’6 OTTOMAN BED CROXLEY 4’6 OTTOMAN BED.
- Page 3 Footboard Frame...
- Page 5 Step 1: Firstly, fix the hydraulic pump to each hydraulic base as shown in diagram 1.1. Next fix the left and right hydraulic spacer together with the hydraulic base supports on to both side rails using bolts H. Ensure Plastic washers (part L) are used between the Hydraulic spacer (part 6) and the hydraulic base support (parts 18/19) as shown in the image.
- Page 6 Step 3: Fix the Headboard(1) and Footboard(2) with the bed frame by Hardware(F). Step 4: Fix the Metal Corner Block(C) by Hardware(G).
- Page 7 Step 5: Join together all the bed base parts (11),(12),(13) and (14) using hardware parts S,X & R and also slide part P onto Part 14 before bolting together. Attach the centre rail(15) with Metal Frame by hardware G,X&R.And then attach hardware parts J as shown. Important note: Please assemble follow arrow direction.
- Page 8 Step 7: Assemble the bed base on the right & left hydraulic frame starting from'1'to'3'as shown with HardwareH,X,R&W,and fix the support leg (16) to the bed base by Hardware G,X&R as shown . Important note: Do not tighten the bolts yet!, and this assemble must be done by two persons.
- Page 9 Step 8: Adjust the bed base making sure that the distance to the footboard is approximately 15mm to above . Tighten all bolts and screws now. 15 m m to above F O O T B O A R D...
- Page 10 H YD R AU LIC PU M P STO PPER (LO C K IN ) (LO CK O U T)
