Summary of Contents for Netgate XG-1537
- Page 1 Secure Router Manual XG-1537 © Copyright 2024 Rubicon Communications LLC Jul 15, 2024...
- Page 2 OUT OF THE BOX 1 Getting Started 2 Input and Output Ports 3 Connecting to the Console Port 4 Additional Resources 5 Warranty and Support...

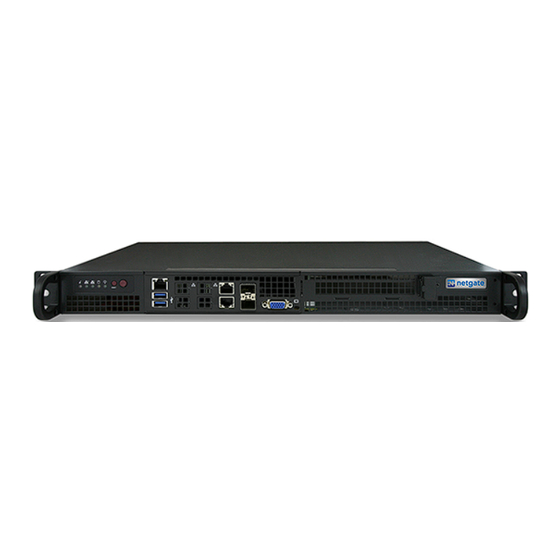

- Page 3 Secure Router Manual XG-1537 This Quick Start Guide covers the first time connection procedures for the Netgate 1537 1U Secure Router and also provides information needed to stay up and running. © Copyright 2024 Rubicon Communications LLC...
-
Page 4: Getting Started
CHAPTER GETTING STARTED Use the following steps to configure the TNSR Secure Router. 1. To configure the Network Interfaces and gaining access to the Internet, follow the instructions provided in the Zero-to-Ping documentation. Note: Not all steps in the Zero-to-Ping documentation will be necessary for every configuration scenario. 2. -
Page 5: Input And Output Ports
CHAPTER INPUT AND OUTPUT PORTS Contents • Input and Output Ports Default Configuration – ∗ Network Ports ∗ Other I/O ∗ Status LEDs With CPIC-8955 Accelerator Card with Intel® QuickAssist Technology – With 2 Port Intel 1 Gbps Ethernet Expansion Card –... -
Page 6: Network Ports
Secure Router Manual XG-1537 2.1.1 Network Ports Port Linux Label TNSR Label Port Type Port Speed eno1 GigabitEthernet6/0/0 RJ-45 1 Gbps eno2 GigabitEthernet6/0/1 RJ-45 1 Gbps eno3 TenGigabitEthernet3/0/0 SFP+ 10 Gbps eno4 TenGigabitEthernet3/0/1 SFP+ 10 Gbps Note: Default Host OS Interface is eno1. The Host OS Interface is one network interface that is only available to the host OS and not available in TNSR. - Page 7 Secure Router Manual XG-1537 State Description Continuously on and red An overheat condition has occurred. (This may be caused by cable congestion.) Blinking red (1Hz) Fan failure, check for an inoperative fan. Blinking red (0.25Hz) Power failure, check for a non-operational power supply.
- Page 8 Secure Router Manual XG-1537 2.2 With CPIC-8955 Accelerator Card with Intel® QuickAssist Tech- nology Port Linux Label TNSR Label Port Type Port Speed eno1 GigabitEthernet6/0/0 RJ-45 1 Gbps eno2 GigabitEthernet6/0/1 RJ-45 1 Gbps eno3 TenGigabitEthernet3/0/0 SFP+ 10 Gbps eno4 TenGigabitEthernet3/0/1...
- Page 9 Secure Router Manual XG-1537 updating the host OS. 2.4 With 2 Port Intel 10 Gbps X710 SFP+ Expansion Card Port TNSR Label Port Type Port Speed TenGigabitEthernet5/0/1 SFP+ 10 Gbps TenGigabitEthernet5/0/0 SFP+ 10 Gbps GigabitEthernet7/0/0 RJ-45 1 Gbps GigabitEthernet7/0/1 RJ-45...
- Page 10 Secure Router Manual XG-1537 Port Linux Label TNSR Label Port Type Port Speed ens2f0 GigabitEthernet5/0/0 RJ-45 1 Gbps ens2f1 GigabitEthernet5/0/1 RJ-45 1 Gbps ens2f2 GigabitEthernet5/0/2 RJ-45 1 Gbps ens2f3 GigabitEthernet5/0/3 RJ-45 1 Gbps eno1 GigabitEthernet7/0/0 RJ-45 1 Gbps eno2 GigabitEthernet7/0/1...
- Page 11 CONNECTING TO THE CONSOLE PORT Connecting to the VGA console is identical to connecting any computer to a monitor. Connect the VGA cable (DB-15) between the Netgate appliance and the monitor. Use a USB or PS/2 keyboard and mouse as applicable to the hardware.
-
Page 12: Additional Resources
Netgate training has got you covered. https://www.netgate.com/training/ 4.3 Resource Library To learn more about how to use your Netgate appliance and for other helpful resources, make sure to browse our Resource Library. https://www.netgate.com/resources/... -
Page 13: Warranty And Support
CHAPTER FIVE WARRANTY AND SUPPORT • One year manufacturer’s warranty. • Please contact Netgate for warranty information or view the Product Lifecycle page. • All Specifications subject to change without notice. Enterprise Support is included with an active software subscription, for more information view the...
