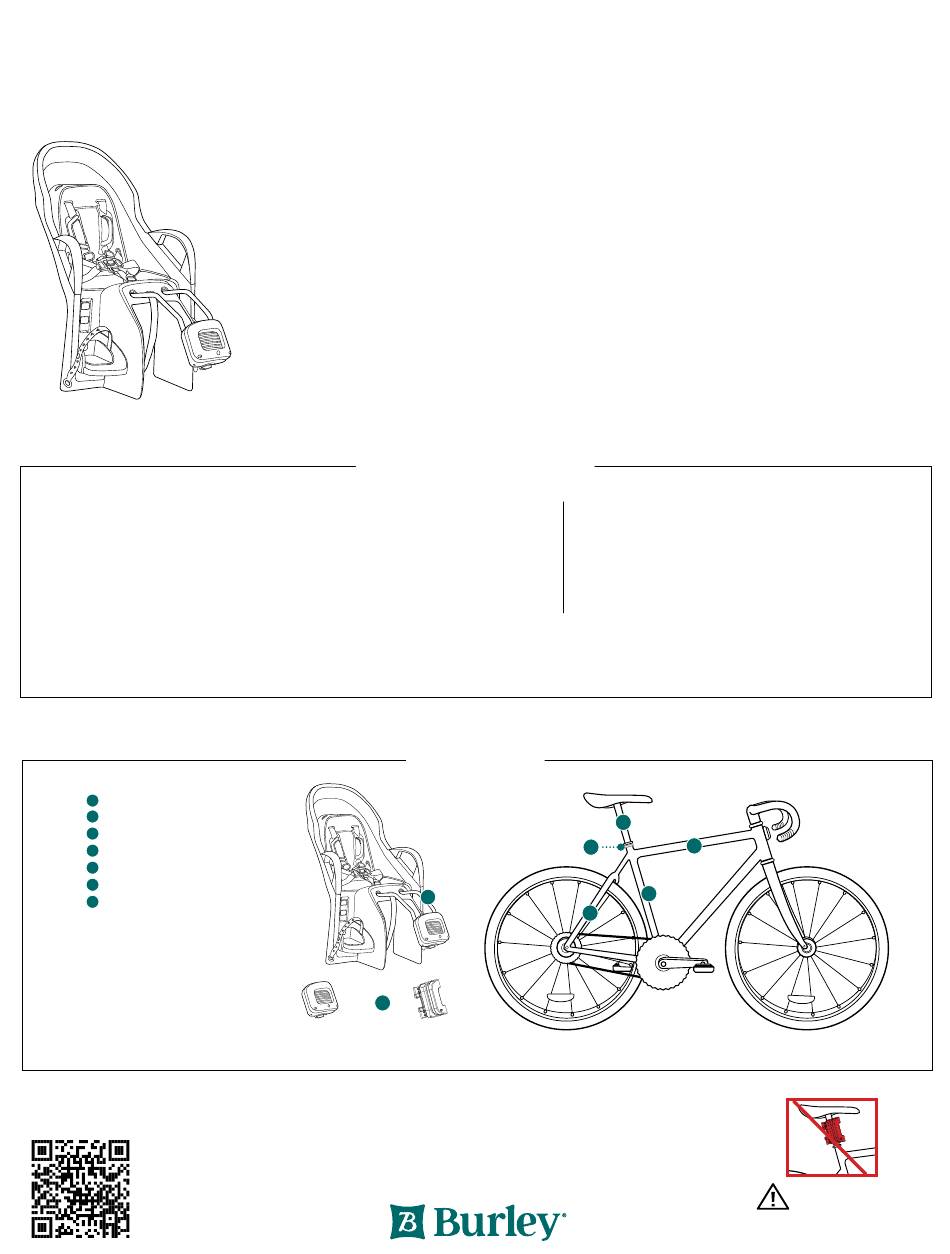

Burley Dash FM Fit Manual

With three great options, let us help you find the right seat for your family!
Ensure your bike meets the following bike frame and
wheel requirements:
• Wheel diameter of either: 26", 650b/27.5", 700C, or 29"
• Seat tube diameter is 1.10" – 1.57" (28–40 mm)
• Seat tube shape must be round or oval
• Minimum Seat tube length of 4.1 in (105 mm)
To ensure your bike is compatible with Burley's rear child bike seats, please consult your bike's manufacturer prior to purchase.
Seat Tube
1
Seat Stay
2
Top Tube
3
Seat Post
4
Seat Post Collar
5
Frame Mounting Block
6
Mounting Rails
7
Scan to view Dash® FM
Compatibility Video.
Dash FM Fit Guide
®
Dash® FM I Lightweight and easy to use, turn virtually any bike into a fun,
family-hauler. Available in 2 fitments:
· Standard Rails I Fits many standard bike frames.
· Extended Rails I Designed for additional compatibility for bikes with
smaller frames and larger tire clearance.
Dash® X FM I Offering all the same great features of the Dash® FM, with added
comfort in 3 positions of adjustable recline.
· Available in our Standard Rails fitment only.
Before Purchasing
Reference
7
6
Three-Quarter View Side View
Customer Service
Burely@Burley.com
NOT compatible with:
• Full Suspension Bicycles
• Motorized Vehicles (E-Bikes OK)
• Bicycles with triangular or
square shape tubes
• Bicycles with carbon fiber frames
4
Seat Post Seat Post Top Tube Top Tube
3
5
Seat Tube Seat Tube
1
Seat Stay Seat Stay 2
WARNING
DO NOT mount the Frame
Mounting Block to the Seat Post.
