Burley d'lite ST Using

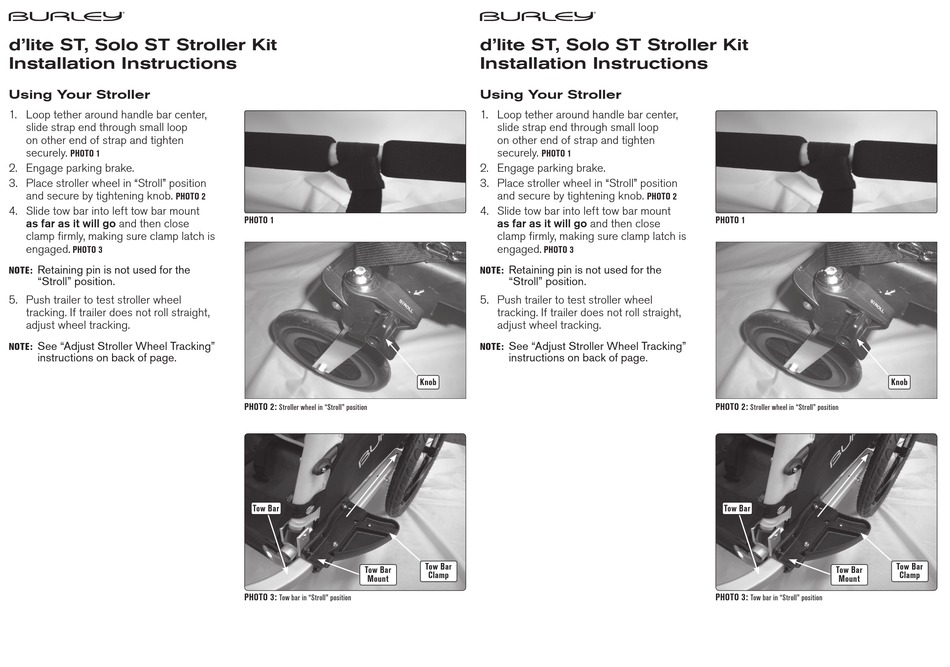

d'lite ST, Solo ST Stroller Kit
Installation Instructions
Using Your Stroller
1. Loop tether around handle bar center,
slide strap end through small loop
on other end of strap and tighten
securely.
Photo 1
2. Engage parking brake.
3. Place stroller wheel in "Stroll" position
and secure by tightening knob.
Photo 2
4. Slide tow bar into left tow bar mount
as far as it will go and then close
clamp firmly, making sure clamp latch is
engaged
. Photo 3
Retaining pin is not used for the
Note:
"Stroll" position.
5. Push trailer to test stroller wheel
tracking. If trailer does not roll straight,
adjust wheel tracking.
See "Adjust Stroller Wheel Tracking"
Note:
instructions on back of page.
Photo 1
Knob
Photo 2:
Stroller wheel in "Stroll" position
tow Bar
tow Bar
Mount
Photo 3:
Tow bar in "Stroll" position
d'lite ST, Solo ST Stroller Kit
Installation Instructions
Using Your Stroller
1. Loop tether around handle bar center,
slide strap end through small loop
on other end of strap and tighten
securely.
Photo 1
2. Engage parking brake.
3. Place stroller wheel in "Stroll" position
and secure by tightening knob.
4. Slide tow bar into left tow bar mount
as far as it will go and then close
clamp firmly, making sure clamp latch is
engaged
. Photo 3
Retaining pin is not used for the
Note:
"Stroll" position.
5. Push trailer to test stroller wheel
tracking. If trailer does not roll straight,
adjust wheel tracking.
See "Adjust Stroller Wheel Tracking"
Note:
instructions on back of page.
tow Bar
Clamp
Photo 2
Photo 1
Photo 2:
Stroller wheel in "Stroll" position
tow Bar
Photo 3:
Tow bar in "Stroll" position
Knob
tow Bar
tow Bar
Clamp
Mount
