en | Introduction
3.2
Product overview

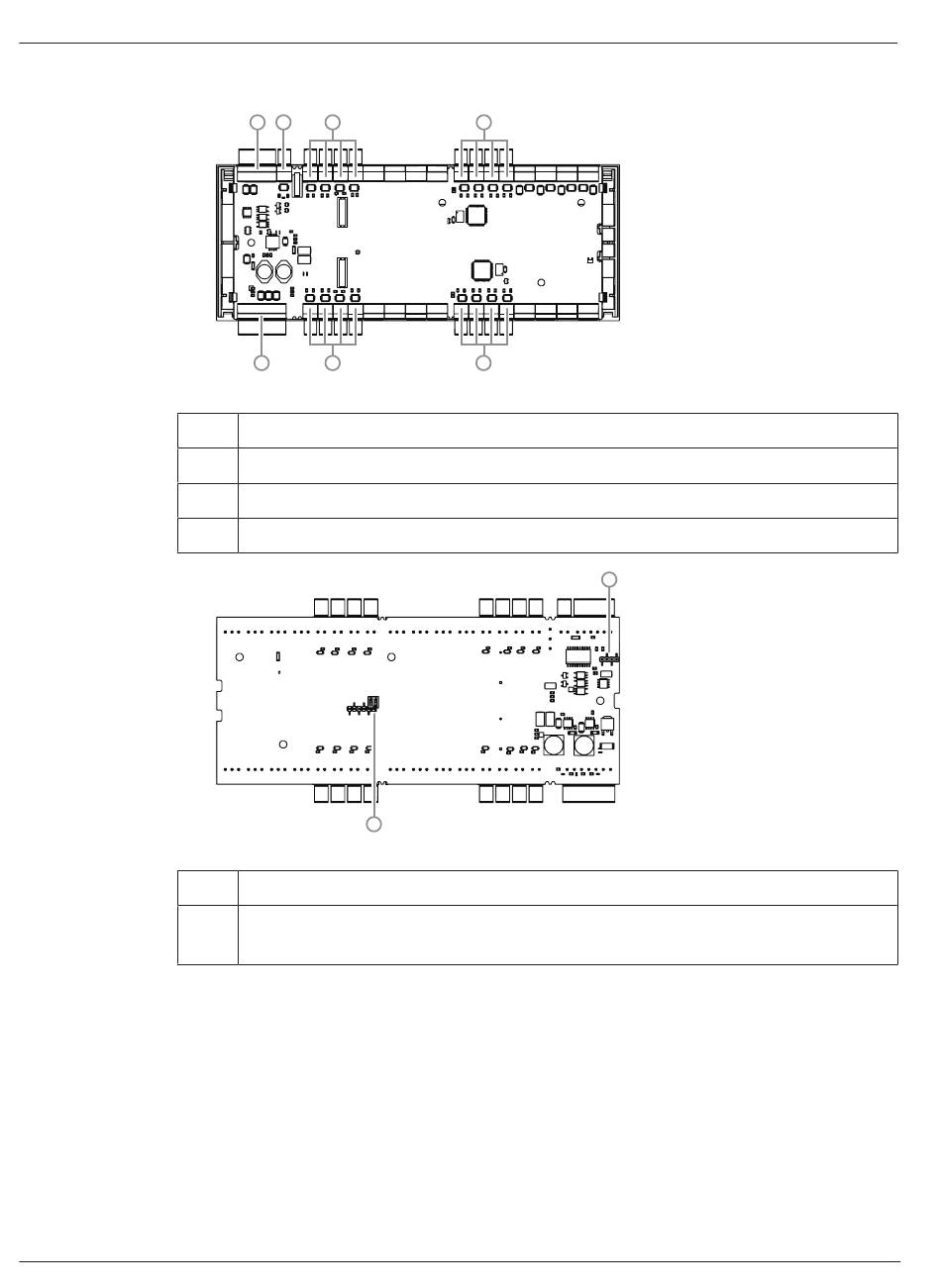

Figure 3.2: AMC2 16IE overview-interfaces
Figure 3.3: AMC2 16IE jumpers at the bottom side
3.3
System overview
The extensions can be connected to the controller through the RS-485 extension module
bus. A maximum of three IO extensions can be connected to one controller.
The extension must be addressed accordingly (1-3).
In the example, the power is supplied via the controller. If necessary, it is also possible to
use a separate power supply for an extension.
2024-01 | V02 |
1
2
3
4
3
1
RS-485 extension module bus
2
External tamper contact
3
Connectors for analog inputs
4
Connector for power supply
5
5
DIL switch for setting the board address.
6
Jumper: Equalization of potential between different systems and earth ground
(shield) for the extension module bus.
3
3
Installation manual
Extension board with 16-input
