- Page 1 Extension board with 16‑input API‑AMC2‑16IE Installation manual...
-
Page 3: Table Of Contents
System requirements 5.1.1 Computer UL 294 level descriptions Installation instructions Extended technical specification 5.4.1 RS-485 extension 5.4.2 Power consumption Troubleshooting Service and repair Disposal Technical specifications Appendices 10.1 Connecting diagrams Bosch Security Systems B.V. 2024-01 | V02 | Installation manual... -
Page 4: Safety
Some features and functions described in this document depend on the firmware loaded into the device and host software. Make sure that the controller is updated to the firmware version provided with the host system. 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... -
Page 5: Fcc Class B
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Bosch Security Systems B.V. 2024-01 | V02 | Installation manual... -
Page 6: Short Information
If you need further assistance or have any questions, contact: Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2023 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... -
Page 7: Introduction

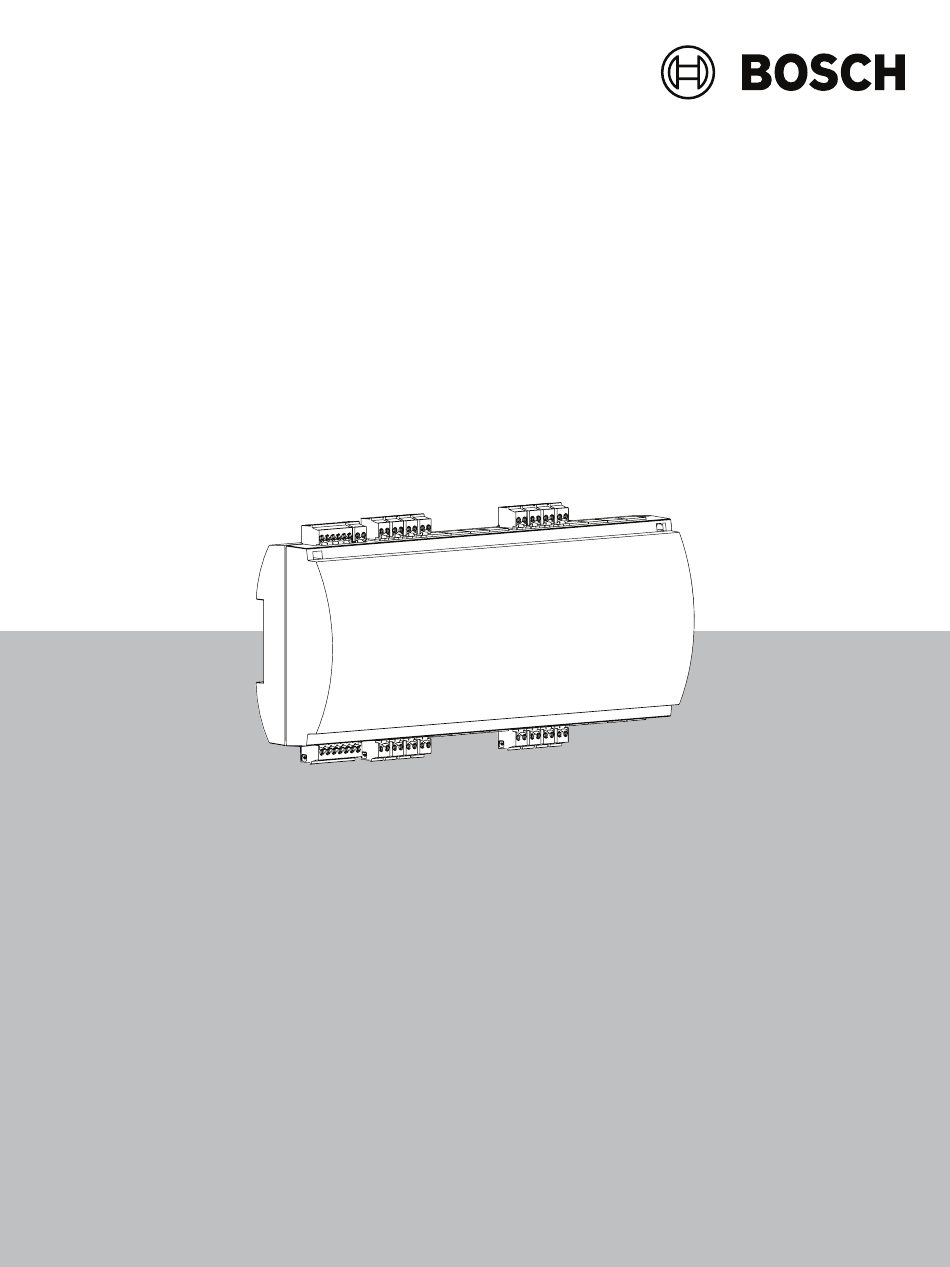

The extension AMC2-16IE can be used with a controller. It allows to extend a controller with additional input ports. Figure 3.1: The extension AMC2-16IE The API-AMC2-16IE has 16 analog inputs. The analog inputs can be wired with potential-free contacts, such as door or relay contacts. The extension electronics are completely covered by a plastic housing. -
Page 8: Product Overview
The extension must be addressed accordingly (1-3). In the example, the power is supplied via the controller. If necessary, it is also possible to use a separate power supply for an extension. 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... - Page 9 Extension board with 16-input Introduction | en Figure 3.4: AMC2 16IE System overview Host computer Access Modular Controller Card reader Communication and power supply Extension Bosch Security Systems B.V. 2024-01 | V02 | Installation manual...
-
Page 10: Installation
For information on how to install the device in an enclosure, refer to the separate instruction manual of the enclosure AEC-AMC2-UL01 or AEC-AMC2-UL02. After installing the device, keep the door of the enclosure closed. 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... -
Page 11: Unmounting The Device From A Mounting Rail
Push down the extension until the lower edge snaps out of the mounting rail [1]. Pull the lower end of the extension from the mounting rail [2]. Figure 4.2: Unmounting the AMC2 device on a mounting rail Bosch Security Systems B.V. 2024-01 | V02 | Installation manual... -
Page 12: Opening The Case
Insert the hooks on the lower edge of the front cover into the lugs on lower edge of the plastic back cover [1]. Ensure that the BOSCH logo is not upside-down. The upper edge of the front cover now aligns with the two-point snap-in closures on the upper edge of the back cover [2], and may thus be clicked gently into place. - Page 13 If excessive force is required to close the front cover then it is probably incorrectly hooked into the back cover. In this case, remove the cover again and check whether the lower brackets are positioned correctly. Bosch Security Systems B.V. 2024-01 | V02 | Installation manual...
-
Page 14: Cabling
These specifications apply to power supply, relay outputs, and extension interface. Regarding inputs, specific voltage-drop values need to be taken into account. Refer to chapter Connecting analog input devices, page 22. 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... -
Page 15: Grounding And Shielding
If one device is fed power by another, the cable shielding should be applied to both sides. 4.6.1 Ground for extensions interface A 1: Delivery status Figure 4.5: AMC2 16IE Ground jumper bottom side Delivery status Bosch Security Systems B.V. 2024-01 | V02 | Installation manual... - Page 16 Jumper A connects the internal ground of the controller to the RS-485 ground of the slave interface. Only set jumper A (A2) if the controller powers all other peripheral devices directly connected to it. 2024-01 | V02 | Bosch Security Systems B.V. Installation manual...
-
Page 17: Connecting The Power Supply To The Extension
Connect an external power supply (10 VDC - 30 VDC) to the extension at pin 1 (positive) and pin 3 (0 V) of the pluggable screw connector. Bosch recommends using the Bosch APS-PSU-60 power supply unit. This power supply can also be used as an Uninterruptible Power Supply (UPS) when using the appropriate batteries. -
Page 18: Power Supply Via Rs-485 Interface
The power can also be supplied by the controller. In this case, the supply voltage is also connected (pin 1-2) in addition to the data lines (pin 3 - 6). Figure 4.7: Internal Power Supply interface 4.7.3 Overview - Power supply/consumption Power Supply Data Figure 4.8: Example configurations 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... - Page 19 This leaves 55VA to support external devices. 25VA of these 55VA can be used for constant load (e.g. a card reader) leaving 30VA for occasional peak usage (e.g. a door opener). Bosch Security Systems B.V. 2024-01 | V02 | Installation manual...
-
Page 20: Rs-485 Interface
1 2 3 4 5 6 1 2 3 4 5 6 AMC2 AMC2 ...-EXT Figure 4.10: Connection of an extension module to a controller 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... -
Page 21: Addressing
When configuring the system, ensure that the order of boards in the access control software corresponds to the addresses set when using this switch. Figure 4.11: Location of the selector for host settings Address DIP switches none 1 (delivery status) Bosch Security Systems B.V. 2024-01 | V02 | Installation manual... -
Page 22: Connecting Analog Input Devices
Figure 4.13: Circuit diagram AMC2 analog input Monitoring / door contact Resistor parallel (R Resistor serial (R Broken wire Short circuit – Door open: R 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... - Page 23 Table 4.2: Maximum values of cable resistance per used resistor combination in Ohm Notice! We recommend using serial resistors (R ) no higher than 5K6 in order to obtain clear measurements. Bosch Security Systems B.V. 2024-01 | V02 | Installation manual...
-
Page 24: Tamper Protection
Since the extension does not have its own display, the status information of the input and output signals is shown on the display of the connected controller. For further information, refer to the installation manual of the respective controller. 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... -
Page 25: Ul Requirements
The enclosures AMC2-UL01 (for one device) or AMC2-UL02 (for two devices). – For every enclosure, a power supply Bosch APS-PSU-60 is necessary, and must be located in the same room as the connected AMC2 device. Recommended maximum distance between power supply unit and AMC2 is 3 m (9.84 ft). -
Page 26: Installation Instructions
It may not be used for connection to readers or other accessories. – All units are to be powered by the Bosch APS-PSU-60 power supply for UL installations. The power supply must be located in the same room as the connected AMC2 device. - Page 27 HVAC system. The standby power system for the HVAC system may be supplied by an engine driven generator alone. A standby battery is not required to be used. For UL compliance, use only UL Listed readers. Bosch Security Systems B.V. 2024-01 | V02 | Installation manual...
- Page 28 | UL requirements Extension board with 16-input AMC2 extension Figure 5.1: Example of mountings with extensions Position Description Position Description Black / brown Battery connection Earth cable Blue R-485 extension connection 2024-01 | V02 | Bosch Security Systems B.V. Installation manual...
-
Page 29: Extended Technical Specification
10 VDC to 30 VDC, maximum of 3 A Power consumption 5 VA Total combined output 3 A @ 10 VDC - 12 VDC 2.5 A @ 24 VDC - 30 VDC Bosch Security Systems B.V. 2024-01 | V02 | Installation manual... -
Page 30: Troubleshooting
– Check the configuration of the controller. If necessary, reset the controller to Factory Default to delete all configuration data. – Reset the controller as described in Resetting the software. 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... -
Page 31: Service And Repair
Upon completion of service or repair work on the controller, ask the service technician to perform safety checks to ensure that the controller operates properly. After sales support For more information, visit www.boschsecurity.com/xc/en/support/. Bosch Security Systems B.V. 2024-01 | V02 | Installation manual... -
Page 32: Disposal
The controller has a CF card as storage medium. When disposing of the controller, ensure that the CF card or the complete controller is destroyed or disposed of in accordance with the Local Data Protection Ordinance. 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... -
Page 33: Technical Specifications
Operating relative humidity, non-condensing 0% – 95% IP rating IP30 Capacity Number of analog inputs Connectivity Extension interface RS485 Electrical Input voltage (VDC) 10 VDC – 30 VDC Power consumption (VA) 5 VA Bosch Security Systems B.V. 2024-01 | V02 | Installation manual... -
Page 34: Appendices
Power supply (0V) UPS (power good signal) - AC UPS (power good signal) - Battery UPS (power good signal) - DC UPS (power good signal) - Common Table 10.3: Power supply 2024-01 | V02 | Bosch Security Systems B.V. Installation manual... - Page 35 Troubleshooting – Repair & Exchange – Product Security Bosch Building Technologies Academy Visit the Bosch Building Technologies Academy website and have access to training courses, video tutorials and documents: www.boschsecurity.com/xc/en/support/training/ Bosch Security Systems B.V. 2024-01 | V02 | Installation manual...
- Page 36 | Appendices Extension board with 16-input 2024-01 | V02 | Bosch Security Systems B.V. Installation manual...
- Page 37 Extension board with 16-input Appendices | Bosch Security Systems B.V. 2024-01 | V02 | Installation manual...
- Page 38 | Appendices Extension board with 16-input 2024-01 | V02 | Bosch Security Systems B.V. Installation manual...
- Page 40 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2024 Building solutions for a better life 202404031701...
