INSTRUCTION
Fig. 1
Fig. 2
Fig. 3
Fig. 6
45
www.inventini.com

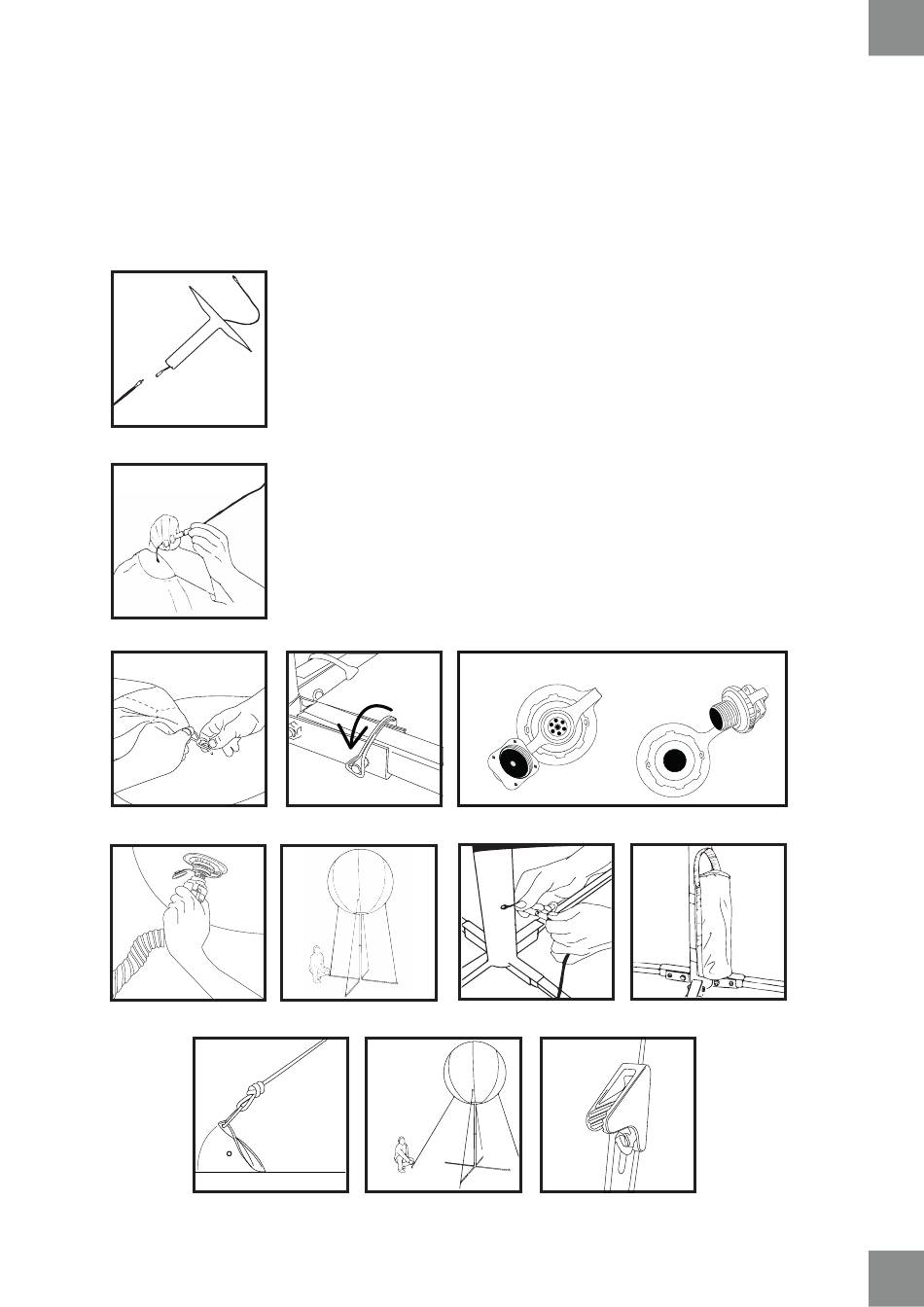

1. Choose a flat even spot where you want to pitch the product.
2.
a.
If the ball has lighting pull the main power cord through the top tube
(shorter one) and connect with the plug placed in the plate (Fig. 1).
Connect the plug of main power cord to that of the ball (Fig. 2).
b.
Clip the cover to the plate with a carabiner (Fig. 3).
3. Unfold the feet of the stand base and insert the pins into the holes.
Secure the pins to prevent them from slipping out (Fig. 4)
4. Assemble the stand by inserting the components one by one into the other.
The following are successively: stand base with feet, long tube,
short tube, plate.
5. Clip the first end of the rope to the eyelet on the side of the ball.
Repeat the action with all the ropes.
6. Make sure the pump valve is in the INFLATE SETUP (Fig. 5).
7. Use the pump to inflate the product until it gets its shape
(minimally taut) (Fig. 6).
8.
Clip the second end of the rope to the eyelet located on the foot of
the stand. Repeat the action with all the ropes (Fig. 7).
9.
If the ball has a lighting, connect the plug of the main power cord to that
of accumulator, then pin the accumulator to the stand with
Velcro straps (Fig. 8, Fig. 9).
When using the ball outdoors:
10. Hammer the anchor into the ground at an angle of approximately 45 degrees
(the top of the anchor away from the product).
Clip the secon end of the line into the anchor (Fig. 10, Fig. 11).
Thighten the line, useing tensioning device on the line (Fig.12).
Fig. 4
Fig. 7
Fig. 10
Fig. 11
Inflate setup
Deflate setup
Fig. 5
Fig. 8
Fig. 12
ASSEMBLY
Fig. 9
EN
7
