Caution: You must read this before you proceed.
Please look in the storage box for hardware packs.

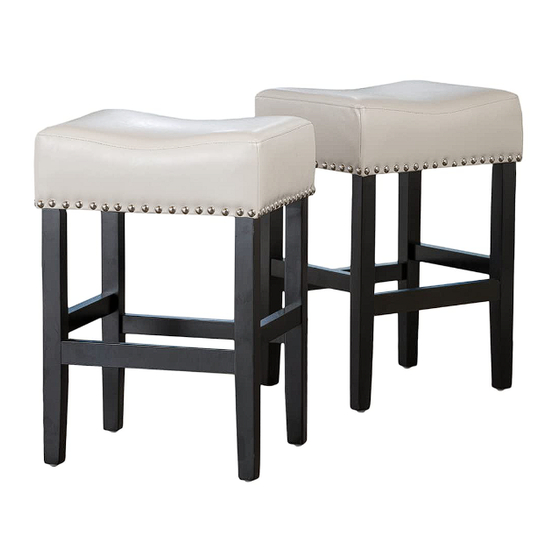

Bar Stool
CAUTION: This Stool is NOT a TOY.
Keep your child / children at bay in the process of assembly.
For turning the Stool and to prevent any possible damage to the
Stool, 2 people may be needed to execute this action.
Page 1 OF 7
Noble house Home Furnishings LLC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Christopher Knight Home 238557
Summary of Contents for Christopher Knight Home 238557
- Page 1 Caution: You must read this before you proceed. Please look in the storage box for hardware packs. Bar Stool CAUTION: This Stool is NOT a TOY. Keep your child / children at bay in the process of assembly. For turning the Stool and to prevent any possible damage to the Stool, 2 people may be needed to execute this action.
- Page 2 Part NO. Picture Description Bar Stool Seat 'H'Leg Frame Side Rails Label Picture Description Long Bolt (M8*55mm) Flat Washer Ring (M8.5/22*2mm) Spring Washer Ring (M8 .5 /13.5*2mm) Allen Key (K4) Screw (M4*50mm) Screw D river (Not Provided) Page 2 OF 7 Noble house Home Furnishings LLC...
- Page 3 Before Beginning Assembly: Unpack an d place all parts for clear visibility 9pc of Long Pack A for Bolt (1) + 9pc of assembling Flat Washer the Leg Ring (2) + 9pc of Frame(B) to Spring Washer (3) the Chair + 1pc Allen Key Seat(A) Pack B for...
- Page 4 Step 1 A.Bar Stool Sea t C.Side Rails B.'H'Leg Frames Place the Bar Stool Seat(A) onto a soft surface to avoid any scratches or damages to the product. REMOVE the Seat Base Cover from the underside of the Bar Stool Seat(A), take out the Side Rails(C) and hardware. Place the 'H'Leg Frames(B) on a clean, non-marring surface.
- Page 5 Step 3 N ext, place the chair onto the side of a table as seen in Picture 1 . You will now have the chair bottom and legs facing skywards. Repeat the same process in step 2 to insert the remain 'H'Leg Frame(B) into the Bar Stool Seat(A).Then attach the Side Rail(C) to the 'H'Leg Frame(B) .
- Page 6 Step 4 Place the chair on a LEVEL SURFACE to see if it wobbles. If it wobbles, lift the chair to some 30cm to 50cm height from the ground. Keep your feet and toes well away from the drop zone. Drop the chair freely and vertically with the four legs, hitting the ground, at the same time.
- Page 7 Page 7 OF 7 Noble house Home Furnishings LLC...
