OSP Home Furnishings CMB2SHF Assembly Instructions Manual

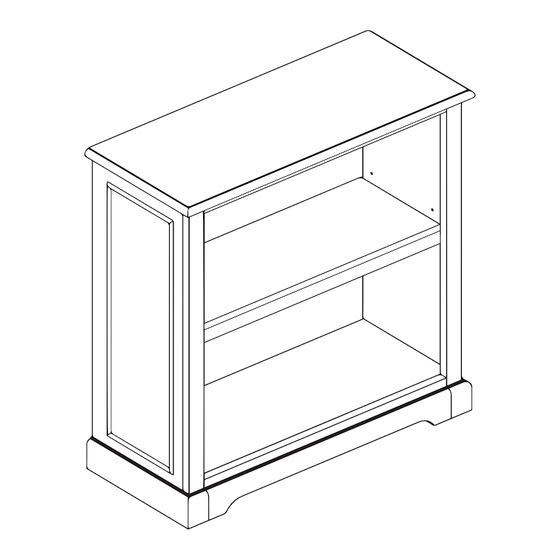

Country meadows 2-shelf bookcase

Download this manual

November, 2020

CMB2SHF

COUNTRY MEADOWS 2-SHELF BOOKCASE

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Need help?

Do you have a question about the CMB2SHF and is the answer not in the manual?

Page 1 November, 2020 CMB2SHF COUNTRY MEADOWS 2-SHELF BOOKCASE Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
Page 2 Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: (a) Supply compatible ®...
Page 3: Hardware List
PARTS (B) Right side Panel (1 PC) (A) Left side Panel (1 PC) (C) Top Panel (1 PC) (D) Shelf (1 PC) (E) Back Panel (1 PC) (F) Bottom Panel (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Bolt 1/4” x 1 08 PCS Flat Washer 1/4”...
Page 4 STEP 1 (1) (4) DO NOT FULLY TIGHTEN BOLTS (1). STEP 2...
Page 5 STEP 3 FULLY TIGHTEN ALL BOLTS (1). STEP 4 SECURE SHELF (D) TO SHELF PINS (5) USING SCREWS (6). FULLY TIGHTEN SCREWS (6).
Page 6 ANTI-TIP KIT Place cabinet in desired location. Carefully drill a 1/4’’ pilot hole into wall. Secure one Bracket to wall using two Long Screws, FULLY TIGHTEN LONG SCREW USING PHILLIPS SCREWDRIVER (not provided). Secure remaining Bracket to rear of cabinet using two Short Screws, FULLY TIGHTEN SHORT SCREW USING PHILLIPS SCREWDRIVER (not provided).

Cmb2shf-aw
