Omix-Ada Rugged Ridge 13551.11 Quick Installation Instructions

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com
Components:
1. Accessory Mount Base
2. Rubber Tray
3. Universal Ball Mount
4. Cap Piece
Required Tools:
1. Socket Driver
2. 7 mm Socket
1. Remove factory rubber tray from dashboard stor-
age area above center console.
2. Remove factory screw using a socket driver and
a 7 mm socket. Do not discard factory screw, it will
be reused in product installation.

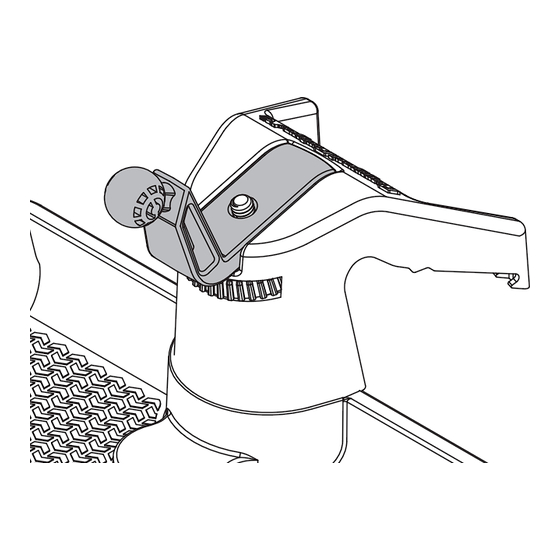

3. Install Accessory Mount Base. Hooks on arms of
Accessory Mount Base will snap into upper dash-
board vents closest to windsheild.
4. Reinstall factory screw removed in Step 2.
5. Place custom Rubber Tray into dashboard stor-
age area.
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
11+ JK Accessory Mount Dash Organizer
Read all instructions thoroughly before installation.
OMIX-ADA
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Copyright © 2013 Omix-Ada
(1)
(1)
(1)
(1)
TECHNICAL SUPPORT
®
, Inc.
®
Page 1/2
13551.11
Rev 02/2014
