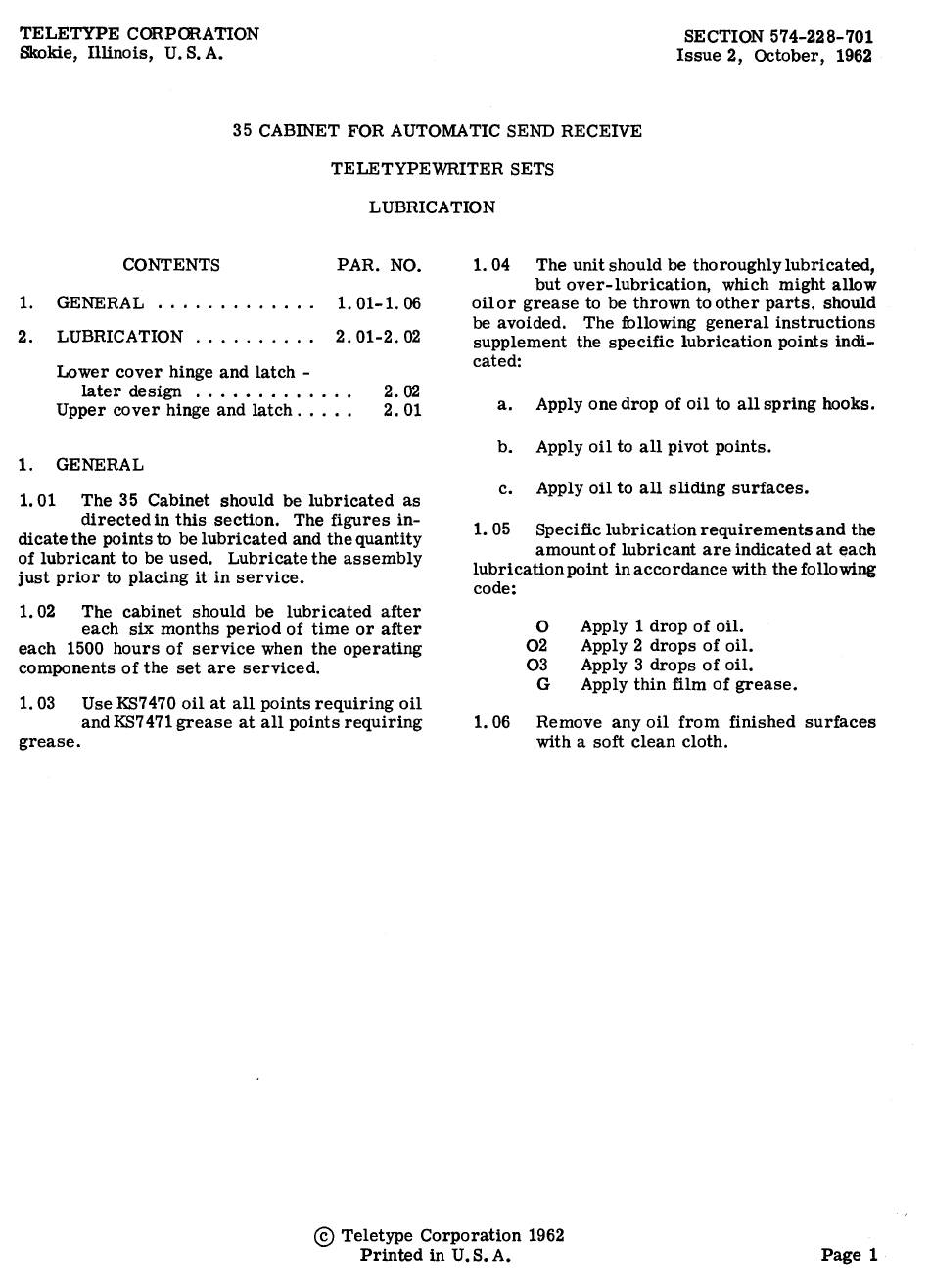

TELETYPE CORPORATION
SECTION 574-228-701
Skokie, Illinois, U. S. A.
Issue 2, October, 1962
35 CABINET FOR AUTOMATIC SEND RECEIVE
TELETYPEWRITER SETS
LUBRICATION
CONTENTS
PAR. NO.
1.
GENERAL
1.01-1. 06
2.
LUBRICATION
2.01-2.02
Lower cover hinge and latch -
later design
2. 02
Upper cover hinge and latch
2. 01
1. GENERAL
1.01 The 35 Cabinet should be lubricated as
directed in this section. The figures in-
dicate the points to be lubricated and the quantity
of lubricant to be used. Lubricate the assembly
just prior to placing it in service.
1.02 The cabinet should be lubricated after
each six months period of time or after
each 1500 hours of service when the operating
components of the set are serviced.
1. 03 Use KS7470 oil at all points requiring oil
and KS7471 grease at all points requiring
grease.
1. 04 The unit should be thoroughly lubricated,
but over-lubrication, which might allow
oilor grease to be thrown to other parts, should
be avoided. The following general instructions
supplement the specific lubrication points indi-
cated:
a.
Apply one drop of oil to all spring hooks.
b.
Apply oil to all pivot points.
c.
Apply oil to all sliding surfaces.
1. 05 Specific lubrication requirements and the
amount of lubricant are indicated at each
lubrication point in accordance with the following
code:
O
Apply 1 drop of oil.
02
Apply 2 drops of oil.
03
Apply 3 drops of oil.
G
Apply thin film of grease.
1. 06 Remove any oil from finished surfaces
with a soft clean cloth.
® Teletype Corporation 1962
Printed in U.S.A.
Page 1
