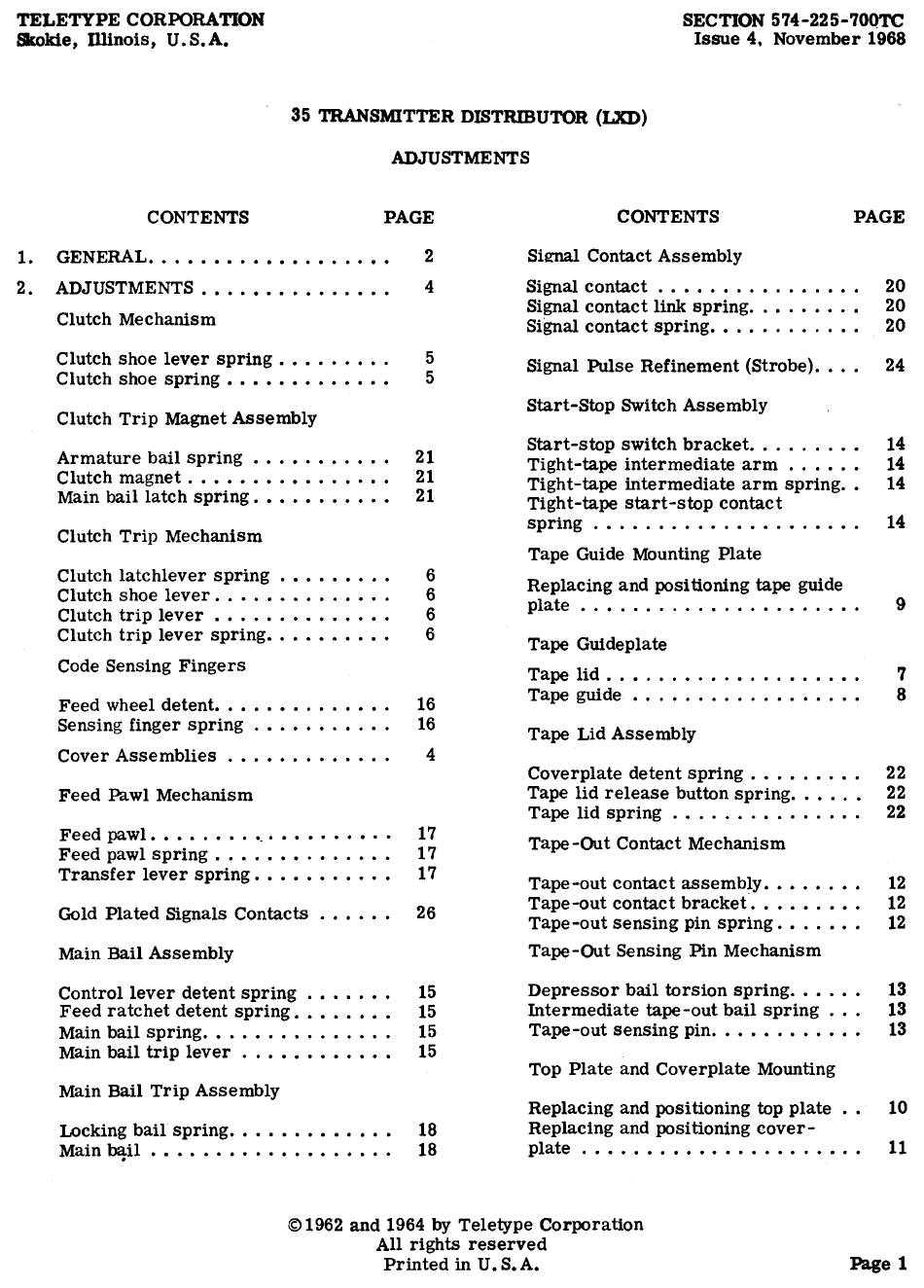

TELETYPE CORPORATION SECTION 574-225-700TC
Skokie, Illinois, U.S.A.
Issue 4, November 1968
35 TRANSMITTER DISTRIBUTOR (LXD)
ADJUSTMENTS
CONTENTS PAGE
CONTENTS PAGE
1. GENERAL 2
Sienal Contact Assembly
2. ADJUSTMENTS 4
Signal contact 20
Signal contact link spring
20
Clutch Mechanism
Signal contact spring 20
Clutch shoe lever spring
5
Clutch shoe spring
5
Clutch Trip Magnet Assembly
Armature bail spring
21
Clutch magnet
21
Main bail latch spring 21
Clutch Trip Mechanism
Clutch latchlever spring 6
Clutch shoe lever
6
Clutch trip lever
6
Clutch trip lever spring 6
Code Sensing Fingers
Feed wheel detent
16
Sensing finger spring
16
Cover Assemblies 4
Feed Pawl Mechanism
Feed pawl
17
Feed pawl spring
17
Transfer lever spring 17
Gold Plated Signals Contacts
26
Signal Pulse Refinement (Strobe). . . . 24
Start-Stop Switch Assembly
Start-stop switch bracket 14
Tight-tape intermediate arm 14
Tight-tape intermediate arm spring. 14
Tight-tape start-stop contact
spring 14
Tape Guide Mounting Plate
Replacing and positioning tape guide
plate
9
Tape Guideplate
Tape lid 7
Tape guide 8
Tape Lid Assembly
Coverplate detent spring
22
Tape lid release button spring
22
Tape lid spring 22
Tape-Out Contact Mechanism
Tape-out contact assembly 12
Tape-out contact bracket 12
Tape-out sensing pin spring 12
Main Bail Assembly
Tape-Out Sensing Pin Mechanism
Control lever detent spring 15
Depressor bail torsion spring
13
Feed ratchet detent spring
15
Intermediate tape-out bail spring . . . 13
Main bail spring
15
Tape-out sensing pin 13
Main bail trip lever 15
Top Plate and Coverplate Mounting
Main Bail Trip Assembly
Replacing and positioning top plate . . 10
Locking bail spring
18
Replacing and positioning cover-
Main bail 18
plate
11
©1962 and 1964 by Teletype Corporation
All rights reserved
Printed in U.S.A.
Page 1
