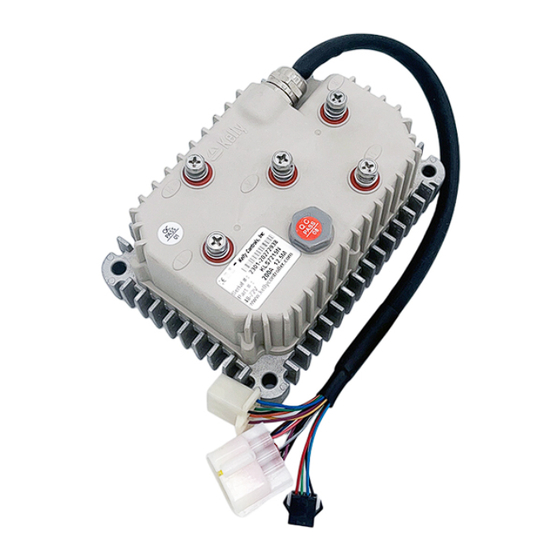

Kelly KLS8412N User Manual

Modest size & all around sinusoidal brushless pm motor controllers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User's Manual
Kelly Jaguar series KLS-N
Modest size & all around Sinusoidal Brushless PM Motor Controllers
KLS2412ND
KLS2412N
KLS2418N
KLS2430ND
KLS2430N
User's Manual
Devices Supported:
KLS4812ND
KLS7212ND
KLS4812N
KLS7212N
KLS4818N
KLS7215ND
KLS4830ND
KLS7215N
KLS4830N
KLS7218N
KLS7225N
KLS7230ND
KLS7230N
KLS7235N
KLS7240N
KLS7250ND
KLS7250NE
KLS7260NE
KLS7270ND
KLS7270NE
KLS8412N
KLS8412ND
KLS8418N
KLS8430ND
KLS8430N
KLS8445NE
KLS8460NE
KLS8470NE
KLS9650NE
Rev. 1.29
Jul. 2024
V1.25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KLS8412N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kelly KLS8412N

Summary of Contents for Kelly KLS8412N

  • Page 1 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Kelly Jaguar series KLS-N Modest size & all around Sinusoidal Brushless PM Motor Controllers User’s Manual Devices Supported: KLS2412ND KLS4812ND KLS7212ND KLS8412N KLS2412N KLS4812N KLS7212N KLS8412ND KLS2418N KLS4818N...

  • Page 2: Table Of Contents

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Contents Chapter 1 Introduction ................. 2 1.1 Overview ................... 2 Chapter 2 Features and Specifications ............3 2.1 General functions ................3 2.2 Features .................... 4 2.3 Specifications ..................5 2.4 Name Regulation ................

  • Page 3: Chapter 1 Introduction

    This manual introduces the Kelly sinusoidal wave brushless BLDC motor controllers’ features, their installation and their maintenance. Read the manual carefully and thoroughly before using the controller. If you have any questions, please contact the support center of Kelly Controls.

  • Page 4: Chapter 2 Features And Specifications

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Chapter 2 Features and Specifications 2.1 General functions (1) Extended fault detection and protection. Customers can read the error message in PC software or Android APP also. (2) Monitoring battery voltage. It will stop driving if the battery voltage is too high and it will progressively cut back motor drive power as battery voltage drops until it cuts out altogether at the preset “Low Battery Voltage”...

  • Page 5: Features

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 included in KLS-N controller by default.CAN bus is only an optional function for KLS-N. (23) Bidirectional anti-slip function(Optional) , Prevent the stationary vehicle moving in the opposite direction. After the function enabled, when the controller detects that the motor turns from standstill to the opposite direction, it will drive the motor to provide some braking force, making the vehicle stops or slows down.

  • Page 6: Specifications

    The name regulation of Kelly BLDC motor controllers KLS2412ND KLS: Kelly BLDC motor controller based on sinusoidal waveform which is supposed to work with BLDC motor with three hall sensors. All KLS controllers can do regen brake function by default.
  • Page 7 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Kelly KLS-N - Sinusoidal Brushless Permanent Magnet Motor Controller Model Nominal Max Operating Peak Current** Continuous Voltage Voltage 1 Minute Current KLS2412ND 12-24V 9-32V 140A Up to 100A *...

  • Page 8: Chapter 3 Wiring And Installation

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Chapter 3 Wiring and Installation 3.1 Mounting the Controller The controller can be oriented in any position which should be as clean and dry as possible, and if necessary, shielded with a cover to protect it from water and contaminants.
  • Page 9 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Figure 2: KLS2412N KLS4812N KLS7212N KLS7215N KLS8412N mounting holes’ dimensions (dimensions in millimeters) B+,B-,U,V,W:M5 Bolts...
  • Page 10 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Figure 3: KLS2430ND KLS4830ND KLS7230ND KLS7250ND KLS8430ND mounting holes' dimensions (dimensions in millimeters)
  • Page 11 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Figure 4: KLS2418N KLS4818N KLS7218N KLS7225N KLS8418N mounting holes’ dimensions (dimensions in millimeters)
  • Page 12 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Figure 6:KLS2430N KLS4830N KLS7230N KLS7235N KLS8430N mounting holes’ dimensions (dimensions in millimeters)
  • Page 13 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Figure 7:KLS7240N mounting holes’ dimensions (dimensions in millimeters)
  • Page 14 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Figure 8: KLS7250NE KLS7260NE KLS8445NE KLS8460NE KLS8470NE mounting holes’ dimensions (dimensions in millimeters)
  • Page 15 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Figure 9: KLS7270NE KLS9650NE mounting holes’ dimensions (dimensions in millimeters)
  • Page 16 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Figure 10: KLS7270ND mounting holes’ dimensions (dimensions in millimeters)

  • Page 17: Connections

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 3.2 Connections 3.2.1 Pin definition of KLS-N Controller waterproof connector Figure 10: 1，The switch signal is valid to 12V 2，12V only can be used for LED or switch signals , with a total current not exceeding 20mA.
  • Page 18 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 (33)CAN-H:Greenish(Optional function) (7) PWR: Controller power supply (input). Pink (34)CAN-L:Brownish(Optional function) DJ7091Y-2.3-21 Pin Definition (15) Micro_SW: Throttle switch input. Gray (3) Throttle: Throttle analog input, 0-5V. Dark Green (20) RTN: Signal return.
  • Page 19 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 3.2.2 Standard Wiring of KLS-N Controller Figure 11: KLS-N controller standard wiring (Battery voltage can be used for controller supply) 3.2.3 Optional wiring of KLS-N controller The 12V input signal of the pin supplies the second braking function of the controller.
  • Page 20 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Figure 13: Wiring of brake switch(12V): 12V is provided by KLS-N controller on pin11 Figure 14: Wiring diagram for motor temperature sensor NOTE: KLS controller can support KTY84-130/150 and KTY83-122 thermistors.

  • Page 21: Installation Check List

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 3.3 Installation Check List Before operating the vehicle, complete the following checkout procedure. Use buzzer code as a reference as listed in Table 1. Caution: • Put the vehicle up on blocks to get the drive wheels off the ground before beginning these tests.

  • Page 22: Chapter 4 Programmable Parameters

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Chapter 4 Programmable Parameters KLS Configuration program allow users to set parameters according to the vehicle actual working environment so as to be at its best. The default parameters of the controller are not recommended for all applications. Make sure set the proper parameters before making any test to avoid danger.
  • Page 23 (7)TPS High Err: Hall active pedal, if higher than the value, report the fault of TPS Type. Range: 80~100 As you may know, the output of hall throttle from Kelly is about from 0.86V to 4.2V. Our controller will report 3.3 error code if the output of hall throttle is below 0.5V or above 4.5V by default.
  • Page 24 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 (8)TPS Type: TPS Type, 1:0-5V 3-wire 0-5K pot,5K is normal,2K-20K can be used;2:Hall active throttle or pedal. Range: 1~2 (9)TPS Dead Low: TPS Dead Zone Low. Range: 5~40 Functional description: Set throttle effective starting point Suggestion: Set according to the practical situation, factory default is 20%*5V=1.0V.
  • Page 25 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 pin22 and pin12 are disconnected from pin11,the controller is driving with medium speed mode. Three speed: This item is used to enable or disable three speed function. By default, it is at 0 0:Three speed function is disabled.1:Two speed function.2:Three speed function is enabled.
  • Page 26 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Please note the common throttle will spring back to original position if you release the throttle. Suggestion: factory default is Disable. (23)Three Gears switch: It is used for function of F-N-R control.

  • Page 27: Step 2

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 function is brake variable regen mode. (25)Foot switch: It is used for microswitch. If enabled, the controller will only accept the throttle signal after received the valid foot switch signal.

  • Page 28: Step 3

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 If you have a motor with 5V,Sin/Cosin, GND speed sensors, please choose it at 4.And please inquire the KLS-8080IPS model before ordering. (4)Resolver Poles: Resolver Poles, The pair pole number*2. Range: 2~32 It is only used for the Resolver sensor type.
  • Page 29 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 (6)Brake Rls Time: Brake Release Time, the time of Brake Torque from max to 0, accuracy 0.1s. Range: 1~250 Factory set is 1 (7)BRK_SW Brk %: BRK_SW Braking Percent, the percent of BRK_SW in max braking. Range: 0~50 The brake switch regen mode.

  • Page 30: How To Use Identification Angle Operation Function

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 These parameters are used for PID adjustment. If the acceleration is too aggressive, please reduce these three parameters at the same time, vice versa. Please change the Torque Speed Kp every 1000 units,Torque speed Ki every 100 units and Speed Err limit every 500 units.
  • Page 31 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 2,Please connect the controller to user program by using an USB to RS232 cable and SM-4A DB9(RS232) Converter.
  • Page 32 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Customers also can use a Z-TEK USB to RS232 cable and SM-4A DB9(RS232) Converter to connect the controller to an Android Tablet. The third option is customers can buy our Bluetooth converter to connect the controller to Android Phone.
  • Page 33 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 3,Please download the controller user program from our website for free. www.kellycontroller.com/support.php Please install the user program in your computer, Tablet or Phone. 4,Please turn on the key switch so that the controller can get power supply from B+/B- and Pin7.Please try to open the user program in your computer or other devices.
  • Page 34 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 10,Please try to connect the controller to user program again. You will see 85 in the identification angle item. That is to say, the controller identification angle operation is successful.

  • Page 35: Chapter 5 Maintenance

    Identification angle operation. • Use a straight through RS232 cable or USB converter provided by Kelly to connect to a host computer. Provide >+18V to PWR（for a 24V controller, provide >+8V）. Wire power supply return(supply negative) to any RTN pin.
  • Page 36 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Caution: •Make certain that the motor is connected before trying to run Identification angle function in the configuration software. The controller needs to be connected to batteries, motor and throttle before Identification operation. That is to say, it is not enough to connect only power supply(PWR=pin7) to batteries for Identification Angle operation.
  • Page 37 Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 2. There may be excessive load on the +5V supply caused by too low a value of Regen or throttle potentiometers or incorrect wiring. 3. Controller is damaged. Contact Kelly about a warranty repair.

  • Page 38: Contact Us

    Kelly Jaguar series KLS-N Sinusoidal Brushless PM Motor Controller User’s Manual V1.25 Contact Us: Kelly Controls Home Page: http://www.KellyController.com Download user manual,instructions and user program: www.kellycontroller.com/support.php E-mail: Sales@Kelly-Controls.com Phone: (01) 224 637 5092...
