Dorel Home Products DA2066329T Instruction Booklet
  1. Manuals
  2. Brands
  3. Dorel Home Products Manuals
  4. Indoor Furnishing
  5. DA2066329T
  6. Instruction booklet

Dorel Home Products DA2066329T Instruction Booklet

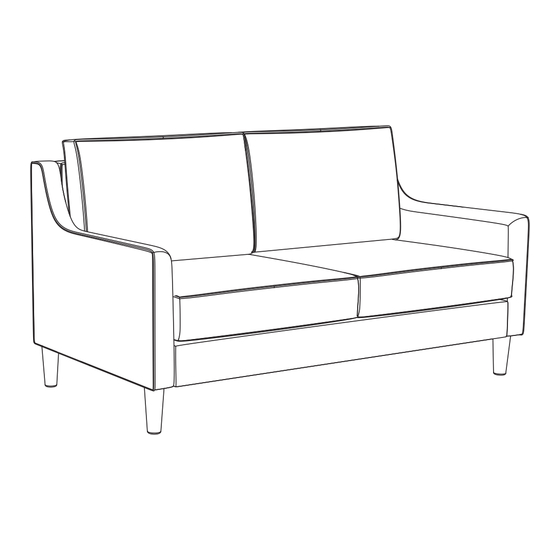

Slope arm loveseat sofa, gray linen/blue velvet/light gray linen
Hide thumbs

Advertisement

Table of Contents

Weight Limit: 400 Lb / 181 Kg
L.J . - 2021.05.14
© 2021 Dorel Home Products All Rights Reserved
DA2066329T
 
Slope arm Loveseat Sofa
Thank you for purchasing from Dorel!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
DA2066579T
 
DA2066129T
  
Lot Number
(TAKEN FROM CARTON)
B34DA2066329T00-25025-H
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA2066329T and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Home Products DA2066329T

Summary of Contents for Dorel Home Products DA2066329T

  • Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. L.J . - 2021.05.14 B34DA2066329T00-25025-H © 2021 Dorel Home Products All Rights Reserved...
  • Page 2 Limited 1 year Warranty Read Before Beginning Assembly Dorel warrants this product to be free from defects in material and workmanship ● Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.
  • Page 3 PARTS & H & G & M G & M...

  • Page 4: Parts List

    PARTS LIST Chair back Back rail Sseat panel Front rail Right arm 1 PC 1 PC 1 PC 1 PC 1 PC Seat cushion pad Seat cushion cover Left arm Back cushion 2 PCS 2 PCS 4 PCS 1 PC 2 PCS Back cushion cover 2 PCS...

  • Page 5: Part Numbers

    PART NUMBERS Each part has a unique part number. PART DA2066129T DA2066329T DA2066579T (Gray Linen) (Blue Velvet) (Light Gray Linen) Please reference the appropriate part LABELS number when contacting customer T637630 T637570 T637610 service for replacement parts. T637580 T637580 T637580...
  • Page 6 ALLEN KEY 1 PC DA2066329T(Gray Linen) HP # : TDA2068329T-00 DA2066579T(Blue Velvet) DA2066129T(Light Gray Linen) Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.
  • Page 7 Step 1 Attach legs I x 4 to arms E & F , as shown.
  • Page 8 Step 2 2.1. Attach front rail C to arms E & F by inserting the brackets on front rail C on the bolts located on arms E & F, as shown. 2.2. Push the front rail C with a downward force to secure it into place.
  • Page 9 Step 3 3.1. Attach back rail D to arms E & F by inserting the brackets on back rail D on the bolts located on arms E & F, as shown. 3.2. Push the back rail D with a downward force to secure it into place.
  • Page 10 Step 4 4.1. Attach seat panel B to arms F & E by inserting the metal brackets on seat panel B into the metal glides on arms F & E. 4.2. Push the seat panel B with a downward force to secure it. NOTE : Both sides of B must be inserted at the same time.
  • Page 11 Step 5 5.1. Attach chair back A to arms E & F by inserting the brackets on chair back A into the metal glides on arms E & F, as shown. 5.2. Secure the fabric flap on the back of chair back A to the arms using the Velcro strips.
  • Page 12 Step 6 Carefully cut the plastic bag using scissors and remove the back cushion pad G. Insert the back cushion pad G into the back cushion cover M and close the zipper.
  • Page 13 Step 7 Carefully cut the plastic bag using scissors and remove the seat cushion pad H. Insert the back cushion pad H into the back cushion cover N and close the zipper.
  • Page 14 Step 8 Put the seat cushions G&M and back cushions H&N onto the sofa as shown. NOTE: The cushions have been vacuum packed for transport purposes. After unpacking, please allow up to 72 hours so that they can return to their original shape.

  • Page 15: Helpful Hints

    Helpful Hints CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. ● Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
  • Page 16 ¡NO LO REGRESE A LA TIENDA ! DA2066329T DA2066579T  Si le faltan piezas o las que se incluyen están dañadas, con mucho gusto le enviaremos sus piezas de reemplazo sin DA2066129T   cargo extra. Visite www.dhpfurniture.com/spa/replacement-parts Sofá de 2 plazas con reposabrazos curvos...
  • Page 17 Partes Paquete de componentes Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts DA2066329T (Lino Gris) IMPORTANTE : La lista de números de piezas que aparece a continuación es DA2066579T (Terciopelo Azul) # de paquete : TDA2068329T-00 exclusiva de su producto. Por favor, manténgalo a mano cuando solicite piezas de repuesto.

  • Page 18: Consejos Útiles

    Instrucciones Límites de peso: 400 Lb / 181 Kg Paso 1 Consejos útiles Una I x 4 a E y F, como se muestra (sección en inglés). Mantenga la ● Mueva sus muebles nuevos con cuidado, se requiere de dos arandela preinstalada entre I y F / E.

  • Page 19: Informations Sur La Garantie

    NE PAS RETOURNER CE PRODUIT AU MAGASIN ! DA2066329T DA2066579T  Si une pièce est manquante ou endommagée, nous vous expédierons avec plaisir vos pièces de remplacement DA2066129T   gratuitement. Causeuse avec accoudoirs inclinés Visitez www.dhpfurniture.com/fre/replacement-parts ou appelez au 1-800-267-1739...

  • Page 20: Liste Des Pièces

    Pièces Quincaillerie Pour des pièces de rechange, visitez www.dhpfurniture.com/fre/replacement-parts DA2066329T (Lin Gris) IMPORTANT: La liste des références ci-dessous est propre à votre produit. Veuillez l'avoir sous la main lorsque vous appelez pour des pièces de rechange. DA2066579T (Velours Bleu) # de paquet : TDA2068329T-00 Tout dans 1 grande(s) boîte(s)!

  • Page 21: Conseils Utiles

    Instructions Limite de Poids: 400 Lb / 181 Kg Conseils utiles Étape 1 Fixez I x 4 à E et F, tel qu'illustré (section en anglais). Gardez la rondelle ● Déplacez votre nouveau mobilier avec soin, nous recommandons préinstallée entre I et F/E. deux personnes pour soulever et transporter le mobilier vers Remarque: Avant de commencer l'assemblage, retirez la protection de la partie filetée du pied.

This manual is also suitable for:

Da2066579tDa2066129t
