Weight Limit: 400 lb / 181 kg
J.L.. - 2021/06/01
© 2021 Dorel Home Products All Rights Reserved
DA2023169 (Black Velvet), DA2023269 (Gray Velvet),
DA2023579 (Blue Velvet), DA2023779 (Green Velvet),
Thank you for purchasing from Dorel!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly shipyour
replacement parts free ofcharge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
DA2023279 (Camel Faux Leather)

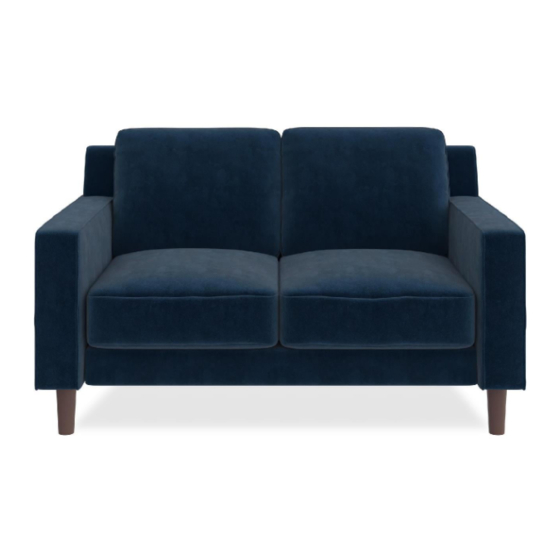

2 Seater sofa
Lot Number
(TAKEN FROM CARTON)
B34DA202316900-100083
1
