Weight Limit: 600 Lb / 272 Kg
A.N. - 2021/9/23
2021 Dorel Home Products All Rights Reserved
DA2074979N (Light Gray Velvet)
Thank you for purchasing from Dorel !
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
Lot Number (TAKEN FROM CARTON)
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

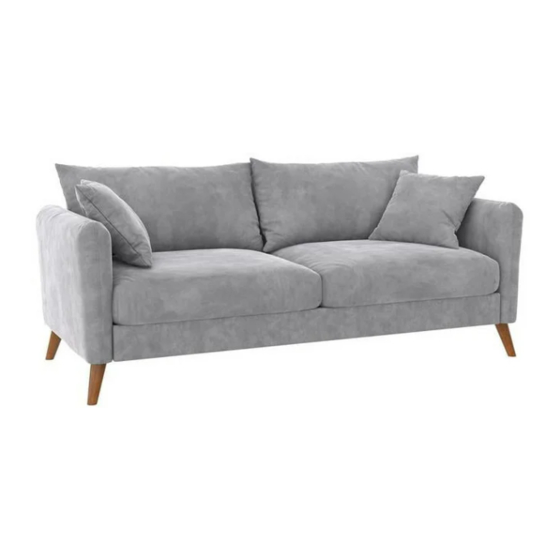

3 Seater Sofa
B34DA2074979N00-015237-AN
1
Advertisement
Table of Contents
Related Manuals for Dorel Home Products Magnolia DA2074979N
Summary of Contents for Dorel Home Products Magnolia DA2074979N
- Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B34DA2074979N00-015237-AN A.N. - 2021/9/23 2021 Dorel Home Products All Rights Reserved...
-
Page 2: Limited 1-Year Warranty
Limited 1 year Warranty Read Before Beginning Assembly Dorel warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product. - Page 3 PARTS...
-
Page 4: Parts List
PARTS LIST Armrest Back Seat Panel Front Rail Armrest 1 PC 1 PC 1 PC 1 PC 1 PC Back Cushion Support Leg Pillow Seat Cushion 2 PCS 1 PC 4 PCS 2 PCS 2 PCS PART NUMBERS PART Each part has a unique part number. DA2074979N (Light Gray Velvet) LABELS Please reference the appropriate part... -
Page 5: Hardware Pack
HARDWARE LIST 5/16"X 2 3/4" Spring Washer Washer Allen Key Bolt Hardware Pack Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. HP#: TDA2074979N-00 The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page. - Page 6 Step 1 Place all parts on a clean, smooth surface. Attach legs K x 4 to armrests D & E with bolts , spring washers , washers as shown. Make sure legs K are assembled outwardly.
- Page 7 Step 2 Attach front rail C to armrests D & E by inserting the brackets on front rail C into the metal plate on armrests D & E, as shown. Push front rail C downwards to secure it into place.
- Page 8 Step 3 Please remove the protective cap on the tip of thread before assembling. Manually screw support leg H to seat panel B, as shown.
- Page 9 Step 4 Attach seat panel B to armrests D & E by inserting the metal brackets on seat panel B into the metal glides on armrests D & E, as shown. Push seat panel B downwards to secure it into place.
- Page 10 Step 5 Note: Both sides must be inserted at the same time. This step is best 5.1 Attach back A to armrests D & E by performed with 2 people. inserting the brackets on back A into the metal glides on armrests D & E. Push back A downwards to secure it into place.
- Page 11 Step 6 Remove the seat cushions from their vacuumed sealed package. Place seat cushions F x 2, back cushions G x 2 & pillows L x 2 onto the sofa. Note: The seat cushions have been vacuum packed for transportation purposes.
-
Page 12: Helpful Hints
CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location. - Page 13 Preguntas, inquietudes, partes que faltan? CONTACTE NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE DA2074979N (Terciopelo Gris Claro) ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. Si le faltan piezas o las que se incluyen est n da adas, con mucho 3 Seater Sofa gusto le enviaremos sus piezas de reemplazo sin cargo extra.
- Page 14 Partes Paquete de componentes Paquete #: TDA2074979N-00 Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts Nota: Por favor no apriete completamente los pernos hasta que el ensamblaje sea completado, a menos de que se IMPORTANTE: La lista de n meros de piezas que aparece a indique espec ficamente en cada paso de las instrucciones.
- Page 15 Instrucciones L mites de peso: 600 Lb / 272 Kg Etapa 1 Una K x 4 con D y E usando , como se muestra Consejos tiles (secci n en ingl s). Nota: Aseg rese de que los pies K est n hacia afuera. Mueva sus muebles nuevos con cuidado, se requiere de dos personas para levantar y trasladar su mueble a su nueva ubicaci n.
-
Page 16: Informations Sur La Garantie
Des questions, des pr occupations ou des pi ces manquantes? CONTACTEZ NOTRE SERVICE LA CLIENT LE AVANT DE DA2074979N (Velours Gris Clair) RETOURNER LE PRODUIT AU D TAILLANT. Si des pi ces sont manquantes ou endommag es, nous 3 Seater Sofa exp dierons volontiers vos pi ces de rechange gratuitement. - Page 17 Pi ces Quincaillerie Pour des pi ces de rechange, visitez # de paquet : TDA2074979N-00 www.dhpfurniture.com/fre/replacement-parts Remarque: Sauf indication contraire dans les instructions, ne pas resserrer compl tement les vis et les boulons, IMPORTANT: La liste des r f rences ci-dessous est propre votre produit.
-
Page 18: Conseils Utiles
Instructions Limite de Poids: 600 Lb / 272 Kg tape 1 Visser K x 4 D & E avec , tel qu'illustr (section en anglais). Conseils utiles Note: Assurez-vous que les pieds K pointent vers l'ext rieur. D placez votre nouveau mobilier avec soin, nous recommandons tape 2 deux personnes pour soulever et transporter le mobilier vers son Fixez C...
