ProCon — TB550 Series
®
Turbidity Sensor

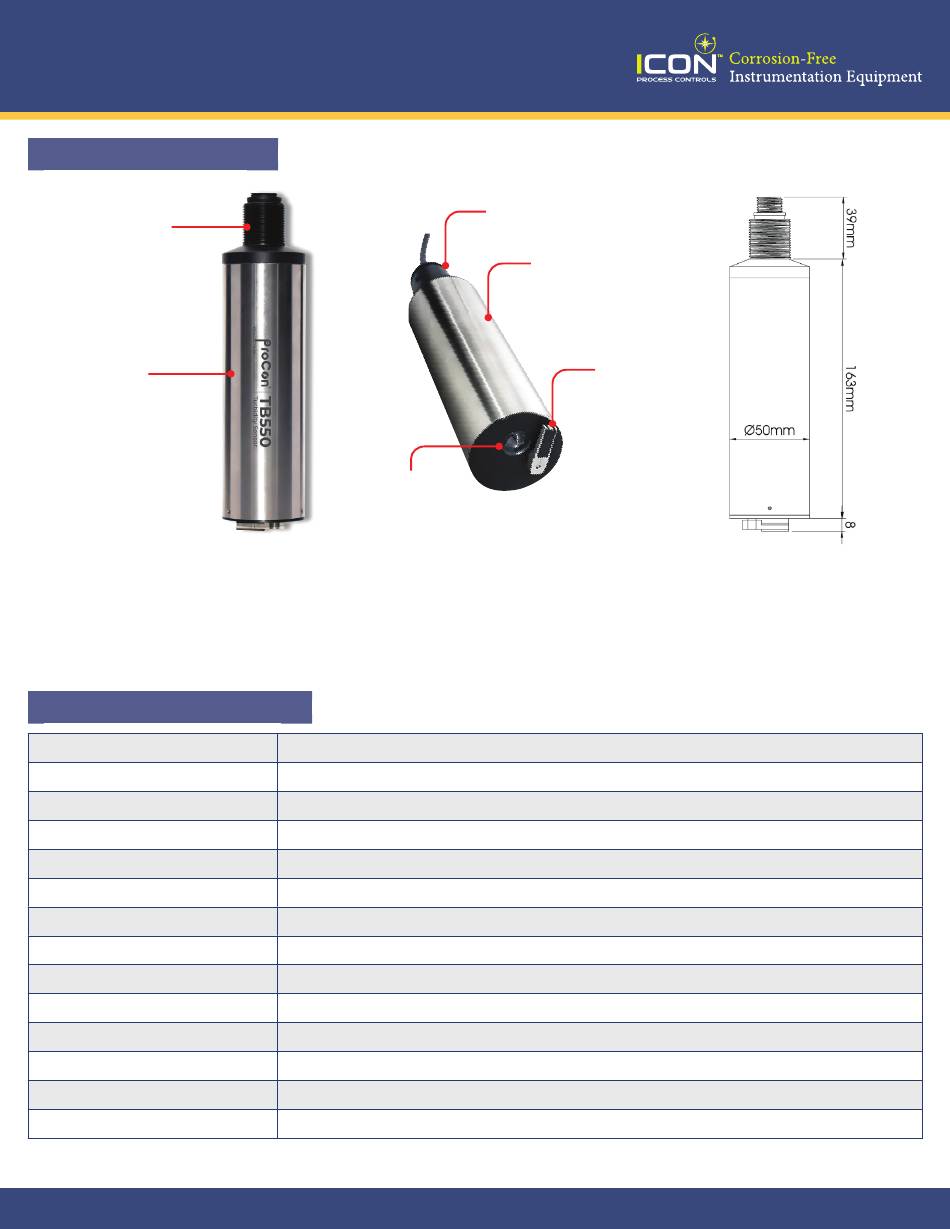

Product Introduction

3/4" NPT Thread
SS316 Body
The turbidity sensor is based on infrared scattered light technology .The infrared light emitted by the light source will be
scattered when it passes through the sample under test during transmission. The intensity of the scattered light is directly
proportional to the turbidity.
The turbidity sensor is equipped with a scattered light receiver in a 90° direction. The turbidity value is obtained by
analyzing the intensity of the scattered light. It can be widely used for turbidity monitoring in sewage plants, water plants,
water stations, surface water and other industrial applications.

Technical Specifications

Sensor Model No.
Power Supply
Accuracy
Pressure Range
Working Temperature
Measurement Range
Output
Resolution
Response Time
Waterproof Grade
Housing Material
Connection
Cable Length
Installation
24-0321 © Icon Process Controls Ltd.
Dual Beam
with Quartz
Glass Lens
TB550
9-36VDC
±5% of Measured Value
≤43.5Psi
32 - 113 F | 0 - 45 C
o o
0.01-4000NTU
MODBUS RS485
0.001 | 0.01 | 0.1 | 1 , When Matching the Controller
6s < 90s < 300s (Adjustable)
IP68 | NEMA6P
SS316L, POM
3/4" NPT
10m
Immersed
POM
SS316 Body
Fully Automatic
Electrode Scraper
