To unlock the sixth gear throttle on a Pedego Boomerang, set the pedal assist level to 6. Pedal assist level 6 does not provide pedal assist but keeps the throttle active, allowing you to use the throttle independently.

This answer is automatically generated

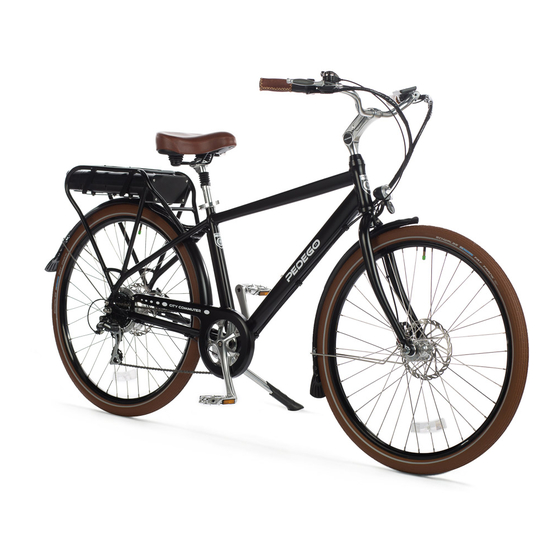

Summary of Contents for Pedego Boomerang

Page 1 ASSEMBLY INSTRUCTIONS & OWNERS MANUAL...
Page 3 We would like to thank you for choosing the Pedego electric bike. We believe this technology, with the benefits of electric propulsion, provides you with the perfect vehicle to increase your personal mobility. Our brushless electric motors allow you to run errands or commute to work while saving money on gas and reducing the environmental impact on our world.
Page 4 PLEASE NOTE: THIS MANUAL IS NOT INTENDED AS A DETAILED SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE. MUST BE 16 OR OLDER TO OPERATE.
Page 5: Table Of Contents
Troubleshooting Additional Safety FAQ's Operating Procedures Warranty Boomerang, Boomerang Platinum, City Commuter, City Pedego Care 5 Year Warranty Commuter Lite, City Commuter Additional Limited Warranty Mid-Drive, City Commuter Platinum, Comfort Cruiser, Serial Number Location Fat Tire Trike, Interceptor, Interceptor Platinum, Tandem...
Page 6: Warning
For replacement parts, technical information and warranty assistance, please contact Pedego at 800-646-8604 or support.pedego.com DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS.
Page 7 YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING THE USE OF THIS BICYCLE. TO DETERMINE IF COVERAGE IS PROVIDED YOU SHOULD CONTACT YOUR INSURANCE COMPANY OR AGENT. Warning...
Page 8: Carton Contents
Carton Contents Kit Box Pedals Owner’s Manual & Assembly Instructions Tool Kit Battery Charger QR Skewer / Thru Axle (some models) Pedego Bike Lithium Ion Battery Keys Carton Contents...
Page 9: Assembly Instructions
Assembly Instructions City Commuter Lite, Comfort Cruiser, Interceptor, Tandem Your bike has been pre-assembled and requires only a few simple steps to get it ready for you to ride: Remove the outside carton after cutting the nylon bands and lift off the entire box from the tray at the bottom. Carefully remove your bike from the bottom tray and gently rest it in place with the kickstand down.
Page 10 Figure 3 Figure 4 If need be, the angle of the handlebar may be positioned to your personal preference. Loosen the front 2 bolts on the front stem plate and angle the handlebar to your liking (Figure 3), then securely tighten the 2 bolts on the front stem plate. Make sure that, when tightening, there is even spacing between the top and bottom bolts to ensure even clamping force and maxi- mum stability (Figure 4).
Page 11 Make sure the seat is not set with the vertical maximum height marks above the clamp. If the disc brakes are rubbing after installation, refer to Support on our website at support.pedego.com Assembly Instructions...
Page 12 Using the 15 mm wrench provided in the tool kit, attach and tighten the pedals. PLEASE NOTE – The pedals are marked “L” for Left and “R” for Right. The left pedal is attached by turning it counterclockwise and the right pedal is tightened by turning it clockwise.
Page 13: Boomerang, Boomerang Platinum, City Commuter, City Commuter Mid-Drive, City Commuter Platinum, Stretch
Assembly Instructions Boomerang, Boomerang Platinum, City Commuter, City Commuter Mid-Drive, City Commuter Platinum, Stretch Your bike has been pre-assembled and requires only a few simple steps to get it ready for you to ride: Remove the outside carton after cutting the nylon bands and lift off the entire box from the tray at the bottom.
Page 14 Insert the 6 mm allen wrench (supplied in the kit) into the hole and tighten the screw clockwise until the stem does not move separately from the front wheel (Figure 3). Make sure the handlebar is aligned with the front wheel before tightening, and the stem is not set above the maximum height indicator.
Page 15 Assembly Instructions Boomerang, Boomerang Platinum, City Commuter, City Commuter Mid-Drive, City Commuter Platinum, Stretch Make sure the seat is tight enough so that you can’t twist it out of alignment. Pull the seat clamp handle away from the seat post and slide the seat up or down to adjust it (Figure 1).
Page 16 Using the 15 mm wrench provided in the tool kit, attach and tighten the pedals. PLEASE NOTE – The pedals are marked “L” for Left and “R” for Right. The left pedal is attached by turning it counterclockwise and the right pedal is tightened by turning it clockwise.
Page 17: Avenue, Element, Element Platinum, Interceptor Platinum, Ridge Rider, Trail Tracker, Trail Tracker Gorilla
Assembly Instructions Avenue, Element, Element Platinum, Interceptor Platinum, Ridge Rider, Trail Tracker, Trail Tracker Gorilla Your bike has been pre-assembled and requires only a few simple steps to get it ready for you to ride: Remove the outside carton after cutting the nylon bands and lift off the entire box from the tray at the bottom.
Page 18 Ridge Rider Install the front wheel by lining up the disc brake and placing the fork of the bike onto the front wheel. With the wheel in position, retrieve the thru axle from the kit box. Open the thru axle lever and align it with the cut-out. Insert the thru axle into the fork dropouts and wheel hub from the drive side (right side) of the bike.
Page 19 Assembly Instructions Avenue, Element, Element Platinum, Interceptor Platinum, Ridge Rider, Trail Tracker, Trail Tracker Gorilla Make sure the seat is tight enough so that you can’t twist it out of alignment. Pull the seat clamp handle away from the seat post and slide the seat up or down to adjust it (Figure 1).
Page 20 Make sure the pedals are tightly attached to the crank arms to prevent stripping. If the disc brakes are rubbing after installation, refer to Customer Help on our website at support.pedego.com Torque Specs Item Seatpost Clamp...
Page 21: Latch
Assembly Instructions Latch Your bike has been pre-assembled and requires only a few simple steps to get it ready for you to ride: Remove the outside carton after cutting the nylon bands and lift off the entire box from the tray at the bottom. Carefully remove your bike from the bottom tray and gently rest it in place with the kickstand engaged.
Page 22 5 mm allen wrench while in the clamped position. Make sure the seat is not set with the vertical maximum height marks above the clamp. If the disc brakes are rubbing after installation, refer to Customer Help on our website at support.pedego.com Assembly Instructions...
Page 23: Trike
Assembly Instructions Trike Your bike has been pre-assembled and requires only a few simple steps to get it ready for you to ride: Remove Trike from carton after cutting the nylon bands. Remove all of the inside cardboard protection and bubble wrap.
Page 24 Insert the 6 mm allen wrench (supplied in the kit) into the hole and tighten the screw clockwise until the stem does not move separately from the front wheel (Figure 3). Make sure the handlebar is aligned with the front wheel before tightening and the stem is not set above the maximum height indicator.
Page 25 Assembly Instructions Trike Insert seat post into seat tube. Make sure the seat is tight enough so that you can’t twist it out of alignment. Pull the seat clamp handle away from the seat post and slide the seat up or down to adjust it (Figure 1).
Page 26 Make sure the pedals are tightly attached to the crank arms to prevent stripping. If the disc brakes are rubbing after installation, refer to Support on our website at support.pedego.com Torque Specs Item Handlebar Stem...
Page 27: Cargo
Assembly Instructions Cargo Remove upper box and discard. Cut zip-ties securing front wheel to bike and set aside front wheel. Remove all foam, cardboard and zip-ties holding foam to frame. Put Cargo in a bike stand, securing the stand clamp to the seatpost.
Page 28 Remove brake caliper spacer from front caliper and put front wheel into position between fork dropouts. Tighten axle nuts with a 15mm wrench while making sure there is equal thread engagement on each side Install passenger package. (Optional). Install all three screws on handlebar. After tightening, remove the left and right screws - this is to ensure the holes are aligned when the seat cushion is installed.
Page 29 Install Front Rack (Optional). Remove hardware from front of head tube. Place rack in front of head tube and reinstall hardware. Check to insure all parts are torqued to spec, using below chart for reference. Torque Specs - Cockpit Component Tool Torque Brake Lever...
Page 30 Torque Specs - Drivetrain Component Tool Torque Derailleur Fixing 5mm Allen Key 10-12 Nm Bolt Derailleur Cable 5mm Allen Key 4-5 Nm Fixing Bolt Chainring and 5mm Allen Key 10 Nm Guard Crank Arms 8mm Allen Key 32-34 Nm (35 MAX) Pedals 15mm Pedal 35-40 Nm...
Page 31 Radiant Tail Light 4mm Allen Key 3-5 Nm Mount Secondary Battery 4mm Allen Key 5-7 Nm Sleeve Wood Package Side 4mm Allen Key 5-7 Nm Panels Wood Package 3mm Allen Key 3-5 Nm Foot Plates Storage 4mm Allen Key 5-7 Nm Compartment Multi-Function 4mm Allen Key...
Page 32: Moto
Assembly Instructions Moto Remove upper box and discard. Cut zip-ties securing front wheel to bike and set aside front wheel. Remove all foam, cardboard and zip-ties holding foam to frame. Put Moto in a bike stand, securing the stand clamp to the seat tube area, making sure to use a clean microfiber cloth between the frame and clamp to avoid damaging paint.
Page 33 Re-install axle, tighten axle bolt then all four pinch bolts. Install Saddle to frame.. Unscrew bolt from underneath the front of the saddle, line up the quick connect tabs and slide the saddle forward. Screw the bolt into the saddle, through the frame. Check to insure all parts are torqued to spec, using below chart for reference.
Page 34 Torque Specs - Fork Component Tool Torque Brake Caliper 5mm Allen Key 6-8 Nm Upper and Lower 5mm Allen Key 8-10 Nm Crown Axle 6mm Allen Key 12-15 Nm Axle Pinch Bolts 4mm Allen Key 5-7 Nm Headlight 6mm Allen Key 7-9 Nm Fender 4mm Allen Key...
Page 35 Torque Specs - Frame Tool Torque Component Rear Shock 5mm Allen Key 7-9 Nm Rear Swingarm 8mm Allen Key 15-18 Nm Main Pivot Foot Pegs 5mm Allen Key 10-12 Nm Rear Brake Caliper 5mm Allen Key 6-8 Nm Brake Rotors T25 Torx Key 4-6 Nm Rear Axle...
Page 36: Fat Tire Trike
Assembly Instructions Fat Tire Trike Remove upper box and discard. Cut zip-ties securing packaging material to trike. Remove all foam, cardboard and zip-ties holding foam to frame. Install stem and handlebar to steerer tube. Remove top cap and cardboard spacer from steerer tube. Place stem on steerer tube and reinstall top cap, tightening top cap bolt until there is no play in the headset, and the headset can rotate freely.
Page 37 Torque Specs - Cockpit Component Tool Torque Brake Lever 4mm Allen Key 5-7 Nm Shifter Lever 5mm Allen Key 4 Nm Throttle 3mm Allen Key 2 Nm 3mm Allen Key 0.5 Nm (0.6 Max) Multi-Function 3mm Allen Key 2 Nm Switch Stem Tube Clamp 6mm Allen Key...
Page 38 Torque Specs - Fork Tool Torque Component Brake Caliper 5mm Allen Key 6-8 Nm Axle 19mm Hex Wrench 40 Nm Torque Arm 5mm Allen Key 7-9 Nm Fender 4mm Allen Key 5-7 Nm Torque Specs - Frame Component Tool Torque Headbadge 5mm Allen Key 7-9 Nm...
Page 39 Always wear an approved helmet while riding your Pedego and follow the helmet manufacturer’s instructions for fit, use and care of your helmet. It is your responsibility to familiarize yourself with the laws of where you ride your Pedego and to comply with all applicable laws. Mechanical Safety Check: Check the condition of your Pedego before every ride.
Page 40 Pedego. Additional Passengers: Most Pedego models are designed for one passenger only (except for the Tandem, Cargo, Moto, Fat Tire Trike, and Stretch). DO NOT carry any additional passengers on the front or rear of the bike.
Page 41: Environmental Conditions And Temperature Limits
Environmental Conditions and Temperature Limits for Avenue, Boomerang, Boomerang Platinum, City Commuter, City Commuter Platinum, Fat Tire Trike, Interceptor, Interceptor Platinum, Latch, Ridge Rider, Tandem, Trail Tracker Charge Ambient Temperature Charge Ambient Temperature: 10° ~ 40° (50°F ~ 104°F), 65% ± 20% relative humidity.
Page 42 LED Status Indicator • Standby Mode: Green • Charging Mode: Red • Full Mode: Green • Protection Mode: Flashing Red Charger Information for Boomerang, Boomerang Platinum, City Commuter, City Commuter Platinum, Fat Tire Trike, Interceptor, Interceptor Platinum, Latch, Tandem Model: STC-8137LD Charging temperature: 0°C ~ 40°C (+32°F ~ 104°F)
Page 43 IMPORTANT SAFETY INSTRUCTIONS INCLUDING INSTRUCTIONS PERTAINING TO RISK OF FIRE OR ELECTRIC SHOCK FOR ALL MODELS WARNING - When using this product, basic precautions should always be followed, including the following: 1. Read all the instructions before using the product. 2.
Page 44: Moving & Storage Instructions
éléments suivants : 1. Lisez toutes les instructions avant d’utiliser le produit. 2. Pour réduire le risque de blessure, une surveillance étroite est nécessaire lorsque le produit est utilisé à proximité d’enfants. 3. Ne mettez pas les doigts ou les mains dans le produit. 4.
Page 45: Disposal Instructions
Do not throw them away with your household trash. To find out where to dispose of these components, please contact your local Pedego dealer. Maximum Speed Fat Tire Trike: Class 2: 15 MPH MAX...
Page 46: Weight Limits
Weight Limits Avenue, Boomerang, Boomerang Platinum, City Commuter, City Commuter Platinum, Element, Element Platinum, Interceptor, Interceptor Platinum, Latch, Ridge Rider, Trail Tracker: 250 lbs (113kg) Cargo, Fat Tire Trike, Moto, Stretch, Tandem: 400 lbs (181kg) Exceeding the maximum weight limit can result in damage of the bike which can lead to serious injury.
Page 47: Additional Safety
Additional Safety Stretch & Cargo Getting to Know Your Cargo Bike: Carrying a load and riding a long-wheelbase bike both require getting accustomed to. Practice maneuvering and braking on a flat, hazard and traffic-free street with and without a load before going out into the world.
Page 48 Children incapable of riding a bike on their own or under the age of 6 should not ride on the Pedego Stretch as passengers, unless it’s equipped with an approved Child Seat accessory.
Page 49: Operating Procedures
Operating Procedures Boomerang, Boomerang Platinum, City Commuter, City Commuter Lite, City Commuter Mid-Drive, City Commuter Platinum, Comfort Cruiser, Fat Tire Trike, Interceptor, Interceptor Platinum, Tandem To be able to use the electric motor, the battery must be mounted by sliding the fully charged battery forward into the battery holder.
Page 50 “|” position. Be sure to turn off the power when the Pedego is not in use or is recharging by clicking the battery switch to the off “O” position.
Page 51: Ridge Rider, Trail Tracker, Trail Tracker Gorilla
Operating Procedures Ridge Rider, Trail Tracker, Trail Tracker Gorilla To be able to use the electric motor, the battery must be mounted by placing the bottom of the fully charged battery into the down tube, then sliding the rest of the battery (using the base as a hinge) into the down tube.
Page 52 (it will light up green when powered on). Be sure to turn off the power when the Pedego is not in use by holding the same button for 3 seconds (the green light will turn off.)
Page 53: Stretch
“|” position. Be sure to turn off the power when the Pedego is not in use or is recharging by clicking the battery switch to the off “O” position.
Page 54 Upper Side Platform The upper attachment points have two bolts at the rear, and one at the front. The bolt closer to the wheel on the rear needs to be aligned with the hole in the side platform tube. The Rear Insert Front Insert remaining shorter bolts tighten...
Page 55: Latch
Operating Procedures Latch To be able to use the electric motor, the battery must be mounted by sliding the fully charged battery forward into the battery holder. Partially Removed Fully Inserted The battery automatically locks into the bike when fully inserted in the battery holder.
Page 56 “|” position. Be sure to turn off the power when the Pedego is not in use or is recharging by clicking the battery switch to the off “O” position.
Page 57 Folding Guide How to Fold the Pedego Latch Lower the seat all the way down. Rotate the crank arms to the 3 and 9 o’clock positions with the non-drive side towards the front of the bike. Lower Seatpost Position Pedals Fold both pedals.
Page 58 Fold the entire handlebar stem down. Put the kickstand up. Release Clamp Fold Stem Put Up Kickstand Open the Latch. Fold the bike in half. Undo Frame Latch Fully Open Latch Fold In Half Pin the front wheel to the rear wheel where it will lock into place.
Page 59: Trike
Operating Procedures Trike Caution All tricycles are susceptible to tipping at speed while turning. The rear bucket is not approved for transporting people. DO NOT EXCEED 12 MPH IN ANY RIDING CONDITIONS To be able to use the electric motor, the battery must be mount- ed by placing the bottom of the fully charged battery into the top tube, then sliding the rest of the battery (using the base as a hinge) into the top tube.
Page 60 Parking Brake Operation Your Pedego Trike is also equipped with a parking brake for both the front and rear levers. The parking brake is the silver pin located on the brake lever body. To lock the parking brake, pull the lever firmly, press down on the parking brake pin and release the lever.
Page 61: Element, Element Platinum, Avenue, Cargo
Operating Procedures Element, Element Platinum, Avenue, Cargo To be able to use the electric motor, the battery must be mount- ed securely into the bike. With the key in the horizontal position, or about 45 degrees counterclockwise from the locked position, insert the top of the fully charged battery into the downtube, then push the bottom of the battery up until it latches securely in the bike.
Page 62 To remove the battery, insert the key and turn it counterclockwise until the bottom of the battery drops slightly. There is a secondary release lever located beneath the battery near the key; while hold- ing the top of the battery with one hand, push or pull the second- ary release lever while holding the bottom of the battery with the other hand, and carefully remove the battery from the bike.
Page 63: Moto
Operating Procedures Moto Power On/Off the Battery Press and hold the power button for 1 second to power on/off the battery. Make sure the battery is powered off before installing or removing it from the bicycle. Installing the Battery Make sure the battery is powered off. From the drive side of the bike, place the bottom of the battery on the battery mount, then push the top of the battery towards the center of the bike until it locks in place.
Page 64 Removing the Battery Make sure the battery is powered off. From the non-drive side of the bike, insert and turn the key clockwise until the battery latch releases. Move the top of the battery towards the drive side of the bike until it clears the frame, then lift the battery up to remove it.
Page 65: Front Suspension Fork
Front Suspension Fork Avenue, Element Platinum, Boomerang Platinum, Cargo, City Commuter Platinum, Interceptor Platinum, Moto, Ridge Rider Front Suspension Travel & Sag Guide A suspension fork is effective at both absorbing bump forces and helping the tire track the ground for improved traction and braking control.
Page 66 Thread a suspension pump onto the valve until it is snug. Pump the suspension fork up to the desired pressure. Never exceed the recommended maximum air pressure. Pedego Model Fork Manufact. Max Pressure Boomerang & 175 psi Interceptor Platinum Ridge Rider RockShox 205 psi...
Page 67 Note: It may be necessary to lean against a wall when measuring sag. Measuring Sag Fork Lockout Some suspension forks are equipped with a lockout lever to make it easier to ride on flat ground when you don’t need the suspension. Cargo Fork Adjustments Coil spring pre-load (adjuster on top of left for leg) Turn the adjuster clockwise to increase the spring pre-load.
Page 68 Moto Fork Adjustments Compression w/ Lockout (Adjuster on top of right fork leg). Turn adjuster clockwise to increase compression damping or counter-clockwise to decrease compression damping. Turning the adjuster all the way clockwise will lock out the suspension. Rebound (Adjuster on the bottom of right fork leg) Turn the adjuster clockwise to increase rebound damping and counter-clockwise to decrease rebound damping.
Page 69: Gears
Drive, Fat Tire Trike, Interceptor, Stretch, Tandem, Trail Tracker, Trail Tracker Gorilla Your Pedego is equipped with 7 or 8 speeds. The first gear is for easier and uphill pedaling, and the last gear is for maximum speed on level or downhill terrain. Change gears only while pedaling.
Page 70 Gears Latch & Trike Your Pedego is equipped with a 3 speed Shimano Nexus internal hub. This system requires no derailleur, which makes for a quiet and clean experience! The shifter for the internal system is located on the left side of the handlebars. The gear ratio will enable you to ride the bicycle in any of the pedal assist modes.
Page 71 Commuter Platinum, Interceptor Platinum, Moto, Ridge Rider Your Pedego is equipped with 10 speeds. The first gear is for easier and uphill pedaling, and the last gear is for maximum speed on level or downhill terrain. Change gears only while pedaling.
Page 72: Disc Brakes
Mechanical Disc Brakes City Commuter Lite, Comfort Cruiser, Element, Latch, Trail Tracker 20”, Trike Your Pedego is equipped with disc brakes for maximum reliability. Applying hand pressure to the brake levers will engage the brake pads against the brake rotor, creating friction and slowing down the wheel.
Page 73 Figure 1 Figure 2 WARNING: Disc brake rotors become hot during use. Do not touch • or come in contact with the disc rotor shortly after use. Wet weather will require a longer distance to stop. Brake earlier • and avoid sudden stops when riding in wet conditions. New Brakes Bed-in Procedure New brakes will require a “bed-in”...
Page 74 Hydraulic Disc Brakes Element Platinum, Boomerang, Boomerang Platinum, Cargo, City Commuter, City Commuter Mid-Drive, City Commuter Platinum, Fat Tire Trike, Interceptor, Interceptor Platinum, Moto, Ridge Rider, Stretch, Tandem, Trail Tracker, Trail Tracker Gorilla Your Pedego is equipped with hydraulic disc brakes for maximum reliability.
Page 75 Figure 1 Figure 2 WARNING: Disc brake rotors become hot during use. Do not touch • or come in contact with the disc rotor shortly after use. Wet weather will require a longer distance to stop. Brake earlier • and avoid sudden stops when riding in wet conditions. Parking brake operation Fat Tire Trike Engage Parking Brake...
Page 76 New Brakes Bed-in Procedure New brakes will require a “bed-in” procedure prior to your first ride which will ensure the most consistent and powerful braking feel. Find a safe riding area that will allow for moderate speed. Remain seated during the entire procedure for optimal results. Important Note: Do not lock up the wheels at any point during the bed-in procedure.
Page 77: Multi Function Switch Operation
Multi Function Switch Operation Cargo, Fat Tire Trike, Moto Left/Right Turn Signal Press and release to turn on signal indefinitely, press again to turn off. Press and hold to turn on. Signal will turn off immediately when released. Headlight High/Low Beam Press and release to toggle high/low headlight beam when the headlight is on.
Page 78: Pedal Assist Mode & Meter
Your Pedego is equipped with an LCD meter that monitors pedal assist, speed, odometer, trip distance, riding time, and battery energy level. To turn the meter on, make sure the battery is fully inserted into the Pedego and the on/off switch is in the on “|” position. SPEEDOMETER BATTERY...
Page 79 Boomerang, City Commuter, City Commuter Lite, Interceptor, Latch, Stretch, Trail Tracker, Trail Tracker Gorilla Throttle Override Cadence Throttle Throttle Free Mode Only Only Ride Element Platinum, Boomerang Platinum, City Commuter Platinum, Interceptor Platinum, Ridge Rider Throttle Override Throttle Free Travel...
Page 80 Commuter Platinum, Interceptor, Interceptor Platinum, Latch, Ridge Rider, Stretch, Tandem, Trail Tracker, Trail Tracker Gorilla, Trike The LCD meter on your Pedego can be programmed to change various functions. Hold “SET” for 2 seconds to enter the setup interface. Single press “SET”...
Page 81 Press the power button (top button) once while the meter is on to turn on the backlight, as well as the integrated front and rear lights on the Pedego. Press it once more to turn the lights and backlight off.
Page 82 BMS Communication Element Platinum, Boomerang, Boomerang Platinum, City Commuter, City Commuter Mid-Drive, City Commuter Platinum, Interceptor, Interceptor Platinum, Latch, Ridge Rider, Stretch, Tandem, Trail Tracker and Trail Tracker Gorilla On the above models, the battery is equipped with a BMS (battery management system) with communication features.
Page 83: C300U
To turn the meter on, make sure the battery is fully inserted into the Pedego and the on/off switch is in the on “|” position (City Commuter & Comfort Cruiser only).
Page 84 Avenue, City Commuter Lite, Comfort Cruiser, Element Throttle Override Cadence Throttle Throttle Free Mode Only Only Ride Free Ride Cadence Mode Throttle Override Pedal just like a normal Reaches designated Full power on demand. bicycle with all the speeds while pedaling. Overrides pedal display features active.
Page 85 Meter Programming & Use (C300U) Avenue, City Commuter Lite, Comfort Cruiser, Element The LCD meter on your Pedego can be programmed to change various functions. Press and hold [+] & [-] for 2 seconds to enter the setup interface. Single press [ ] to cycle through the following modes: “SET 1”...
Page 86 Each meter has an integrated USB port located underneath to charge your mobile devices. Press and hold [ ] & [+] for 2 seconds to turn on the USB charge function; press and hold [ ] & [+] for 2 seconds to turn the USB charge function off.
Page 87: M500
Pedal Assist Mode (M500) Cargo, Fat Tire Trike, Moto Your Pedego is equipped with an LCD meter that monitors pedal assist, speed, odometer, trip distance, riding time, and battery energy level. To turn the meter on, make sure the battery is fully inserted into the Pedego and the power switch is turned on.
Page 88 Physical Buttons POWER & LIGHT SYSTEM PEDAL ASSIST, WALK MODE & MENU NAV CONTROLS TIME, TRIP, ODOMETER MENU, NAVIGATION & USB-C POWER SETTINGS MENU Interface Features TURN SIGNAL INDICATOR, SYSTEM CLASS, DRIVE MODE, POWER METER LIGHT SYSTEM & SPEED PERFORMANCE MODE BATTERY STATE LIGHT SENSOR STANDARD...
Page 89 Press the power button (top button) on the top of the display located near the left grip on the handlebars to turn the meter on. You can adjust the pedal assist power level to have more power by hitting the [+] button and can move to a lower level power by hitting the [-] button.
Page 90 Torque Assist Mode Throttle Override Throttle Free Torque Mode Only Ride Throttle Only Torque Assist Free Ride Full power on demand. Proportional Pedal just like a normal No automatic pedal assistance based on bicycle with all the assistance. how hard you pedal. display features active.
Page 91 - Trip Clear (Y/N): Clears the current trip. - Throttle Speed (MAX): Adjust the max speed for throttle. - Wheel Size: Adjust wheel size for Respective Pedego eBike Model to get accurate Speed Unit output. - Speed Unit (MPH/KMH): Adjust between Imperial and Metric speed output.
Page 92 - Battery (48V/52V): Adjust Battery Voltage to Meet Respective Pedego eBike Model. - Drive Mode (Front/Rear): Adjust Drive Mode Function Respective to your Pedego eBike Model. - Power On Password (Default=No Password): Set 4 Digit Password that requires input when turning bike on. To turn off password set to 0000.
Page 93 Settings Menu - Battery Information - Battery State of Charge - Battery Voltage - Battery Current - Battery Cycles - Battery Capacity Meter Programming Use...
Page 94 The farther the throttle switch is from its resting position, the more power is delivered to the motor to accelerate the Pedego. When you want to slow down, you simply release the throttle and let it return to its resting position and simultaneously apply the brakes.
Page 95: Throttle Control
The throttle is controlled by twisting it from its resting position. The farther the throttle switch is from its resting position, the more power is delivered to the motor to accelerate the Pedego. When you want to slow down, you simply release the throttle and let it return to its resting position and simultaneously apply the brakes.
Page 96: Lights
City Commuter Mid-Drive, City Commuter Platinum, Interceptor, Interceptor Platinum, Latch, Tandem, Trike Your Pedego comes equipped with an active brake light, that will illuminate when the brakes are engaged, in addition to the stan- dard integrated front and rear lights. To turn the lights on, push the power button on the LCD meter.
Page 97 Lights City Commuter Lite, Comfort Cruiser Your Pedego comes equipped with an integrated rear light that operates from the battery. To turn the rear light on, push the “rear light” button on the top of the battery. To turn the rear light off, repeat pushing down the “rear light”...
Page 98: Charger
Charger All Pedego Models Included with your new Pedego is a lithium ion battery, along with a charger, which plugs into a standard household electric outlet. A lithium ion battery requires specially designed chargers. You should never charge your battery with a substitute charger that is not designed for this use.
Page 99: Battery & Charger Care
• Do not operate the battery/charger if damaged. • Recharge the battery only with a charger specified by the manufacturer. • Do not use the battery/charger for any use other than its intended purpose. • Only use the battery/charger on Pedego approved products. Battery & Charger Care...
Page 100: Battery Sleep Functions
Battery Sleep Functions Label on Battery with Sleep Functions If your Pedego battery has either of the labels pictured, then it is equipped with automatic sleep functionality. Reference the conditions and procedures below to understand when the battery will go to sleep and how to wake it back up.
Page 101 To wake the battery from sleep, perform one of the two following procedures: Toggle power switch off/on Connect the battery to the provided Pedego battery charger The battery will go into deep sleep mode under the following conditions: When SOC <1% - Battery has gone idle for 10 minutes When SOC <10% - Battery transitioned to and kept in sleep...
Page 102 Battery Sleep Functions Moto Charge Wake Up Connect charger to battery to wake up from sleep. Power Switch Wake/Sleep Press and hold the power button for 1 second to wake up the battery or put it to sleep. Automatic Sleep Mode SOC≤1% = Sleep after 10 mins SOC>1% = Sleep after 48 hours SOC>10% = Sleep after 14 days...
Page 103: Tires & Inner Tubes
Recommended Tire Pressure Pedego Model Tire Model Tire Size PSI Range Schwalbe Big Ben 24" x 2.15" 30-55 psi Boomerang Schwalbe Fat Frank 26" x 2.35" 22-60 psi Schwalbe Big Apple 26" x 2.0" 35-70 psi City Commuter Schwalbe Fat Frank 28"...
Page 104: Kickstand
Please do not sit on your Pedego with the kickstand in the down position.
Page 105: Keys, Appearance Care & Maintenance
It is also recommended to apply chain lube (such as Tri-Flow or ProLink) to the drivetrain of your Pedego when you clean it or wipe it down to keep it in good running condition.
Page 106: Troubleshooting
Cruiser, Element, Interceptor, Interceptor Platinum, Latch, Ridge Rider, Stretch, Trail Tracker, Trail Tracker Gorilla, Trike If your Pedego is not working, check the Quick Disconnect fittings to make sure they did not come loose or unplugged. Quick Disconnects Quick Disconnects...
Page 107 Troubleshooting Tandem If your Pedego is not working, check the Quick Disconnect fittings to make sure they did not come loose or unplugged. Quick Disconnects Motor Disconnect There are 4 total colored Quick Disconnect fittings to check: 1. Throttle - Black 2.
Page 108: Faqs
Q. Can I ride up hills and against strong headwinds on my Pedego electric bike? A. Yes. One of the main advantages of cycling on a Pedego electric bicycle is that it flattens hills and increases your average speed when tackling inclines and headwinds.
Page 109 Q. Can I put a Pedego on a bike rack? A. Yes, just make sure that the bike rack can hold the weight of a Pedego. We advise taking the battery off to make it easier to lift and to keep the battery safe.
Page 110: Warranty
Warranty...
Page 111: Pedego Care 5 Year Warranty
Interceptor, Interceptor Platinum, Latch, Ridge Rider, Stretch, Tandem, Trail Tracker, Trail Tracker Gorilla, Trike https://www.pedegoelectricbikes.com/pedego-care-limited-warranty/ Please contact an authorized Pedego dealer for warranty claims. If there is not a dealer nearby, please contact Pedego headquarters for assistance. Warranty Requirements: 1. Proof of purchase 2.
Page 112 20% off replacement 55-60 months 10% off replacement Batteries can be assessed and found defective only by an authorized Pedego dealer or directly by Pedego Inc. This Limited Warranty does not cover: 1. Defects or damage resulting from accident, abuse, misuse, abnormal use (including...
Page 113 Changeover labor must be performed by an authorized Pedego dealer. Pedego reserves the right to use scratch and dent stock when replacing a frame under this warranty. Frame styles and/or colors not in stock may be replaced with a compatible style and/or color at the discretion of Pedego Inc.
Page 114 FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT WILL PEDEGO BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR FOR, WITHOUT LIMITATION, COMMERCIAL LOSS OF ANY SORT; LOSS OF USE, TIME, DATA, REPUTATION, OPPORTUNITY, GOODWILL, PROFITS OR SAVINGS;...
Page 115 (30) calendar days from the date of the original retail purchaser’s purchase of the Product, (1) sending notice by e-mail to optout@PEDEGO.com, with the subject line: “Arbitration Opt Out.” The opt-out email must include (a) the original retail purchaser’s name and address;...
Page 116: Additional Limited Warranty
30 days after the theft takes place. What is a Qualifying Lock? A Qualifying Lock is a bicycle lock which: (1) is either the Pedego Folding Lock, Pedego Chain Lock, the Foldylock Classic, the Kryptonite New-U New York Fahgettaboudit Mini U-lock, the Trelock BS 650 U-lock, the Abus U-lock Granit XPlus 540, or a bicycle lock of equivalent strength;...
Page 117 To obtain service under this Anti-theft Limited Warranty, you must have reported the theft of the Bike to police within forty-eight (48) hours of the theft, and you must submit to PEDEGO an Anti-theft Limited Warranty claim that includes the following material and information: (i) the original sales receipt or proof of purchase of the Bike showing the original date of purchase, the serial number of the Bike and the seller’s name and address;...
Page 118 Bike. No agent, employee, dealer, representative or reseller is authorized to modify or extend this Anti-theft Limited Warranty or to make binding representations or claims, 7 whether in advertising, presentations or otherwise, on behalf of PEDEGO regarding the Bike or this Anti-theft Limited Warranty.This Anti-theft Limited Warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
Page 119 (30) calendar days from the date of the original retail purchaser’s purchase of the Bike, (1) sending notice by e-mail to optout@PEDEGO.com, with the subject line: “Arbitration Opt Out.” The opt-out email must include (a) the original retail purchaser’s name and address;...
Page 120: Serial Number Location
Serial Location Serial Location Battery Serial Location Each Pedego battery has a serial number imprinted below a barcode on a sticker. In addition to the sticker, some metal battery cases will have the serial number engraved in a secondary spot.
Page 121 Pedego Care is more than a warranty. It's our "no excuses" promise to you. PEDEGO CARE *Product must be registered at time of purchase. See addendum for complete details. 100 MILE TUNE-UP* 1st ANNUAL SERVICE 5 Year Parts Warranty Date:...
Page 124 Follow us online: PedegoElectricBikes Pedego PedegoElectricBikes Pedego To find out more visit: pedego.com Part #: 85006...
