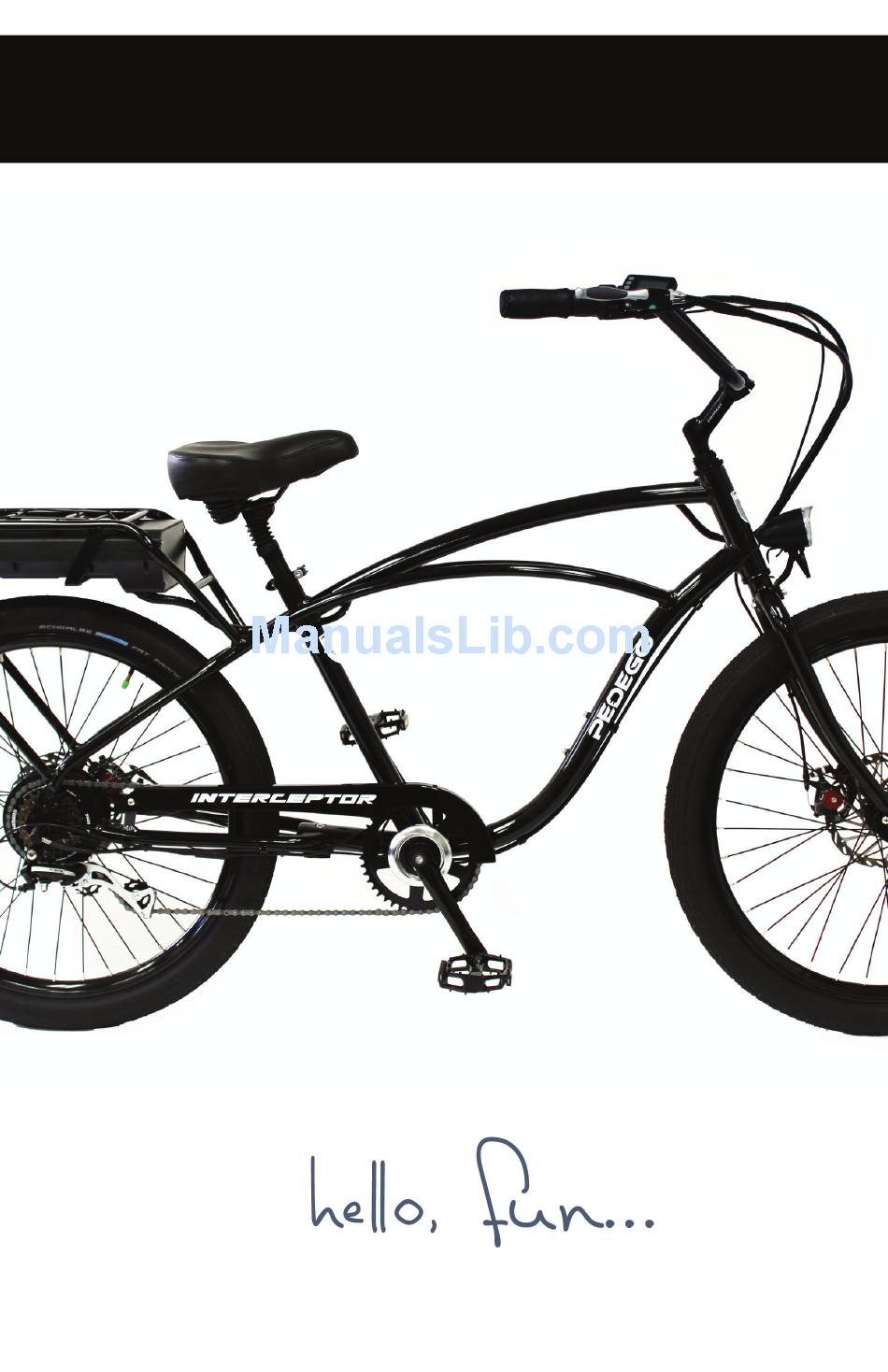

- Page 1 CITY COMMUTER & COMFORT CRUISER ASSEMBLY INSTRUCTIONS AND OWNERS MANUAL PEDEGO ELECTRIC BIKES...
-
Page 2: Table Of Contents
Hand Throttle Control Lights Gears Brakes Appearance Care Warranty Commonly Asked Questions Warning Your Bike Information / Serial Number Carton Contents Pedego Bike Pedals (2) Owner’s Manual/Assembly Instructions Lithium Ion Battery Keys for Battery Tool Kit Battery Charger Pg. 2 Pg. 3... - Page 3 Pedego Electric Bikes Welcome to the POG First of all, we would like to thank you for choosing the Pedego electric bike. We believe this technology, with the benefits of electric propulsion, provides you with the perfect vehicle to increase your personal mobility.
-
Page 4: Assembly Instructions
15mm wrench provided with your kit. Make sure that the hooked washers are on the outside of the fork and are properly secured. For City Commuter 6. Insert the handlebar stem into the head tube on the bicycle. You may adjust the height of the handlebars by moving the stem up or down to your comfort level. - Page 5 Figure 2. Figure 1. Move the stem so that you can see directly down the hole (Figure 1). Insert the 6 mm allen wrench, supplied in the kit, into the hole and tighten the screw clockwise until the handlebars do not move separately from the front wheel (Figure 3).
- Page 6 For Interceptor The angle of the handlebars may be positioned to your personal preference. Loosen the front 2 bolts on the front stem plate and angle the handlebars to your liking, then securely tighten the 2 bolts on the front stem plate. Make sure that, when tightening, there is even spacing between the top and bottom bolts to ensure maximum stability.
- Page 7 6. Make sure the seat is tight enough so that you can’t twist it out of alignment. Pull the seat clamp handle away from the seat post and slide the seat up or down to adjust it. Move the clamp handle inward toward the seat post so it is held tight by the clamp.
-
Page 8: Safety
Always wear an approved helmet while riding your Pedego and follow the helmet manufacturer’s instructions for fit, use and care of your helmet. It is your respon- sibility to familiarize yourself with the laws of where you ride your Pedego and to comply with all applicable laws. -
Page 9: Operating Procedures
“|” position. Be sure to turn off the power when the Pedego is not in use or is recharging by turning the battery on/off switch off. -
Page 10: Charger
Battery and Charger Included with your new Pedego is a lithium ion battery, along with a charger, which plugs into a standard household electric receptacle. A lithium ion battery requires specially designed chargers. You should never charge your battery with a substitute charger that is not designed for this use. -
Page 11: Battery And Charger Care
If the battery will not be used for an extended period of time, charge it fully and recharge it every 3 months. Store it in a cool, dry place. Your Pedego battery is engineered with precision for high capacity and a long, useful life. Do not use it to power other electrical devices. -
Page 12: Pedal Assist Mode
When first riding your Pedego, you will notice that when the pedal assist function is activated, the motor will supply power when you turn the pedals forward. -
Page 13: Meter Programming
To change the tyre size setting, hold the SET button (second button) for 10 seconds and then select the correct tyre size. The City Commuter bike has been preset to 28 inch, the Interceptor has been preset to 26 inch, and does not need to be changed. -
Page 14: Hand Throttle Control
15.5mph / 25kph. You do not need to pedal the Pedego if you use the hand throttle. However, you can pedal while commanding the throttle. If you do pedal while using the throttle, you conserve energy and the battery charge will last longer. -
Page 15: Gears
(Refer to page 9). Gears Your Pedego is equipped with 7 speeds. The first gear is for easier and uphill pedaling, and the last gear is for maximum speed on level or downhill terrain. -
Page 16: Brakes
Pedego will come to a stop. The rear brake should always be applied before and while the front brake is applied. Applying only the front brake to slow or stop at high speeds may result in the rider being ejected from the saddle and continu- ing forward over the handlebars. -
Page 17: Appearance Care
It is also recommended to apply chain lube (such as Tri-Flow or ProLink) to the drivetrain of your Pedego when you clean it or wipe it down to keep it in good running condition. -
Page 18: Warranty
Battery Replacement Price if your battery fails and needs replacing between the 25th and 36th month of ownership a replace- ment battery will be provided at a discounted cost based on a Pro-rata basis. a table of the pricing is on the Pedego Europe website http://pedegoeurope.com/company/pedego-limited-warranty-2/... - Page 19 “Ptc”), this limited warranty includes the cost of shipment or transportation of the Bicycle or Bicycle component(s) to or from PEDEGO EUROPE in accordance with the Ptc. if the Purchaser does not have a valid warranty claim as set forth in the Ptc, this limited warranty does not include such shipment or transportation costs.
-
Page 20: Commonly Asked Questions
Bicycle. For technical or warranty assistance please contact Pedego at ask@pedegoeurope.com YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING THE USE OF THIS BICYCLE. TO DETERMINE IF COVERAGE IS PROVIDED, YOU SHOULD CONTACT YOUR INSURANCE COMPANY OR AGENT. - Page 21 SERIAL nUMBER IS EnGRAvED UnDERnEATH THE FROnT CRAnK OF YOUR PEDEGO. Pg. 20 Pg. 21...
-
Page 22: Your Bike Information / Serial Number
Recording Your Pedego Info SERIAL nUMBER: ______________________________________ MODEL: ______________________________________________ COLOUR: _______________________________________________ DATE OF PURCHASE:___________________________________ DEALER’S nAME:______________________________________ DEALER’S PH#:________________________________________ DEALER’S E-MAIL:______________________________________ KEY CODES:_____________________________________________ PLEASE RE GISTER Y O UR P E DE GO AT ww w.PE DEGOEUROP E.CO M Pg. 22... - Page 23 PEDEGO EUROPE www.pedegoeurope.com Pg. 22...
