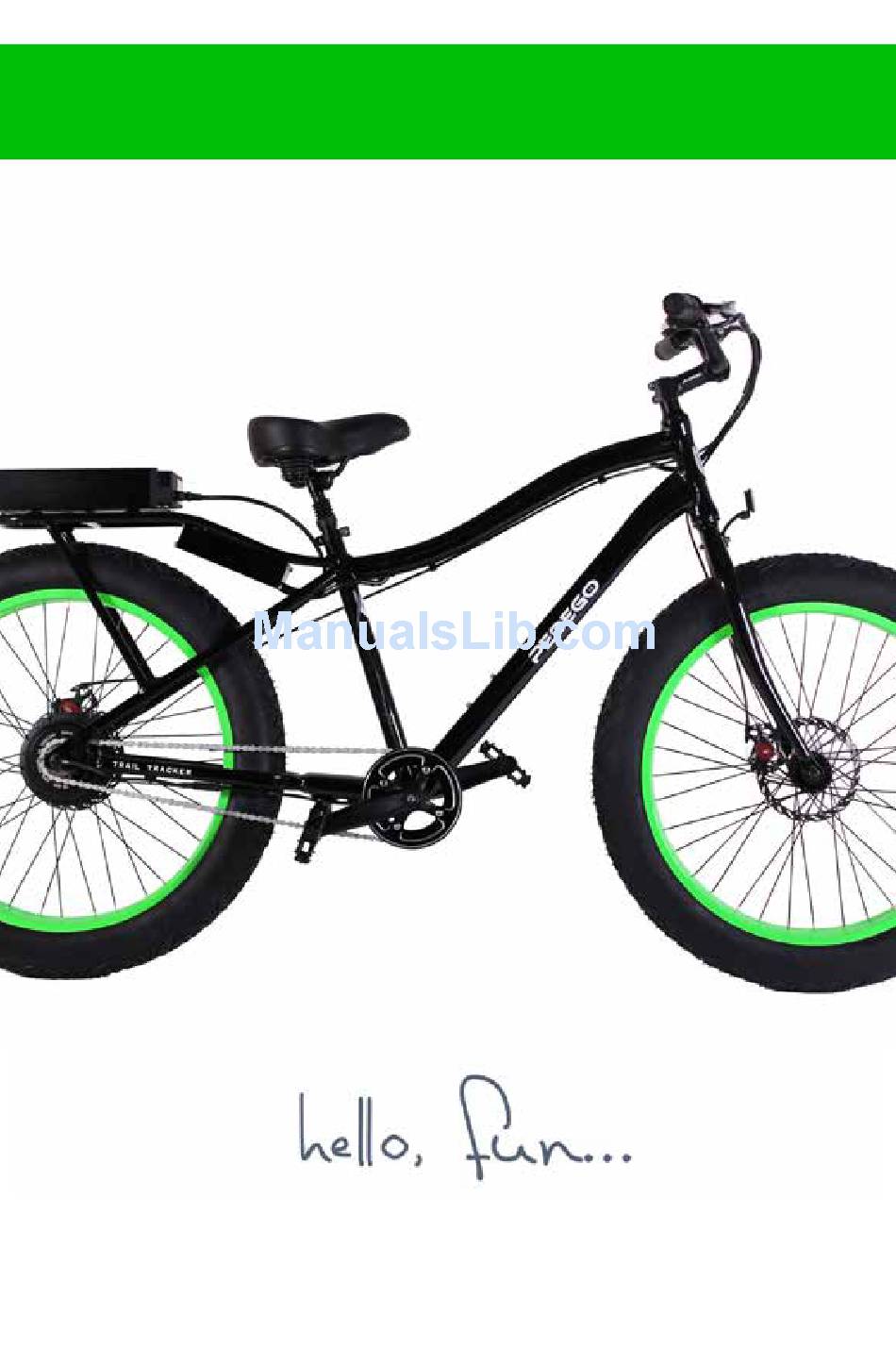

- Page 1 TRAIL TRACKER ASSEMBLY INSTRUCTIONS AND OWNERS MANUAL PEDEGO ELECTRIC BIKES...
-
Page 2: Table Of Contents
Keys Kickstand Brakes Additional Passengers Appearance Care Fuse Warning Commonly Asked Questions Warranty Serial Number Your Bike Information Carton contents Trail Tracker Bike Pedals (2) Owner’s Manual/Assembly Instructions Lithium Ion Battery Keys for Battery Tool Kit Battery Charger Pg. 2... - Page 3 Pedego Electric Bikes Welcome to the POG First, we would like to thank you for choosing the Pedego electric bike. We believe this technology, with the benefits of electric propulsion, provides you with the perfect vehicle to increase your personal mobility.
-
Page 4: Assembly Instructions
Assembly Instructions Your bike has been pre-assembled and requires only a few simple steps to get it ready for you to ride: 1. Remove the outside carton after cutting the nylon bands by lifting off the entire box from the tray at the bottom. 2. - Page 5 7. Make sure the seat stem is clamped tight enough so that you can’t twist it out of alignment. Pull the seat clamp handle away from the seat post and slide the seat up or down to adjust the height. Move the clamp handle inward toward seat post so post is held tight by the clamp.
-
Page 6: Safety
Safety Helmet: Always wear an approved helmet when riding your Pedego and follow the helmet manufacturer’s instructions for fit, use and care of your helmet. It’s your respon- sibility to familiarize yourself with the laws of the areas where you ride and to comply with all applicable laws. -
Page 7: Operating Procedures
Operating System The red power button located on the right handle toggles on-off. You can ride the Pedego as a normal bike by just leaving the switch off. RED POWER BUTTON To be able to use the electric motor, the battery must be mounted by sliding the fully charged battery forward onto the rear rack, over the rear wheel, through the channels on the battery while the carry handle is positioned at the rear. -
Page 8: Battery And Charger Care
Battery and Charger Care Included with your new Pedego is a lithium ion battery, along with a charger, which plugs into a standard 110 volt household electric receptacle. A lithium ion battery requires specially designed chargers. You should never charge your battery with a substitute charger that is not designed for this use. - Page 9 To charge the battery, plug the charger into an AC outlet. The LED indication light should be green showing the charger is working normally. Then plug the charger into the charging port located on the side of the battery under- neath the battery handle.
-
Page 10: Hand Throttle Control
Hand Throttle Control The throttle control is operated with the right hand. It is located immediately to the right of the battery charge indicator lights You control the throttle by twisting it from its resting position. The farther the throttle switch is from its resting position the more power is delivered to the motor to accelerate the Pedego. -
Page 11: Keys
Keys A set of keys are included with your new Pedego Trail Tracker. The Trail Tracker keys are used to turn the battery on or off as well as locks the battery into place. Always make sure that the key position is in the “unlock” setting when removing or insert- ing the battery. -
Page 12: Brakes
Brakes Your Pedego is equipped with disc brakes for maximum reliability. Applying pressure to the brake levers will cause the brake to create friction against the brake rotor, slow- ing the wheel. The more pressure applied to the brake lever, the faster the Pedego will come to a stop. The rear brake should always be applied before, and while, the front brake is applied. -
Page 13: Additional Passengers
Additional Passengers Pedego Trail Trackers are designed for one passenger only. DO NOT carry any additional passengers on the front or rear of the bike. The rear carrier is not designed to carry the weight of any additional passengers, including baby carriers. Appearance Care Periodically clean your Pedego electric bike with a damp cloth. -
Page 14: Warning
Warning: Electric Bikes can be dangerous to use. The user or consumer assumes all risk of personal injuries, damage, or failure of the Bicycle or system and all other losses or damages to himself and others and to any property arising as a result of using the Bicycle. For technical or warranty assistance please contact Pedego at 800-646-8604. -
Page 15: Commonly Asked Questions
Electric Bikes FAQ Q. How long does it take to fully charge the battery? A. Depends on the state of discharge but not more than 4 hours if completely discharged. Q. What are the running costs for a Pedego electric bike? A. -
Page 16: Warranty
ONE YEAR LIMITED WARRANTY BICYCLE COMPONENTS PEDEGO, LLC (“PEDEGO”) warrants that all new PEDEGO Electric Bikes (“Bikes”) and components therein are warranted to the original retail purchaser (“Purchaser”) against manufacturing defects in materials and/or workmanship for a period of one (1) year from the date of original retail purchase. - Page 17 THREE YEAR LIMITED WARRANTY BATTERY PEDEGO ELECTRIC BIKES warrants to the original purchaser that the battery is free of defects in material and workmanship for 36 Months. The warranty period for a battery is calculated from the original battery purchase date. The original receipt of purchase is required to establish proof of purchase and warranty date, and must be provided to Pedego for all warranty claims.
-
Page 18: Serial Number
SERIAL NUMBER IS ENGRAvED UNDERNEATH THE FRONT CRANK OF YOUR PEDEGO. Pg. 18... -
Page 19: Your Bike Information
Recording Your Pedego Info Serial Number: ______________________________________ model: ______________________________________________ Color: _______________________________________________ date of PurChaSe:___________________________________ dealer’S Name:______________________________________ dealer’S Ph#:________________________________________ dealer’S email:______________________________________ P l e a Se r eG i Ste r Yo ur Pe deGo at W WW. PedeG o.Com Pg. 19... - Page 20 1751 l a n g l e y av e 92614 i rv i n e www.pedego.com 800-646-8604...
