LACAVA
®
Owner's Manual

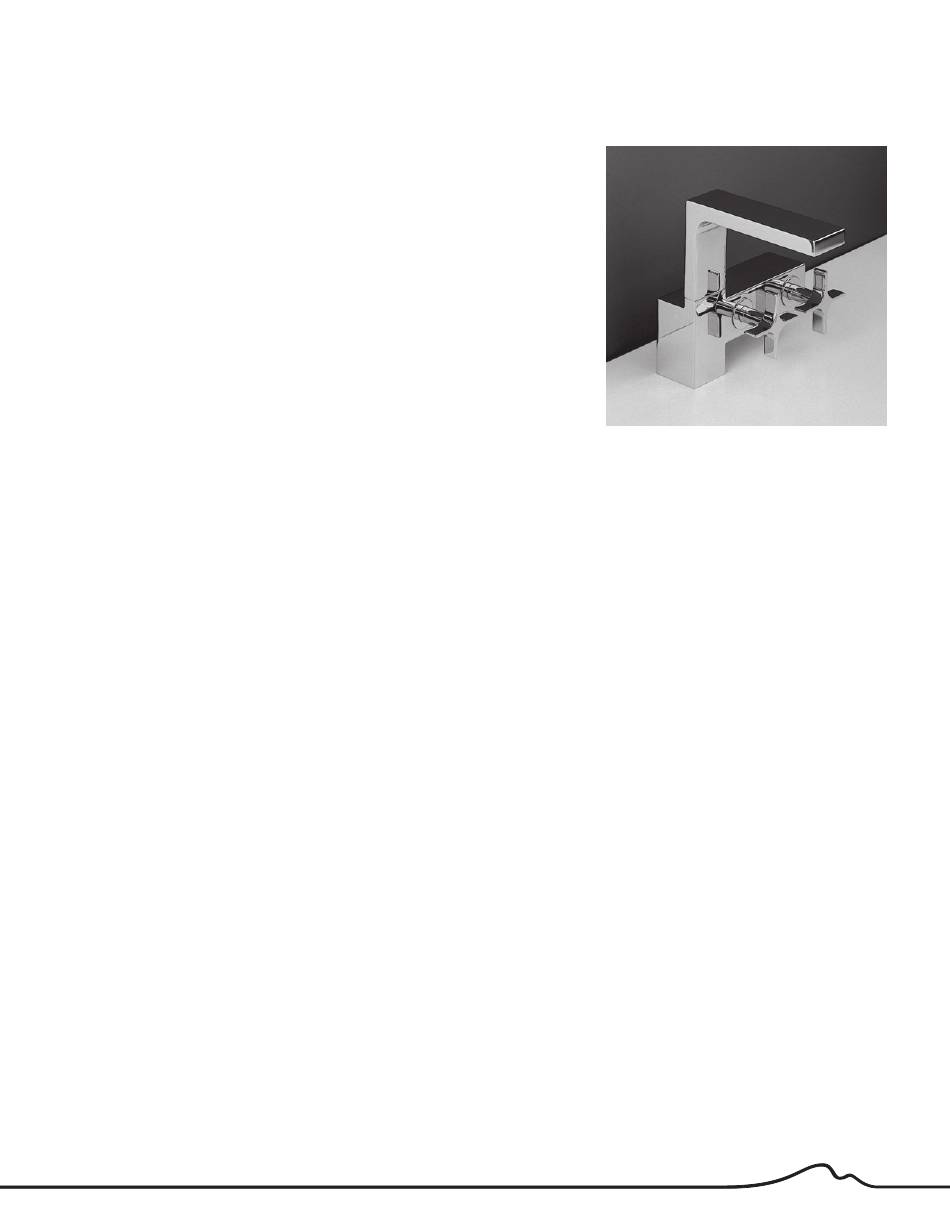

WATERBLADE
single-hole faucet
Item: W1010
Features:
-Deck-mount single hole faucet with two cross handles
-Brass construction with single ceramic disc cartridge
-Includes flexible supply lines and pop-up drain assembly
-Flow rate: 2 GPM pressure compensating regulator
-It can be installed to meet ADA compliance
Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within
the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and
will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to
ensure that this fixture complies with all local plumbing codes. Shut off water supply before starting installation. Please see
the Terms & Conditions found within this booklet for additional information.
Importante: Guarde este manual para futura asistencia técnica y / o piezas de repuesto. Por favor, lea las instrucciones
en el folleto cuidadosamente antes de la instalación. LACAVA recomienda que este aparato sea instalado por un técnico
y no se hace responsable de los daños causados por una instalación incorrecta. Es la responsabilidad del propietario
garantizar que este aparato cumpla con todos los códigos de plomería locales. Por favor, consulte nuestros Términos y
Condiciones que se encuentran en este folleto para información adicional.
Table of Contents/Contenido:
Page 2: Product Specifications/Especificaciones de Producto
Page 3: Parts Breakdown/Desglosamiento de Partes
Page 4: Installation Instructions/Instrucciones de Instalación
Page 5: Cleaning & Care/Cuidado y Limpieza
Page 6: Warranty/Garantía
Page 7: Terms and Conditions/Términos y Condiciones
6630 West Wrightwood Ave. Chicago, IL 60707 tel 773 637 9600 fax 773 637 9601 info@lacava.com www.lacava.com
Advertisement
Related Manuals for Lacava WATERBLADE W1010
Summary of Contents for Lacava WATERBLADE W1010
- Page 1 Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to ensure that this fixture complies with all local plumbing codes.
- Page 2 Max 1 3/4" 2 x 3/8" 1 1/4" Note: Drawings provided herein are meant to give the user an idea of the product and are not made to scale. The sizes in inches are rounded up to the nearest 1/16. LACAVA LLC...
- Page 3 Parts Breakdown/Desglosamiento de Partes Parts: RCMB133 - Replacement ceramic cartridge pair Note: Please reference this sheet and the corresponding part number when requesting parts. LACAVA LLC...
- Page 4 2. Install the supply lines into the base of the fixture. 3. Remove the washers and nut. Insert the fixture through the mounting surface. 4. Install the washers and nut according to the diagram. WARNING: overtightening the nut can potentially damage the mounting surface. LACAVA LLC...
- Page 5 - Nunca use materiales abrasivos o productos de limpieza que contienen amoníaco, lejía o ácido, ya que pueden causar daños a la superficie acabada. ¡Nos gustaría darle las gracias por su compra y estamos seguros que usted podrá disfrutar de nuestros productos por muchos años! LACAVA LLC...
- Page 6 If a defect is found under normal use, while under warranty, LACAVA will repair or replace the product (whichever cost is smaller to LACAVA) at its own expense (excluding shipping and installation charges).
- Page 7 RETURN POLICIES: If the product is not satisfactory for any reason different from defects, it can be returned to LACAVA LLC up to 30 days from the shipping date after obtaining a Return Goods Authorization (RGA) valid for 60 days. If the product is not returned to LACAVA within that timeframe, the RGA will be voided and no further RGAs will be issued for the product.
- Page 8 Autorización de Devolución de Bienes (RGA), válida por 60 días. Si el producto no se devuelve a LACAVA dentro de ese plazo, la RGA se anularán y no se RGA se emitirán nuevos para el producto.
