- Page 1 User Manual Support@Firecoretools.com...
- Page 2 Congratulations! You have chosen one of our laser tools that's guaranteed reliable and tough for users at various job sites. • Product Overview • Safety Instructions • Operation Modes • User Guide, Maintenance and Care • Troubleshooting • Specifications • Warranty <...
-
Page 3: Product Overview

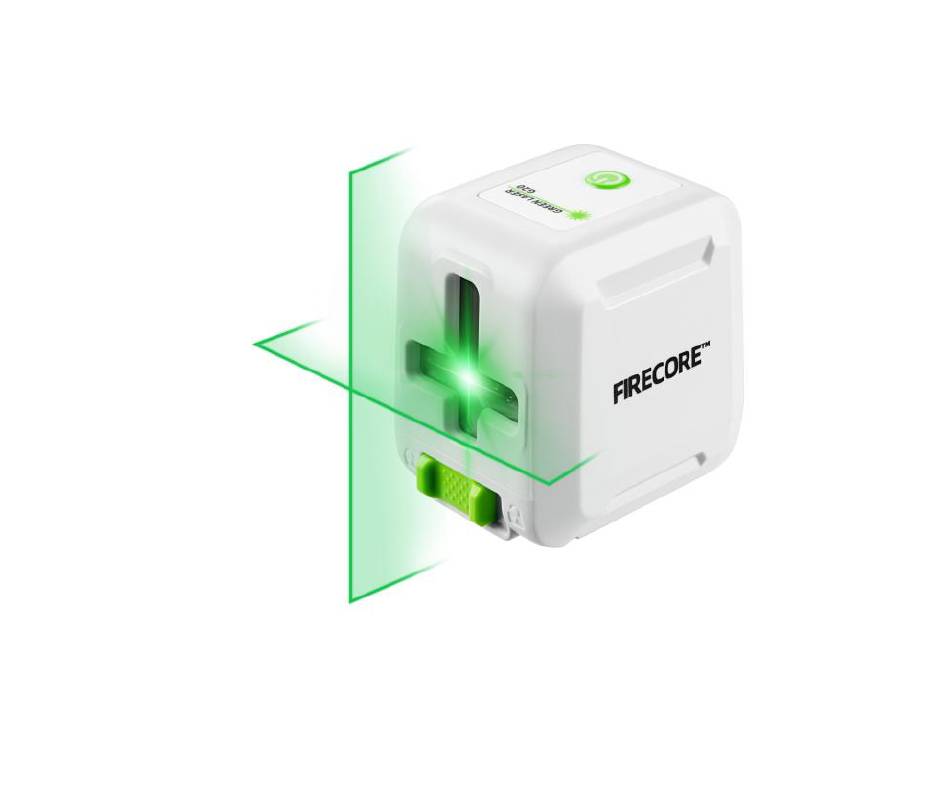

Product Overview 1.Top Button 4.1/4-20 Mounting Thread 2.Laser Window 5.Battery Compartment 3.Power/Lock < 2 >... -
Page 4: Safety Instructions
Safety Instructions WARNING: • Read the Safety Instructions and User Manual thoroughly before using this product. All users must fully understand and adhere to t hese instructions. WARNING: • The following label/print samples are placed on the product to inform of the lase class for your convenience and safety. <... - Page 5 • Do not stare directly into the beam (red or green light source) or view directly with optical instruments or set up the laser at eye level • Do not disassemble the laser tool. There are no user serviceable parts inside. •...
-
Page 6: Operation Modes
Operation Modes General Operation Notes: • Push the latch to open the battery cover, insert two new AA batteries, following the polarity (+/-) as indicated on the inner of the compartment. • Press or slide power switch to unlocked position to turn the laser tool ON. - Page 7 • Under self-leveling mode, laser beam(s) will blink fast if the tool is beyond self-leveling range (士4°) Manual Mode • Manual Mode is enabled when the pendulum lock is in its locked position and long press the top button, place the laser tool at various angles to project non-level straight lines.In this mode, the laser lines are projected continuously and will not blink, even if the slope angle exceeds 4°.
- Page 8 UserGuide,MaintenanceandCare • The laser tool is sealed and calibrated at the plant to the accuracies specified. • It's recommended to do accuracy check before its first use and periodic checks during future use especially for precise layouts • When not in use please power OFF the tool and keep the pendulum locked in its locked position.
-
Page 9: Troubleshooting
• Do not store the laser tool in direct sunlight or expose it to high temperatures. The housing and some internal parts are made of plastics and may become deformed at high temperatures. • Exterior plastic parts may be cleaned with a damp cloth. Although these parts are solvent resistant, NEVER use solvents. -
Page 10: Specification
on a more level surface (within ±4°). Q: The laser line projection is weak. A: Batteries are weak. Try to install new batteries. Q: The laser line is hard to see. Q: The tool is too far from the target or the surrounding is too bright. -
Page 11: Warranty
IP Rating IP54 water & dust resistant Operation Temperature Range -10°C~+50°C Storage Temperature Range -20"C~+60°C 7 x 5.6 x 7.2 cm Dimensions(W x H x D) (2.76 x 2.2 x 2.83 inches) Net Weight 200g (0.44 lbs) Warranty We are confident in the quality of our products and offer outstanding guarantee for professional users. - Page 12 ● The product has been subject to fair wear and tear; ● The product has not been misused; Defective products will be repaired or replaced, free of charge or at our discretion, if sent together with proof of purchase to our authorized distributor(s.) This Warranty does not cover faults caused by accidental damage, unfair wear and tear, and use other than in accordance with the...
- Page 13 You can enjoy 12 months limited warranty but up to 24 months longer warranty if you sign up as a member through the product registration. Please scan the QR code above to activate your priority. If you have any question or confusion about the product, please feel free to contact us via this email address, we will respond you within 24 hours: support@Firecoretools.com...
