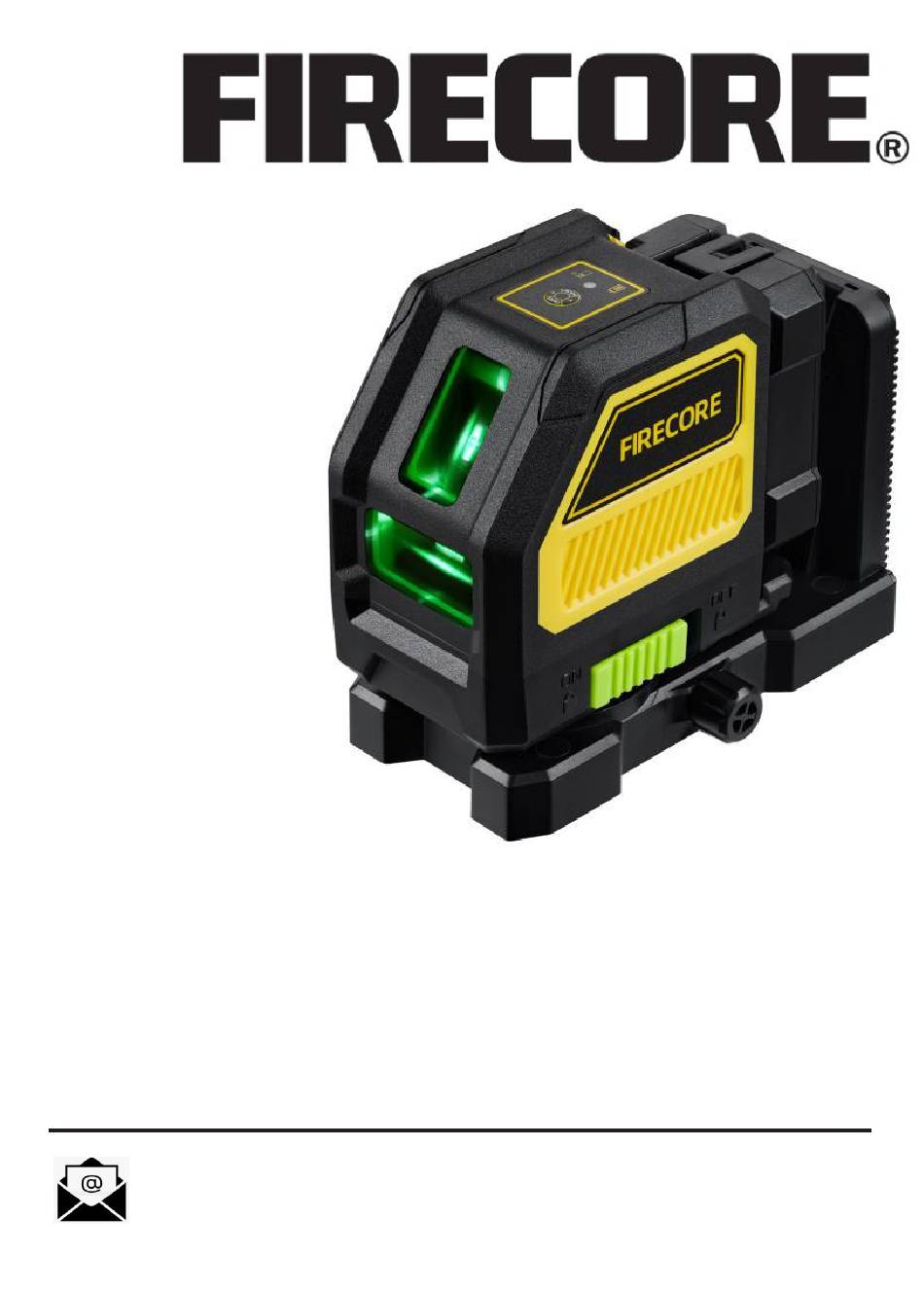

FIRECORE F114G Manual

40m/130ft self-leveling cross line laser

Advertisement

Quick Links

40M/130FT
SELF-LEVELING
CROSS LINE LASER
MODEL F114G
Questions, problems, missing parts? Before returning to your retailer, contact
us by email: support@Firecoretools.com.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F114G and is the answer not in the manual?

Questions and answers

Summary of Contents for FIRECORE F114G

  • Page 1 40M/130FT SELF-LEVELING CROSS LINE LASER MODEL F114G Questions, problems, missing parts? Before returning to your retailer, contact us by email: support@Firecoretools.com.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Specifications ..........2 Safety Instructions .
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS WARNING • Do not remove or deface any product labels. • Avoid direct eye exposure. The laser beam can cause flash blindness. • Do not operate the tool around children or allow children to operate the tool. • Do not place the tool in a position that may cause anyone to stare at the laser beam, whether intentionally or unintentionally.
  • Page 4: Unpacking

    UNPACKING When unpacking the box, do not discard any packing materials until all of the contents are accounted for: a. Open the carton to locate the following: • Self-leveling cross line laser with magnetic pivoting base • 3 X AA alkaline batteries •...
  • Page 5: Description

    • Soft bag DESCRIPTION KNOW YOUR GREEN SELF-LEVELING CROSS LINE LASER This self-leveling cross line laser is highly versatile. It can be hand-held, leveled on a horizontal surface or mounted on a tripod or laser pole. PARTS DESCRIPTION Operation Button Vertical &...
  • Page 6 OPERATION 1. TO INSTALL BATTERIES The battery compartment holds three “AA” batteries. a. Remove the battery compartment from the laser and open the battery compartment b. Insert four new “AA” alkaline batteries, following the polarity (+/-) as indicated on the inner of the compartment. c.
  • Page 7 OPERATION 2. TO TURN THE GREEN BEAM SELF-LEVELING CROSS LINE LASER ON AND The power switch is located at the bottom of left side of the tool. a. To turn the self-leveling cross line laser on, slide the power switch in the direction of the “ON”...
  • Page 8 OPERATION 4. SELF-LEVELING MODE Your self-leveling cross line laser has two working modes: self-leveling mode and lock (manual) mode. In self-leveling mode, the tool will level itself if it is within ±4° of horizontal. a. Place the self-leveling cross line laser on a flat, smooth surface that is within ±4°...
  • Page 9 Note: ●When use with a receiver, it’s necessary to turn on the pulse mode ●It is compatible with Firecore Line Laser Receiver only. GREEN BEAM SELF-LEVELING CROSS LINE LASER...
  • Page 10: Operation

    OPERATION 7. APPLICATIONS Your green beam self-leveling cross line laser can be hand-held for point marking and simple alignment by sight, or it can be used to make a “chalk line” by using the lock mode. It also can be mounted on a standard 1/4" tripod to project laser lines on walls.
  • Page 11: Maintenance

    MAINTENANCE This self-leveling cross line laser has been designed to be a low-maintenance tool. However, in order to maintain its performance, you must always follow these simple directions: a. Avoid exposing the tool to shock, continuous vibration or extreme hot or cold temperature.
  • Page 12: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION The laser line Batteries are weak. Replace with new batteries. projection is weak. The tool is too far from Move the tool closer to the the target. target. The laser line is Switch to receiver(pulse) hard to see. The surrounding is too mode and find the laser bright.
  • Page 13: Warranty

    WARRANTY We are confident in the quality of our products and offer outstanding guarantee for professional users. This statement is in addition to and in no way prejudices your contractual rights as a professional user to your statutory rights as a private non-professional user.
