- Page 1 L2+ Managed Gigabit Switch WGSW-24040HP4 Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Requirements ....................4 3. Terminal Setup ....................5 3.1 Logging on to the Console ............... 6 3.2 Configuring IP Address ................8 3.3 Storing Current Switch Configuration ............9 4. Starting Web Management ................10 4.1 Logging on to the Managed Switch ............11 4.2 Saving Configuration ................ -
Page 3: Package Contents

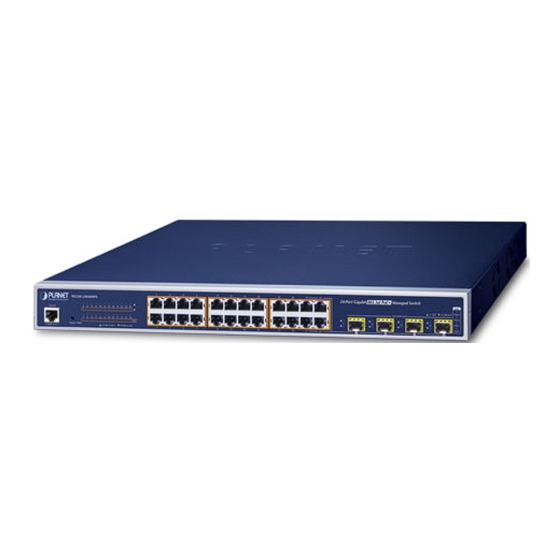

1. Package Contents Thank you for purchasing PLANET WGSW-24040HP4 Managed Gigabit Switch. The description of the WGSW-24040HP4 is shown below: Model TP Port Fiber Port Combo Port PoE Budget WGSW-24040HP4 440W “Managed Switch” is used as an alternative name in this Quick Installation Guide. Open the box of the Managed Switch and carefully unpack it. The box should... -
Page 4: Requirements
2. Requirements z Workstations running Windows 7/8/10/11, macOS 10.12 or later, Linux Kernel 2.6.18 or later, or other modern operating systems are compatible with TCP/IP Protocols. z Workstations are installed with Ethernet NIC (Network Interface Card) z Serial Port Connection (Terminal) The above Workstations come with COM Port (DB9) or USB-to-RS232 converter. -
Page 5: Terminal Setup
3. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to DB9 type of serial port of the Managed Switch. PC / Workstation with Terminal Emulation Software Managed Switch RS232 to RJ45 Cable Serial Port RJ45 Console Port Figure 3-1: Managed Switch Console Connectivity A terminal program, such as Tera Term or PuTTY, is required to make the software connection to the Managed Switch. -
Page 6: Logging On To The Console
3.1 Logging on to the Console Once the terminal is connected to the device, power on the Managed Switch, and the terminal will display “running testing procedures”. Then, the following message asks to log in user name and password. The factory default user name and password are shown as follows and the login screen in Figure 3-3 appears. - Page 7 (2) This device must accept any interference received, including interference that may cause undesired operation. Made in Taiwan PLANET Technology Corp. Figure 3-4: Managed Switch MAC ID Label Enter the default username and password, then set a new password according to the rule-based prompt and confirm it. Upon success, press any key to return to the...
-
Page 8: Configuring Ip Address
3.2 Configuring IP Address The Managed Switch is shipped with default IP address shown below. IP Address: 192.168.0.100 Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the Managed Switch, please use the procedures as follows: Show the current IP Address 1. At the “#” prompt, enter “show ip interface brief”. 2. The screen displays the current IP address as shown in Figure 3-6. Figure 3-6: IP Information Screen Configuring IP Address 3. At the “#” prompt, enter the following command and press <Enter> as shown in Figure 3-7. WGSW-24040 # configure terminal WGSW-24040 (config)# interface vlan 1 WGSW-24040 (config-if-vlan)# ip address 192.168.1.100 255.255.255.0 Figure 3-7: Configuring IP Address Screen... -
Page 9: Storing Current Switch Configuration
The previous command would apply the following settings for the Managed Switch. IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0 4. Repeat step 1 to check if the IP address has changed. If the IP is successfully configured, the Managed Switch will apply the new IP address setting immediately. You can access the Web interface of the Managed Switch through the new IP address. 3.3 Storing Current Switch Configuration In the Managed Switch, the running configuration sequence running-config can be saved from the RAM to FLASH by “copy” command, so that the running configuration sequence becomes the start-up configuration file, which is called configuration save. -
Page 10: Starting Web Management
4. Starting Web Management The following shows how to start up the Web Management of the Managed Switch. Note the Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. For example, the default IP address of the Managed Switch is 192.168.0.100, then the manager PC should be set to 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0. -
Page 11: Logging On To The Managed Switch
4.1 Logging on to the Managed Switch 1. Use Chrome 98.0.xxx or above Web browser and enter IP address https://192.168.0.100 (the factory default IP address or the one that you have just changed in console) to access the Web interface. The following web screen is based on the firmware version before April of 2024. - Page 12 (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. PLANET Technology Corp. Made in Taiwan Figure 4-3: Managed Switch MAC ID Label Figure 4-4: Login Screen...
- Page 13 6. After logging in, you will be prompted to change the initial password to a perma- nent one. Figure 4-5: Create a New Password 7. Enter the default username and password, then set a new password according to the rule-based prompt and confirm it. Upon success, press any key to return to the login prompt. Log in with “admin” and the “new password” to access the Web interface. Figure 4-6: Web Main Screen of Managed Switch...
- Page 14 The Switch Menu on the top of the Web page lets you access all the commands and statistics the Managed Switch provides. The Switch Menu always contains one or more buttons, such as “Refresh”, “Save”, “Help” and “Logout”. Figure 4-7: Switch Menu Figure 4-8: Switch Menu – System If you are not familiar with Switch functions or the related parameter, press “Help icon” anytime on the Web page to get the help description. Now, you can use the Web management interface to continue the Switch management or manage the Switch by console interface.
-
Page 15: Saving Configuration
4.2 Saving Configuration To save all applied changes and set the current configuration as a startup configuration on the Web user interface, the startup-configuration file will be loaded automatically across a system reboot. 1. Click the Save icon on the top Switch Menu bar. Figure 4-9: Save Config -- Hot Key 2. -
Page 16: Recovering Back To Default Configuration
10 seconds. After the device is rebooted, you can log in the management Web interface within the same subnet of 192.168.0.xxx. WGSW-24040HP4 10 12 14 16 18 20 22 24 Console 17 19 21 23 11 13 15 Reset PoE-in-Use 115200, N, 8, 1 Reset Button Figure 5-1: WGSW-24040HP4 Reset Button... -
Page 17: Customer Support
6. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. PLANET online FAQs: https://www.planet.com.tw/en/support/faq Switch support team mail address: support@planet.com.tw WGSW-24040 Series and WGSW-20160HP User’s Manual: https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword=WG S&view=3#list (Please select your switch model name from the drop-down menu of Product Model.) Copyright © PLANET Technology Corp. 2024. Contents are subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp.
