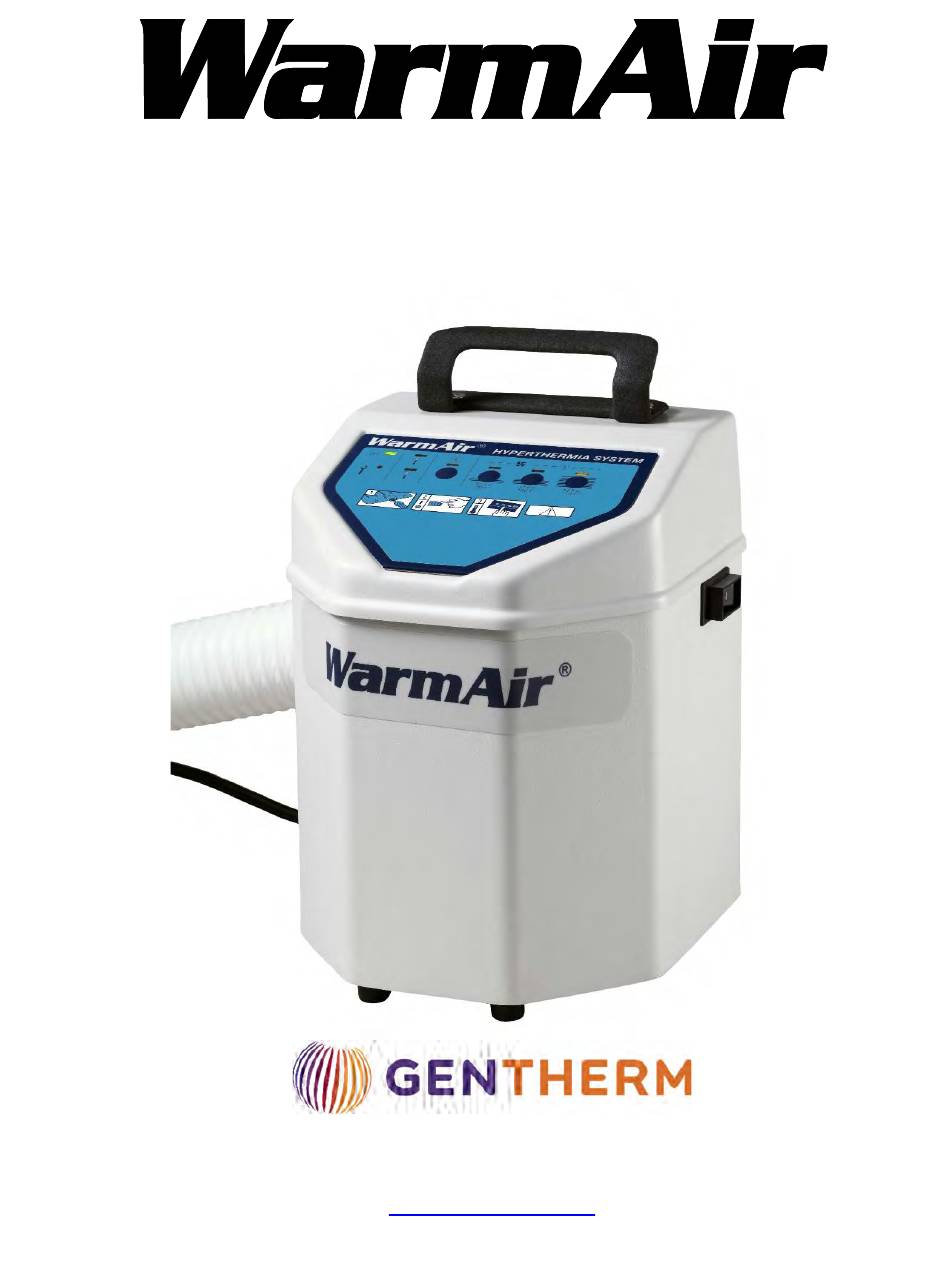

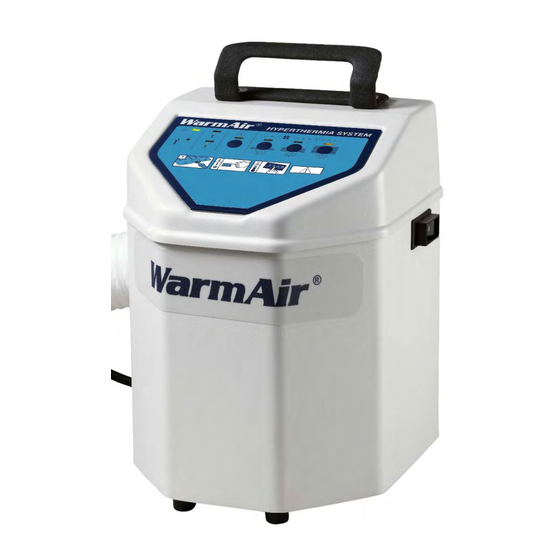

- Page 1 Operation & Technical Manual Model 135 Warming Unit Gentherm Medical, LLC www.gentherm.com...
- Page 2 SYMBOLS WarmAir Model 135 Technical Service Manual Symbols Voltage, Alternating Current Potential Equalization Connection (Grounding) Protective Earth (Ground) Type BF Equipment (per IEC-601-1) (Patient Applied) Consult instructions for use and/or manual before operating Over-Temperature Safety Limit Under-Temperature Safety Limit Hour Meter Power On/Off Indicator Fan Only Selection...
-
Page 3: Section 1: Safety Precautions
SAFETY PRECAUTIONS WarmAir Model 135 Technical Service Manual Section 1: Safety Precautions General Description of the WarmAir ® The WarmAir 135 unit is a small and compact warming unit designed to supply air at temperatures of ® ambient, 90°F, 100°F or 110°F to a patient-applied air-distribution device. The settings are termed “Fan Only”, “Low”, “Medium”... - Page 4 The warming of transdermal medications (patches) can increase drug delivery, resulting in possible injury to the patient. Do not use the WarmAir 135 unit with any blanket or warming cover other than Gentherm Blankets or the Warming Tube . Thermal injury may result. FilteredFlo ...
-
Page 5: Section 2: Specifications
SPECIFICATIONS WarmAir Model 135 Manual Section 2: Specifications Physical Dimensions: 8.75"W x 8.75"D x 13.5"H (22.2 cm x 22.2 cm x 34.3 cm) Hose Outlet: 6' (1.8m) flexible hose Weight: 13.5 lbs. (6.1 kg) Filtration: 0.2 microns, High Efficiency Construction: Impact-resistant plastic case with aluminum sub-structure. - Page 6 SPECIFICATIONS WarmAir Model 135 Manual Maximum Contact Surface Temperature : 48°C (118.4°F) (during normal operation) Time to reach 37°C from 23 ± 2°C: Approximately 3 minutes Safety System Maximum Temperature Setting: 43.3°C + 4.0°C (110°F + 8.0°F) 52.0°C ± 3.0°C as measured at the Independent Primary hose outlet of the device (i.e.
- Page 7 SPECIFICATIONS WarmAir Model 135 Manual Approvals Electrical MODEL 135, MEDICAL ELECTRICAL EQUIPMENT IN ACCORDANCE WITH UL60601-1, IEC60601-1 AND ASTM F2196-02. ALSO CLASSIFIED WITH RESPECT TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN 16HV ACCORDANCE WITH CSA 22.2 NO. 601.1 EMC COMPATIBILITY TABLES ACCORDING TO IEC 60601-1-2 Guidance and Manufacturer’s Declaration –...
- Page 8 OPERATING INSTRUCTIONS WarmAir Model 135 Manual Selecting Temperature and Using the Control Panel The control panel is located on top of the unit and is composed of four pressure sensitive touch switches, each having a LED display. The external features on the control panel of the WarmAir unit are described as follows: ...
- Page 9 OPERATING INSTRUCTIONS WarmAir Model 135 Manual WARNING! High temperature setting to be used with close patient observation when treating patients with the following conditions: a. Significant peripheral vascular disease, occlusive or diabetic in nature. b. Low cardiac output. c. Marginal cutaneous perfusion. Do not apply heat to lower extremities during arterial cross-clamping.
- Page 10 OPERATING INSTRUCTIONS WarmAir Model 135 Manual Mounting the WarmAir Unit The WarmAir 135 unit must be mounted securely before it is used. There are three ways to mount the unit: 1. IV Pole The unit may hook onto a secure, vertical IV pole of no less Clamp than 3/4”...
