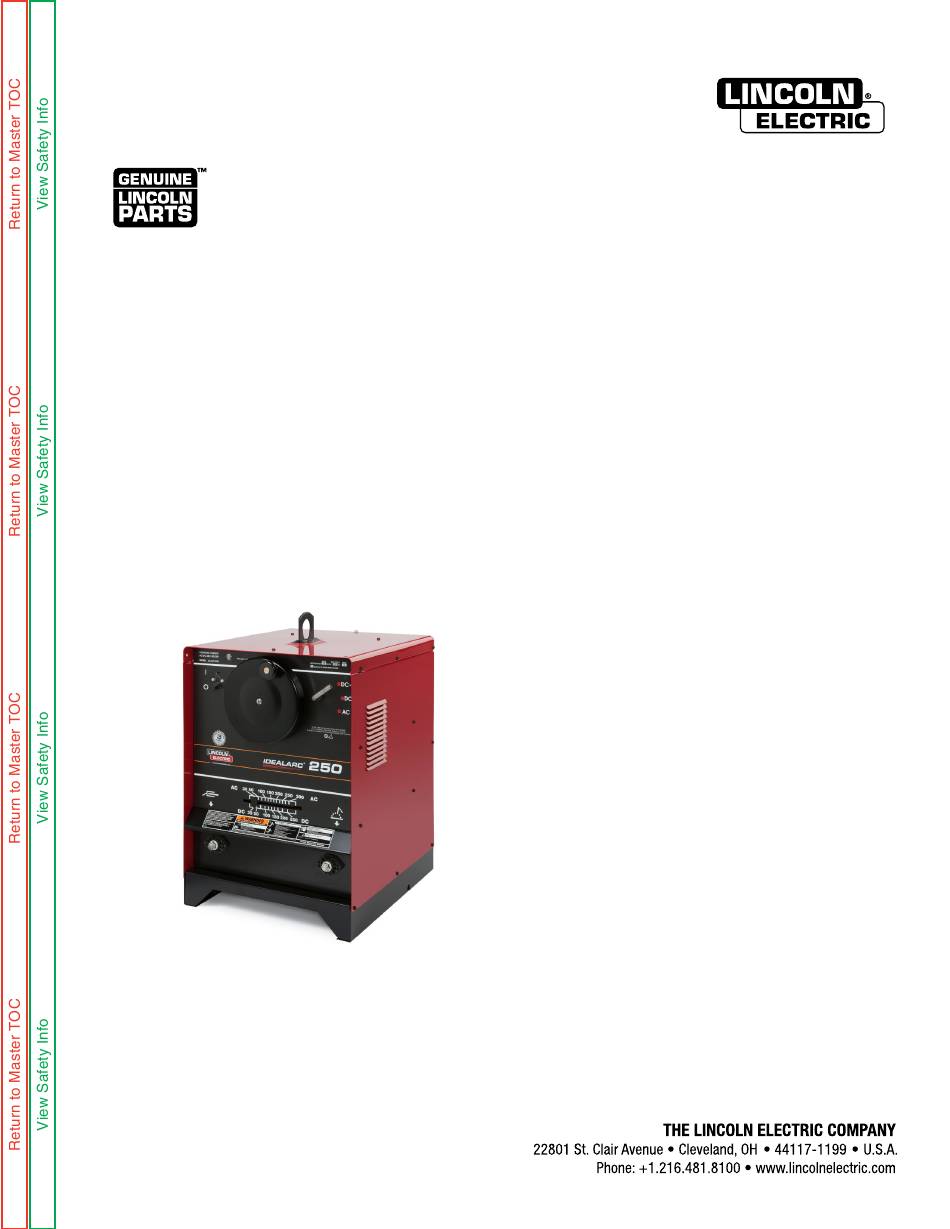

IDEALARC
AC/DC 250
®
For use with machines having Code Numbers:
9646; 9670; 9712; 9713; 9738; 9755; 9992; 9993; 9994; 9995; 9996;
9997; 9998; 11094; 11100; 11101; 11102; 11103; 11104
SERVICE MANUAL
SVM228-A
| Issue D ate 13-Jan
© Lincoln Global, Inc. All Rights Reserved.
NOTE: This manual will cover most of the troubleshooting and repair
procedures for the code numbers listed. Some variances may exist when
troubleshooting/repairing later code numbers.
9491; 9512; 9513; 9514; 9548; 9645;
