NVMe M.2 SSD Enclosure
HM6-P32C User Guide

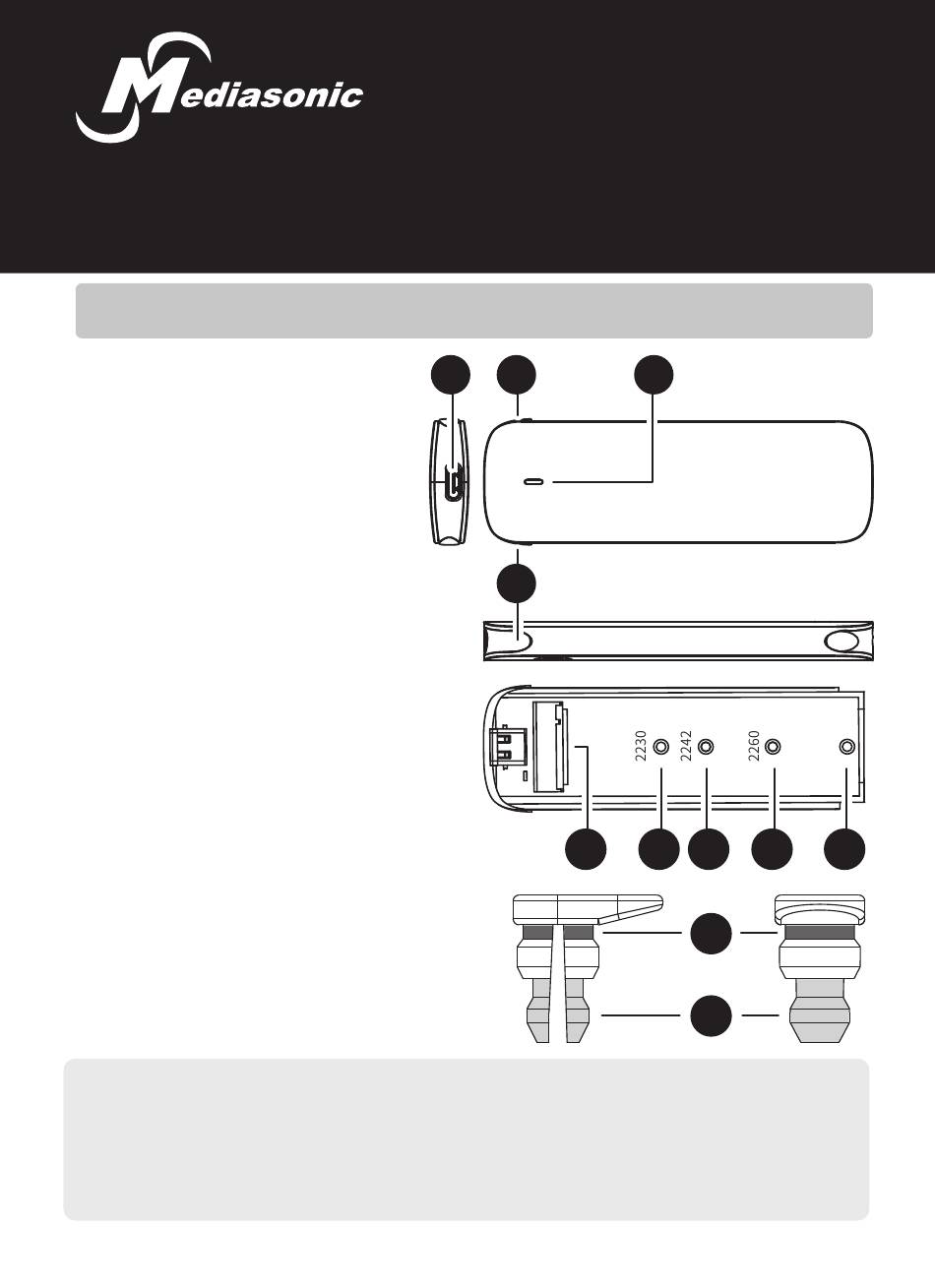

Product Features and Description
(External)
1.
USB Typec C port
2.
Latch Button
3.
Indicator light
(Internal)
4.
M.2 socket
2230 Plug Holes
5.
2242 Plug Holes
6.
2260 Plug Holes
7.
2280 Plug Holes
8.
(Retaining Buckle)
9.
M.2 Drive Lock
10.
M.2 Slot
Note: The motherboard has been equipped with a retaining
buckle for the 2280 positioning hole, which is used for M.2 drives.
Additional retaining buckles are only required if you are using
M.2 drives with the 2230, 2242, or 2260 size specifications.
1
2
2
4
Ver 1.0
3
5
6
7
9
10
8
