QUICK INSTALLATION GUIDE

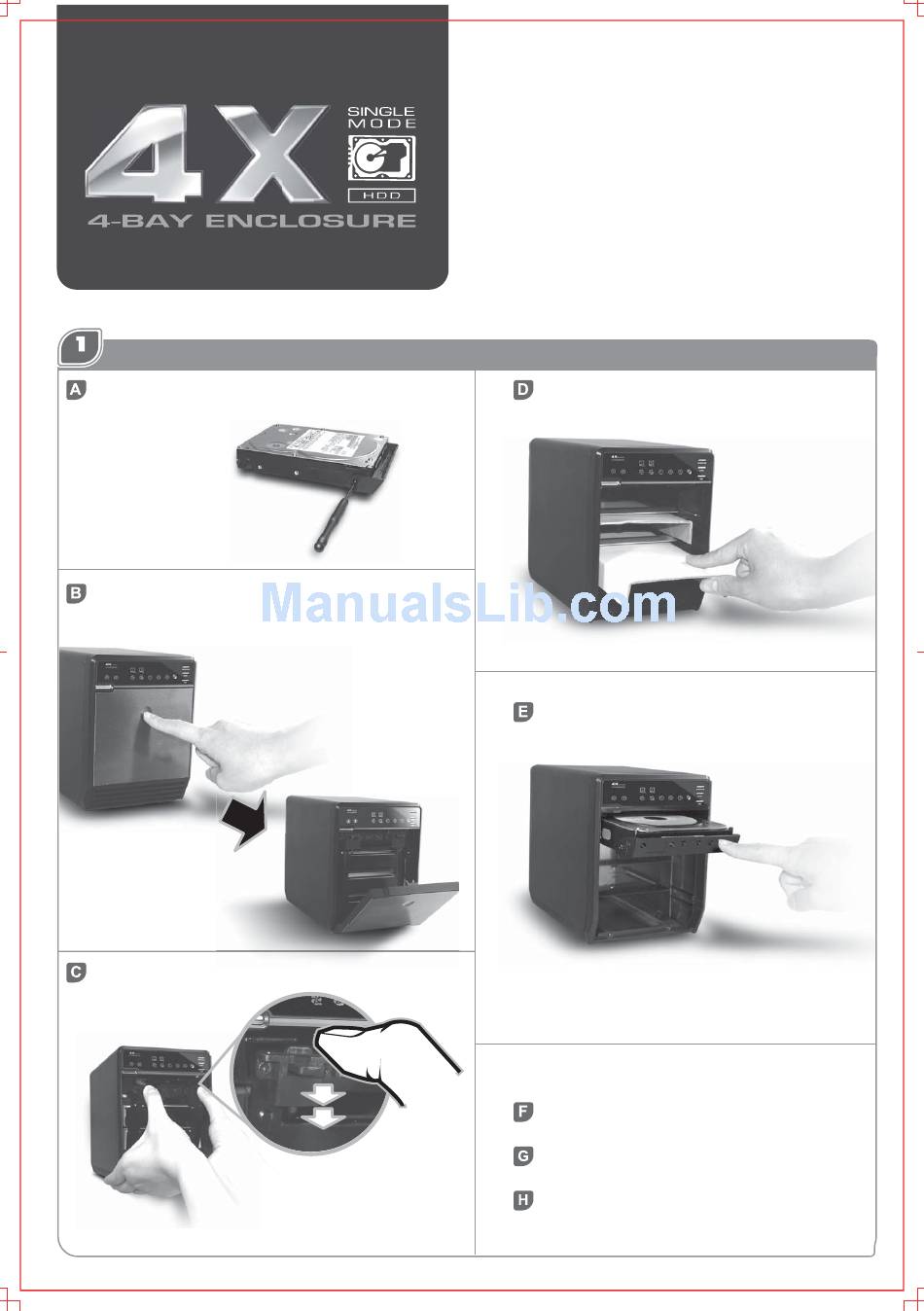

Quick Installation Guide
STEP
Use the enclosed handles to secure
the 4 HDDs with screws in the given
direction indicators.
Press the circular depression to open the cover.
Press down the rib to detach the metal frame and remove it.

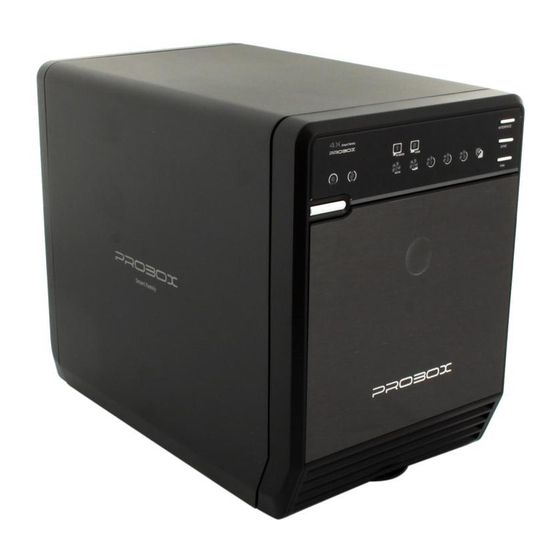

Mediasonic
HF2-SU2S2
ProBox Manual
Make sure the HDD1 is securely installed first at all times. Otherwise the
PC may not recognize the device.
www.mediasonicinc.com
Take the paper board out of the device.
Slide 4 HDDs into the chassis and make sure they are securely
installed in order from up to down,
Adjust the metal frame that was removed back to the chassis and
close the cover (based on how it was opened in Step C).
Connect the power supply to the device, plug in USB or eSATA
cable in the rear panel and power on the device.
If the HDD is unformatted, you may have to initialize it by doing
steps as followed: Start, Execute and key in diskmgmt.msc
QUICK INSTALLATION GUIDE
Version 1.1
