MediaSonic HF7-SU31C Quick Installation Manual

MediaSonic HF7-SU31C Quick Installation Manual

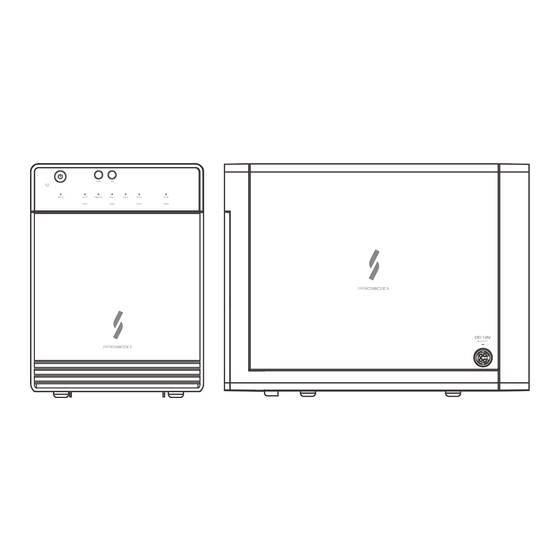

4x hdd enclosure with single mode functions usb 3.2 gen 2 type-c for 3.5'' sata hdd

Advertisement

Quick Links

HDD Enclosure
with single mode functions
USB 3.2 Gen 2 Type-C
For 3.5'' SATA HDD
Quick Installation Guide
Office website
www.mediasonicstore.com http://forum.mediasonic.ca/
HF7-SU31C / Rev.05
Brief Notes │ Contents │ Understanding Sync Button
Understanding Interface │ Quick Installation
Initialization │ Troubleshooting
Operation System
Windows 10 / 11
Mac OS X 11.6.1 or later
Hot-plug for USB-C interface
USB 2.0 / 3.0 / 3.1 / 3.2 Compatible *
* Additional cable required, cable converter adapters
not recommended
Smart Fan
Smart fan controlled by the built-in thermal sensor and it comes
with 2 modes (auto / manual) and 3 levels of speed:
Level 1
Low
below 45℃
Level 2
Medium
45℃ ~ 54℃
Level 3
High
higher than 55℃
Warning
USB port of your PC must support power-off function so that
the device would go to sleeping mode. Setting up motherboard's
(power management) in S3 is strongly recommended. For more
details, please refer to user guide of motherboard BIOS setting.
Contents
Main Device x 1
Quick Installation Guide x 1
Screws for 3.5" HDD x 8
Screw Driver x 1
Understanding Sync Button
Make sure enclosure is connected to a computer that is ON,
1
by Type-C. If not enclosure will just turn off.
Set the power Sync mode to your preference.
2
*These are the Power Sync modes:
Online forum
1000rpm~1400rpm
1500rpm~1900rpm
2400rpm~2800rpm
USB 3.2 Gen 2 Type C to C Cable x 1
Power Cord x 1
Power Adapter x 1
HDD Handle x 4
Understanding Interface
Blue Flashing light Read

Advertisement

loading
Need help?

Need help?

Do you have a question about the HF7-SU31C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MediaSonic HF7-SU31C

  • Page 1 USB 3.2 Gen 2 Type-C For 3.5'' SATA HDD Quick Installation Guide Office website Online forum www.mediasonicstore.com http://forum.mediasonic.ca/ HF7-SU31C / Rev.05 Brief Notes │ Contents │ Understanding Sync Button Understanding Interface │ Quick Installation Initialization │ Troubleshooting Operation System Windows 10 / 11 Mac OS X 11.6.1 or later...
  • Page 2 Rear View Side View Press down the 2 tabs to detach the metal frame and remove it. Take the transport paper board out of the device. Interior Accessories Metal Frame Slide 4 HDDs into the chassis and make sure they are securely installed in order from top to bottom 3.5 HDD Make sure the HDD is securely installed first at all times.
  • Page 3 Initialization Windows 3. HDD format completed If the HDD is uninitialized, you may have to initialize it by doing steps as followed: Right click Start button. Left click open "Disk Management". 1. Start disk initialization Start disk initialization Please enable GPT if the total capacity is more than 2TB and enable MBR if the total capacity is less than 2TB.
  • Page 4 Mac OS X 11.6.1 or later 1. Click ''Disk Utility'' icon. 2. HDD initialize... 3. Click ''Erase'' 4. HDD format in process 5. Format completed This manual is subject to change without notice Made In Taiwan...
