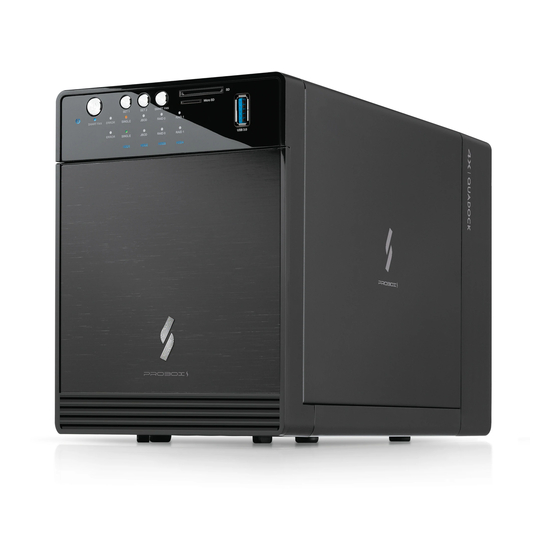

- Page 1 2x RAID 0 / 1 2x USB-A / USB-C / 4K HDMI / SDXC / Micro SDXC USB 3.1 Gen-II / Type-C / PD For 3.5'' SATA HDD USER’ S MANUAL Official website Online forum www.mediasonicusa.com http://forum.mediasonic.ca/ HFR7-SU31CD / Rev.01...
-
Page 3: Table Of Contents
CONTENTS PRODUCT FEATURE OVERVIEW Front Panel / Rear Panel / Interior Accessories SELF-ASSEMBLY Quick Installation Guide SETUP 9-15 RAID mode setup / Rebuild settings / RAID Mode Description / LED display status INITIALIZATION 16-21 Windows 10 / Mac OS X 10.14 or later TROUBLESHOOTING 22-23... -
Page 5: Product Feature
PRODUCT FEATURE DESCRIPTION USB3.1 DC/IN USB 3.1 T Y P E C 2x RAID 0/1 Function POWER SYNC USB HUB Support Multiple Device Power synchronized (Front Panel) USB 3.0 type A Connect to the Multiple Device with connected PC (Rear Panel) USB 3.0 type A with using USB-A/C port. -
Page 6: Overview
OVERVIEW DIAGRAM of HFR7-SU31CD Front Panel... - Page 7 DESCRIPTION Power button Press the button Press the button and hold it still SET 1 RAID button Select SET 1 RAID mode. • This device is built in 2 sets of RAID. • This design will prevent accidental SET 2 RAID button Select SET 2 RAID mode. execution of this function.
- Page 8 DIAGRAM of HFR7-SU31CD Rear Panel DESCRIPTION FAN cover USB 3.0 type A port USB 3.1 type C port Input port RAID mode confirmation button Security lock HDMI V2.0 out port (4K / 30Hz) AC power switch You must first turn on the power switch.
- Page 9 Interior Accessories Metal Frame HDD Handle...
-
Page 10: Self-Assembly Quick Installation Guide
SELF-ASSEMBLY Quick Installation Guide 1. Please use the provided handles to secure the 4 HDDs with screws. 2. Open the cover. 3. Press down the 2 tabs to detach the metal frame and remove it. - Page 11 4. Take the transport paper board out of the device. 5. Slide 4 HDDs into the chassis and make sure they are securely installed in order from top to bottom. 3.5 HDD Make sure the HDD is securely installed first at all times. Otherwise the PC may not recognize the device.
- Page 12 7. First connect the power cord, turn on the power switch to stabilize the current in the device, connect to the PC using a USB-C cable, Then activate the power switch on the front panel and verify that the computer is turned on. Press...
-
Page 13: Setup
When using RAID function, HDDs with the same brand, model and capacity is strongly recommended. There are several mode options for HFR7-SU31CD, Single, JBOD (Spanning), RAID 0 (Striping) and RAID 1. The enclosure is not default to any of the above. - Page 14 Press "SET 1" again and again. until it lands on the raid mode you wish to use, then press and hold the "RAID mode Confirmation button" in the back of the device until enclosure shuts down. Press Front panel Press the button and hold it still RAID confirmation button Avoid accidental touch and result in data loss.
- Page 15 RAID Matrix Limit Table : Supported : N/A HDD installed qty Raid Mode HDD x 1 HDD x 2 SINGLE JBOD (RAID 0 Spanning) SET 1 (HDD1+HDD2) RAID 0 RAID 1 SINGLE JBOD (RAID 0 Spanning) SET 2 (HDD3+HDD4) RAID 0 RAID 1 Rebuild settings 1.
- Page 16 RAID Mode Description Do not use hard drive with data to create any RAID mode. Single Simulate as a 4-bay non-RAID enclosure, and you can separately access 4 hard drives. RAID 0 Spanning (BIG) JBOD Spanning concatenates multiple hard drives as a single large volume; resulting in a seamless expansion of virtual volumes beyond the physical limitations of separately connected hard drives.
- Page 17 RAID Mode Combination Convenience Best Performance RAID 0 4x Single 2x RAID 0 Mode 2x RAID 0 RAID 0 Ultra Security Security+performance RAID 1 RAID 1 2x RAID 1 2x RAID 1 2x RAID 1 2x RAID 0 RAID 0 RAID 1 Convenience+security Convenience+performance...
- Page 18 LED Display Status RAID Configuration SINGLE SET 1 mode : Orange / Active SET 2 mode : Green / Active Blue / Starting Blue / active (When HDD is recognized by the PC) JBOD Spanning (BIG) RAID 0 SET 1 mode : Orange / Active SET 2 mode : Green / Active Blue / Starting...
- Page 19 RAID 0 Striping SET 1 mode : Orange / Active SET 2 mode : Green / Active Blue / Starting Blue / active (When HDD is recognized by the PC) RAID 1 Mirroring SET 1 mode : Orange / Active SET 2 mode : Green / Active Blue / Starting...
-
Page 20: Initialization
Initialization Windows If the HDD is uninitialized, you may have to initialize it by doing steps as followed: At first click ''Start'', ''Execute'' on your PC and key in ''diskmgmt.msc''. After that please press ''Return'' key. 1. Start disk initialization... - Page 21 2. Create new partition and format disk 3. HDD format completed...
- Page 22 Start disk initialization Startup the MBR hard drive capacity will only be split into 2TB and the remaining capacity will not be available. Activate GPT if total volume is more than 2TB Activate MBR if total volume is less than 2TB...
- Page 23 Mac OS X 10.14 or later 1. Click ''Disk Utility'' icon. 2. HDD initialize...
- Page 24 3. Click ''Erase'' 4. HDD format in process...
- Page 25 5. Format completed...
-
Page 26: Troubleshooting
Troubleshooting Changing the RAID mode will cause data lost. Please refer to the instructions when switching the RAID mode, otherwise set up might fail. When using RAID function, HDDs with the same brand, model and capacity is strongly recommended. When using RAID function, more than one HDD partition is not recommended. Under Windows 10, users can enable GPT when initializing HDD with a total capacity of more than 2TB. - Page 27 14. If the noise is still present, you can change the fan with another identical fan of size 80 x 80 x 20 mm referring. Positive Negative (electrode) (electrode) Red cable Black cable Operation Environment: Temperature 0 ~ 35 °C Humidity 90 ％...
