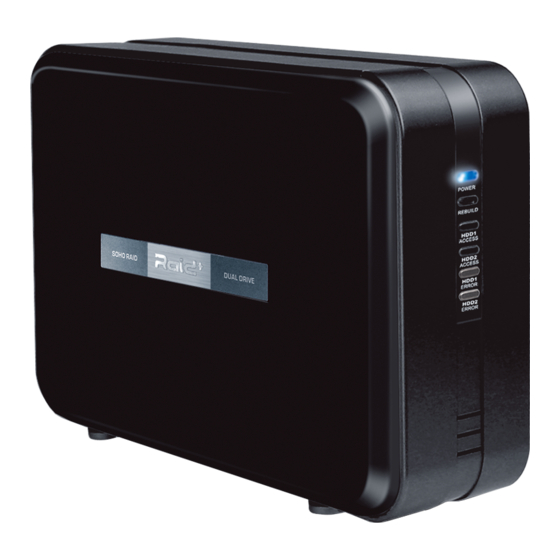

QUICK INSTALLATION GUIDE
Version 1.3
CONTENT
Overview
LED indication
RAID mode setup / LED display status
RAID function
Windows XP / Windows Vista / Windows 7 / Macintosh O.S. 10.3x or later
Single mode (Non-RAID) / Spanning & Striping (RAID 0) / Mirroring (RAID 1)
1
3
4
8
10
11
19
22
Advertisement
Related Manuals for MediaSonic HUR1-SU3S2
Summary of Contents for MediaSonic HUR1-SU3S2
-
Page 1: Table Of Contents
CONTENT Overview LED indication RAID Mode Selection RAID mode setup / LED display status Quick Installation Guide About RAID RAID function System Requirements Windows XP / Windows Vista / Windows 7 / Macintosh O.S. 10.3x or later Microsoft Windows Installation Single mode (Non-RAID) / Spanning &... - Page 2 Detail View RAID MODE LED View 1. DIP switch Front View 2. RAID Mode Confirmation button Status Mode 3. Single Mode LED indication 1. Power / Sleep indicator Single Mode LED Green 4. RAID 0 Mode LED indication 2. Rebuild indicator 5.
-
Page 3: Raid Mode Selection
RAID Mode Selection Users should set up the RAID mode when the device is powered off. RAID Mode RAID Mode SW (3) LED indication Single Above 2TB ( Non - RAID ) Single Under 2TB ( Non - RAID ) Striping Above 2TB ( RAID 0 ) - Page 4 E. Select the RAID mode via DIP switch referring to manual C. Insert HDD1 and HDD2 into HDD rack and on page 3 in the section of RAID mode selection. secure them with screws provided. F. With the enclosure powered OFF, press and hold the RAID confirmation button (next to the DIP switch), then press the power on button wait for the Raid mode LED you selected to light up.
-
Page 5: About Raid
About RAID SINGLE MODE Non-RAID: (Single Mode) Computer will show up as two independent drives. LED light This function can be used if RAID is not required, if one HDD is installed or two different barnds or capacities of HDD are installed. RAID 0 JBOD (Spanning) MODE RAID 0 - Striping: Two HDDs will show up as one large single drive G. -
Page 6: System Requirements
System Requirements RAID 0 SPANNING MODE RAID 0 - Spanning: Two HDDs will show up as one large single drive. Spanning is an array (not RAID) that is written sequentially across two drives. Windows System Minimum Requirements: • Minimum Intel Pentium III CPU 500MHz, 128MB RAM •... -
Page 7: Microsoft Windows Installation
Microsoft Windows Installation Microsoft Windows Installation Microsoft Windows Single mode (Non-RAID) - 2 New Simple Volumes •Before connecting to the PC, please refer to the Hard Drive Assembly Disk Initialization Procedures for RAID set-up. •If HDD is pre-installed by our vendor; users can connect directly to PC and start using the unit. - Page 8 Spanning and Striping (RAID 0) - 1 New Simple Volume Disk Initialization If Spanning or Striping mode capacity above 2TB, please refer to Microsoft Windows Vista GPT FAQ. http://www.microsoft.com/whdc/device/storage/GPT_FAQ.mspx...
- Page 9 Disk Initialization...
- Page 10 Mirroring (RAID 1) - 1 New Simple Volume Disk Initialization...
-
Page 11: Macintosh System Installation
Create new partition in “Disk Utility” Macintosh System Installation Before connecting to the Macintosh, please refer to the Hard Drive Assembly Procedures for RAID set-up. If HDD is pre-installed by our vendor, user can connect directly to Macintosh and start using the unit. If wish to change the settings please refer to Hard Drive Assembly for correct way of setting. -
Page 12: Cautions
Macintosh System Remove the “external hard drive” from Macintosh... • Drag the Ext Hard Disk to trash bin. • Unplug USB and remove the power adapter. Erase Hard Driver Note: If users wish to use device under both Windows and Mac OS system, HDD at FAT32 or HFS format is strongly recommended.
