Bitspower CR360 Reservoir Installation Manual

Bitspower CR360 Reservoir Installation Manual

Hide thumbs Also See for CR360 Reservoir:

Advertisement

Quick Links

BPM-WTCR360

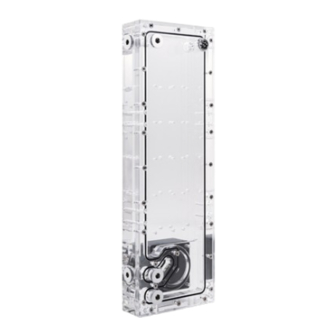

Bitspower CR360 Reservoir

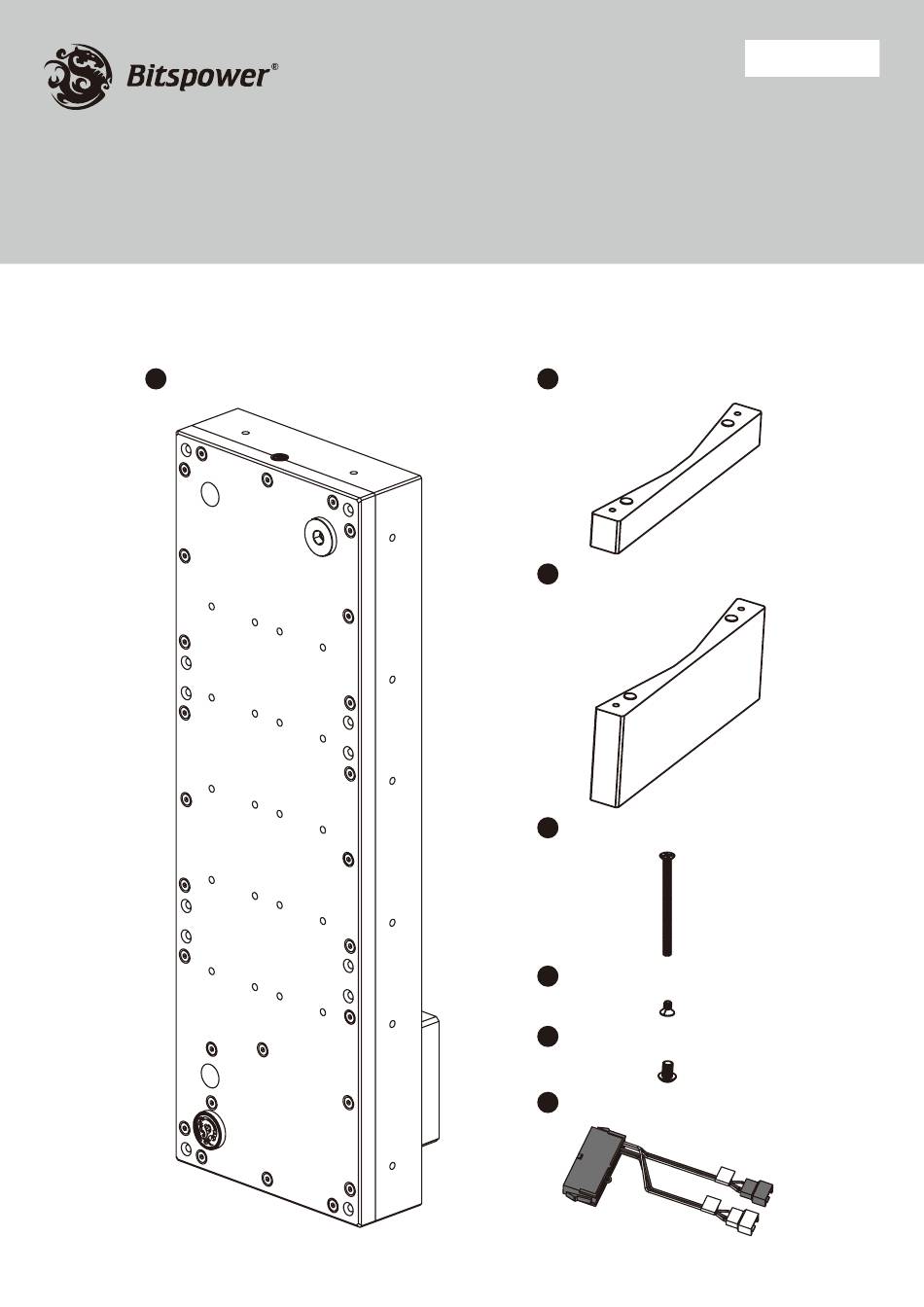

Accessories
1
BPM-WTCR360
2
1 SET
3
4
5
6
7
Mounting bracket (short)
Mounting bracket (long)
M3x45mm Screw
M3x5mm Screw
M4x6mm Screw
BPTA-PSC-SOC
EN ver.4
2 PCS
2 PCS
4 PCS
4 PCS
4 PCS
1 PCS
