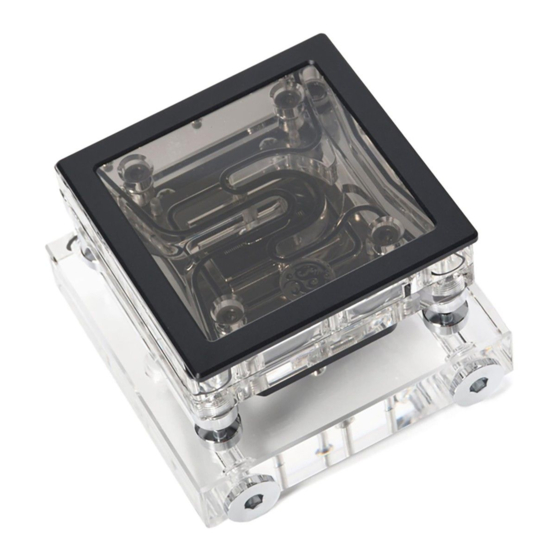

- Page 1 EN ver.2 BPM-CPURVI Bitspower CPU Block Summit Revo Intel Edition...
- Page 2 As such, if you feel uncomfortable with the steps involved in installing this product, please reach out to our customer support for assistance. We recommend the use of a leak tester, such as our Bitspower Digital Leak Detector, after completing the assembly of your liquid cooling loop to make sure there are no leaks prior to filling up your loop with coolant.
- Page 3 Installation Guide Bitspower CPU Block Summit Revo Intel Edition (12th/13th/14th Gen Intel CPU,LGA1700) Included Content Magnetic top panel 1 PCS O-ring 4 PCS Retention Bracket 1 PCS CPU block(front) 1 PCS Bolt 4 PCS Insulation pad 1 PCS CPU block(rear)
- Page 4 Assembly steps Installation Follow the right sequence to install. Prior to securing the block to the motherboard, please verify there are no components in the way of the block. Do not proceed if the block makes contact with any component on the motherboard and contact us for assistance. step 1 step 2 Unscrew the original screws.
- Page 5 Assembly steps step 5 step 6 Assemble the pre-assembled parts from 'Step 4' and the Please pre-assemble the components below. backside block with the motherboard. step 7 step 8 Connect the pre-assembled parts from 'Step 6' to the After attaching the magnetic face plate, the installation is backside block and Install the parts onto the motherboard.
- Page 6 Assembly steps Installation In/Out Port Guidelines CAUTION It is critical that the correct ports on the rear block of the Summit Revo are used as the INLET and OUTLET ports. Using the incorrect ports will result in poor thermal performance. Please read the description below and refer to the diagrams for guidance.
-
Page 7: Installation Dimension
Assembly steps Reference Exploded view Please remove the CPU bracket and reinforced back panel from the original motherboard before installing the water block. Please peel off the film. Use an appropriate amount of Thermal Compound. Please arrange the direction of water flow according to the diagram and do not make any changes. Installation Dimension [ 7 ]...
