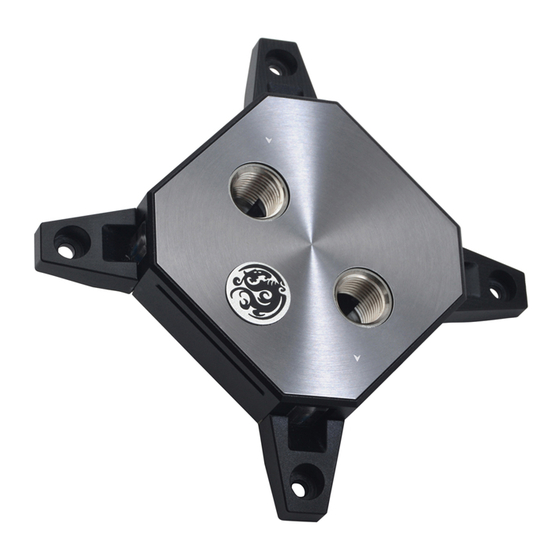

- Page 1 EN ver.1 BPM-CPUXCI Bitspower CPU Block Summit XC Intel Edition...
- Page 2 As such, if you feel uncomfortable with the steps involved in installing this product, please reach out to our customer support for assistance. We recommend the use of a leak tester, such as our Bitspower Digital Leak Detector, after completing the assembly of your liquid cooling loop to make sure there are no leaks prior to filling up your loop with coolant.
- Page 3 Installation Guide Bitspower CPU Block Summit XC Intel Edition Accessories CPU block 1 PCS Thumb Screw + Spring 4 PCS Intel 1700 Screw 4 PCS Bracket 1 PCS CPU socket compatibility Intel LGA 1700 [ 3 ]...
- Page 4 Assembly steps Installation Follow the right sequence to install. Prior to securing the block to the motherboard, please verify there are no components in the way of the block. Do not proceed if the block makes contact with any component on the motherboard and contact us for assistance. step 1 step 2 Please refer to the original installation guide to install the...
- Page 5 Assembly steps step 5 step 6 Install the 'thumb Screw + Spring' to CPU block . The installation is complete. [ 5 ]...
-
Page 6: Exploded View
Assembly steps Reference Exploded view Use an appropriate amount of Thermal Paste. Please arrange the direction of water flow according to the diagram and do not make any changes. Installation Dimension 24.7 [ 6 ]...
