This manual includes the description of the main functions
of the phone.
The content of the manual is correct. The description of
some functions may vary due to changes in software or
provider services. The company keeps the right to make
changes to the technical specifications without previous
warning.
Key remarks on safety measures
This phone is designed for mobile use, for calling and
receiving calls, sending SMS messages, surfing the Internet
(if configured) etc.
The following maintenance instructions are intended to
help you use your phone correctly, without endangering
the safety of people and property, and to keep the device in
working order. Read the section below very carefully and
strictly follow the instructions.
The phone doesn't contain any materials harmful for
health.
Turn off the phone in proximity to chemical plants,
gas stations, or other places where explosive
objects may be present.
Keep the phone away from children.
Turn off the phone aboard airplanes, do not use the
device during the flight.
Turn off the phone if a pacemaker or other medical
equipment that may be affected by the operation of
a mobile device is in use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Shell Duo TPC and is the answer not in the manual?

Questions and answers

Summary of Contents for Sigma Shell Duo TPC

  • Page 1 This manual includes the description of the main functions of the phone. The content of the manual is correct. The description of some functions may vary due to changes in software or provider services. The company keeps the right to make changes to the technical specifications without previous warning.
  • Page 2 ● The warranty does not cover non-original spare parts. ● Do not try to disassemble the phone by yourself. If necessary, contact the service center. ● Do not charge the phone without the battery. The phone should be charged in a well-ventilated place and away from flammable and explosive objects.
  • Page 3 according to the requirements of the law. Failure to comply with the legislation leads to legal accountability. ● More information on the safe utilization of lithium-ion batteries may be obtained at the closest specialized service center. Note: The manufacturer of the device reserves the right to equip device with...
  • Page 4 Camera 0,3 MP Supporting formats MIDI, AAC, MP3, WAV, JPG FM-radio 87,5-108,0 MHz (built-in antenna) Micro-SD Up to 32 GB Battery Li-Ion, 1000 mAh Maximum radiation Bluetooth: 1.66 dBm (1.46 mW). power in the GSM 900: 33 dBm (2 W) frequency bands GSM 1800: 30 dBm (1 mW).
  • Page 5 Inserting the SIM cards and memory card Open the back cover and take out the battery. Insert the SIM cards in the proper device slots. Then insert the microSD card, if needed. Reinsert the battery and close the back cover.

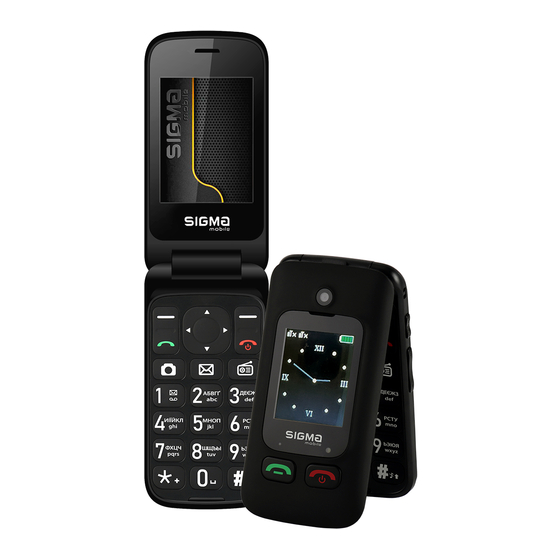

  • Page 6 Phone’s appearance...
  • Page 7 Receiver Navigation keys Left soft key (LSK) Calling\receiving a call Central key Right soft key (RSK) Reject/cancel/press and hold to turn the phone on or off Headphone jack USB Type-C port Flashlight button Volume keys Camera Receiver Flashlight...
  • Page 8 LED notification indicator Call button End call button SOS button Speaker Power the device on\off To power the device on or off, open the lid and press and hold the «End Call» button until the display is activated/until shutdown. Using external display and keys The external buttons are designed for receiving and rejecting calls, so you can receive a call without opening the phone.
  • Page 9 Keys specification Buttons Functions Call button In standby mode: viewing the Call history. During an incoming call: receiving an incoming call. Call: calling the dialed number. End Call button Press: to reject the call when there is an incoming call. Press and hold: to turn the phone on/off.
  • Page 10 Left and right LSK: In standby mode – press to open soft keys the Menu. Choosing between Options in the settings. RSK: In standby mode – press to open the Phonebook; returning to the previous menu. In FM radio mode: press to exit the FM radio menu.
  • Page 11 1-9 keys Press: to dial a number 1 through 9. Press and hold the keys 2-9: to speed dial the previously installed numbers. Press to enter the characters *, +, P, * key # key Press to enter the symbol #. Press and hold: to switch user profiles from General to Silent.
  • Page 12 Missed call Alarm clock is active Silent profile activated Meeting profile activated Outdoor profile activated Memory card installed Bluetooth mode on...
  • Page 13: Basic Operations

    Basic operations Making a call Dial the phone number using the phone's numeric keypad or go to Call history and press the "Call" button to make the call. You can also make a call from the "Phonebook" menu by selecting the desired phone number.
  • Page 14 able to call). You can also turn on the rejecting of calls from unknown callers — ones which are not listed in the Phonebook. To set it up, go to Menu→Call logs→Call Settings→Advanced settings. SOS calls You can save up to 5 emergency numbers. All SOS function settings are in the SOS settings menu.
  • Page 15 Using the phone’s Menu To access the Menu, press the Menu key (LSK). To move between items, press the Up/Down/Right/Left navigation keys. The menu includes the following items: Messages Inbox When a new message arrives, a ringtone will sound and the following icon will appear at the top of the screen: To read the received message, go to the Messages menu.
  • Page 16 Enter the text of the message. Note: To change the input method when writing a message, press the # key. To send the message, press Options→Send. Enter recipient numbers and click Send. If you need to save the message without sending it, press Options→Save. Saving sent messages By default, sent messages are saved.
  • Page 17 Saving the new contact directly through the “Phonebook” menu: Menu→Phonebook→Add contact. Call Center (Call logs) Go to Menu→Call Logs→Call history to view the received, dialed, and missed calls. The following actions are available for each call in the Options menu: View details, Call number, Write a message, Add to contacts, Add to Blacklist Delete.
  • Page 18 You can use the phone's audio player to listen to music files stored on the phone's memory card. Note: To ensure that a playlist is automatically created the files must be stored in the My Music folder on the memory card.
  • Page 19 Video player To view video files go to Menu→Multimedia→Video player. Video files must be saved in the Videos folder on the memory card. To select a file, go to Options→Memory. Press the 0 key to view/pause, the 2 key to view in full screen mode.
  • Page 20 listen to existing recordings, set up the file format and storage location. SOS settings This menu is for enabling/disabling the SOS function and adding phone numbers. You can also configure SOS messages and the text they contain. Press Status to enable/disable the feature. To add numbers, click SOS numbers.
  • Page 21 File manager In this menu, you can view files stored on the memory card. It is possible to create folders, rename and delete files. Settings Profiles Go to the main Menu, then to Settings→Profiles. There are four pre-configured User Profiles: General, Silent, Meeting and Outdoor.
  • Page 22 Security settings ● SIM card locking with a PIN code: enabling/disabling the function, changing the PIN. ● Changing the PIN2 code. ● Phone locking (on/off). When the function is enabled, the password will be requested every time the phone is turned on. ●...
  • Page 23 Troubleshooting If problems occur while you’re using the phone, try to find a solution in the following recommendations. Problem Reasons and solutions phone Press and hold the End Call key until the does image appears on the display. turn on Check the battery contacts.
  • Page 24 card Make sure the SIM card is not damaged. error Make sure the SIM card is installed correctly. Contact your mobile service provider if your SIM card is invalid. Unable Make sure the dialed number is available call and the Call button has been pressed. Make sure you have enough money on your account.
  • Page 25 Passwords Requests to input the following passwords may pop up while activating and using the phone: Phone password: Request occurs during activation. This is the general lock password. By default, the password is 1122. PIN code: If the PIN verification function is enabled, you must enter the code provided with the corresponding SIM card.
