Thank you for buying the X-style 34 mobile phone. This
manual includes the description of the main functions of the
phone.
X-style 34 allows you to use 2 GSM SIM cards in dual standby
mode, meaning that in standby mode both cards are online.
Whereas during the call 1 card works in active mode and 1
other card is unavailable.
The content of the manual is correct. The description of some
functions may vary due to changes in software or provider
services. The company keeps the right to make changes to the
technical specifications without previous warning.
Key remarks on safety measures
This phone is designed for calling and receiving calls, sending
SMS messages, surfing the Internet (may be unavailable) etc.
Read the section below very carefully and strictly follow the
instructions.
The phone doesn't contain any materials harmful for health.
• Do not use the phone out in the open during
thunderstorms.
• Do not subject the battery to high temperatures, explosive
and flammable liquids.
• Turn off the phone in situations when using it can cause
danger or other difficulties.
• Do not put the phone in heating devices such as
microwave ovens, stoves, or heaters.
Advertisement
Related Manuals for Sigma X-style 34
Summary of Contents for Sigma X-style 34
- Page 1 X-style 34 allows you to use 2 GSM SIM cards in dual standby mode, meaning that in standby mode both cards are online. Whereas during the call 1 card works in active mode and 1 other card is unavailable.
- Page 2 • Do not try to open the mobile phone's frame. If the phone or any of the accessories do not work properly, please contact the closest authorized service center. • Use only the accessories and charging devices assigned to this model. Do not use defective or second-hand chargers. •...
- Page 3 Specifications Phone, GSM 900: 880-915 MHz (Tx), 925-960 frequency (Rx) bands GSM 1800: 1710-1785 MHz (Tx), 1805-1880 (Rx) Number 2 SIM (nanoSIM). Dual SIM Dual SIM-cards Standby mode Messages Bluetooth V3.0, version 2400-2483.5 MHz frequency band Display 2,4’’, colour LCD, 240x320 pix Supporting MIDI, AAC, MP3, WAV, JPG formats...
- Page 4 Package includes: • Mobile phone • Battery • Charging device • OTG adapter • User manual • Warranty card Phone’s appearance...

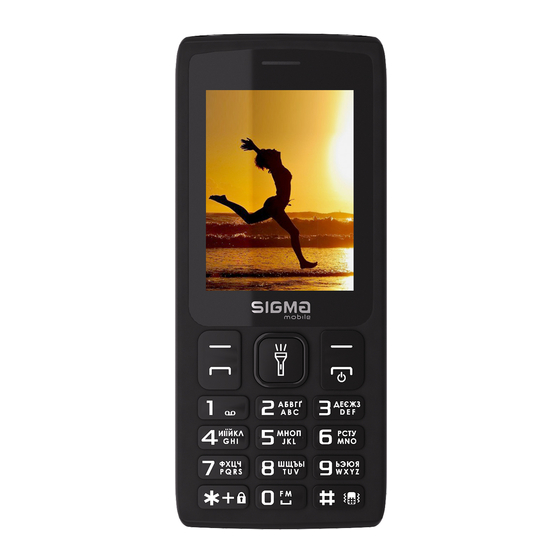

- Page 5 Receiver Central key (Press and hold to turn on the flashlight) Left soft key (LSK) Calling\receiving a call USB Type-C port Audio port Microphone Navigation buttons Right soft key (RSK) Reject\cancel\display activation (press and hold to turn the phone on or off) Flashlight Speaker...
- Page 6 Inserting the SIM cards and memory card Open the back cover and take out the battery. Insert the SIM cards in the proper device slots. Then insert the microSD card if needed. Reinsert battery, making sure that the battery contacts fit the phone contacts.
- Page 7 Locking and unlocking the device Device locking occurs automatically (if it is turned on in settings) or after pressing and holding the «*» key. It is also possible to lock the device by pressing the «End Call» button (if it is turned on in settings). Unlocking occurs through pressing and holding the «*»...
- Page 8 Press to enter the symbol #. # key Press and hold: to switch user profiles from General to Silent. In standby mode: press to Left soft key open the Menu/open Options. In standby mode: press to Right soft key open the Phonebook. In the menu: press to return to the previous page.
-
Page 9: Basic Operations
Battery charge indicator New message Missed call Memory card installed Silence profile activated Outdoor profile activated Meeting profile activated Alarm clock is active Bluetooth mode on Keyboard is locked Basic operations Calling Dial the phone number using the phone's numeric keypad or go to Call history and press the "Call"... - Page 10 You can also make a call from the "Phonebook" menu by selecting the desired phone number. During the call you can also: switch to the speakerphone mode, start a recording of the call, add another caller to communicate in conference mode, turn the microphone on/off, etc.
- Page 11 and Outdoor. To enable the profile, press Options—Enable, to edit: Options—Configure. Using the phone’s Menu To access the Menu, press the Menu key (LSK) or the Central key. To move between items, press the Up/Down/Right/Left navigation keys. The menu includes the following items: Audio player You can use the phone's audio player to listen to music files stored on the phone's memory card.
- Page 12 frequency tuning press Up/Down. Use the * key (to decrease) and # key (to increase) to adjust volume. In the Options menu you can search for channels automatically and manually, view saved stations and enable/disable background playback. Call Logs Go to Menu—Call logs—Call history to view the received, dialed, and missed calls.
- Page 13 adjust the settings for saving messages, and turn push notifications on/off. Phonebook The Phonebook menu contains contacts stored in the phone and on SIM cards. The phone memory is intended to store 500 contacts. You can additionally store another 500 contacts on the memory card and some contacts on SIM cards.
- Page 14 When backing up contacts in the root of the memory card, a system file named ~vcard.vcf is created. When restoring contacts, data is taken from the same file. Powerbank Turn the Powerbank function on/off. To connect other devices, use the OTG adapter. Note.
- Page 15 Settings Profiles Go to the main Menu, then to Settings—Profiles. There are four pre-configured User Profiles: General, Silent, Meeting and Outdoors. Each profile contains settings for Ringtones, SMS, Volume, and Other sounds. To configure the profile, press Options—Configure. To activate the profile, press Options—Enable.
- Page 16 The following recommendations may help to solve some problems with the phone. If problems occur, try to solve them yourself according to the following recommendations. If the problem is not solved, contact the Sigma mobile service center. Check whether the battery is charged and whether the problem persists after reloading the device.
- Page 17 The battery does not charge: check the charging adapter’s connection to the plug. Use only the charging adapter and cable included in the set. Impossible to call: this problem may be caused by low connection signal, network overloading, incorrectly dialed phone number, or activated function of Call barring.
