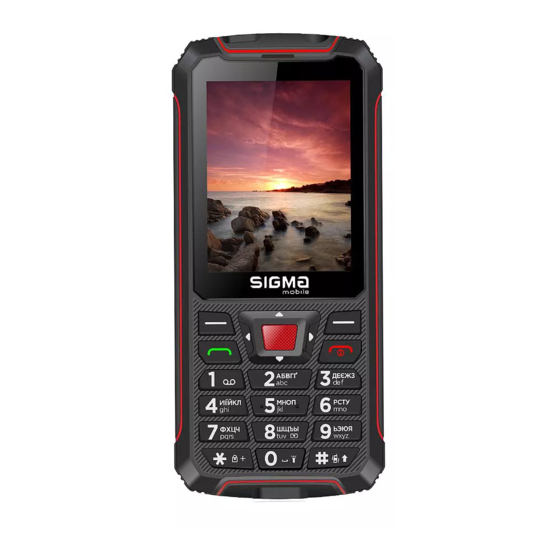

We thank you for buying
CF114.
This manual includes description of main mobile
phone
functions.
The phone allows to use 2 SIM cards of GSM standard at Dual
Standby mode, i.e., in standby mode there are 2 cards in
the connection; during the call 1 card works in active mode,
1 other card are unavailable.
The content of this manual is right. The description of some
functions may differ due to changes in software or provider
services. The company keeps
changes in technical specifications without previous warning.
Key remarks in security technics.
This phone is designed to make and receive calls, to send
messages, to access the Internet etc.
The following instructions for service designed to help you
to use the device properly without threats for people`s safety
and property, and to keep the device working
Please read this section and strictly follow the instructions.
The phone does not contain harmful substances.
 Do not use the phone in the storm outdoors; do not
expose the battery to high temperatures, hazardous and
flammable liquids.
 Turn off the phone in case the phone usage may cause
interference or dangerous.
 Do not put the battery, mobile phone and charger in a
microwave oven or high pressure equipment, or may
cause circuit damage and fire and other accidents.
 Do not try to open the body of the phone.
or any of the accessories are not working properly,
contact your nearest authorized service center.
mobile phone
the right to
Comfort 50
arrange
If the phone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comfort 50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sigma Comfort 50

  • Page 1 Comfort 50 We thank you for buying mobile phone CF114. This manual includes description of main mobile phone functions. The phone allows to use 2 SIM cards of GSM standard at Dual Standby mode, i.e., in standby mode there are 2 cards in the connection;...
  • Page 2  Use only accessories and chargers, that is designed for this model. Do not use defected USB-cables or chargers.  Please do not short circuit battery equipment.  Interference might be caused by poor shielding performance of medical devices such as hearing aids and heart pacemakers in the use of radio frequency devices including mobile phones.
  • Page 3: Specifications

    liability arises in case of infraction about the utilization norms. For information about safe utilization of lithium-ion batteries can be obtained at your nearest qualified service center. Note: The manufacturer of the device reserves the right to complete the battery of the battery other than the specified characteristics.
  • Page 4 2400-2483.5 MHz Display 2,8’’, Color LCD, 240x320 px Camera 0,3 MPx FM-radio 87,5-108,0 MHz Micro-SD Up to 32 GB Battery Li-Ion, 2500 mAh Package  Mobile phone  Battery  Charger  Cradle for charging  User Manual  Warranty card...
  • Page 5 Installing SIM cards and memory card  Press and hold the END key to switch off the mobile phone.  Unscrew screws and open the back cover.  Insert SIM cards in proper device slots.  Insert also micro-SD card, if required. ...
  • Page 6 Keys Receiver Control Keys (Right / Left / Up / Down Left Soft Key (LSK)
  • Page 7: Power On And Off

    Call/Answer Central Key (ОК) Right Soft Key (RSK) End key / Power On/off microUSB jack (under the plug) Contacts for charging when using a cradle Lanyard hole Headset jack (under the plug) Torch SOS Key Camera Speaker Battery compartment cover Power on and off Press and hold End key for powering on or off the...
  • Page 8: Function Of Keys

    Function of keys Functions In standby mode: View the call log. During an incoming call: Receive an incoming call. Call: to dial a dialed Call/Answer Key number. Press: to reject an incoming call. Press&hold: to switch the phone on / off. In FM radio mode, press: to exit the End Key FM radio menu.
  • Page 9 LSK: in standby mode - to go to Menu. In Menu - to select action and confirm the Left/Right action and go to Options in the settings. RSK:In Idle mode, go to Contacts; return to the previous menu. FM radio mode to exit the FM radio menu soft key Press and hold - activates the SOS...
  • Page 10: Icon Meanings

    Icon meanings Icon Meaning Signal strength of the GSM network signal Show battery level New message Missed calls Memory Card is inserted Alarm is On Normal profile is On...
  • Page 11 Silent profile is On Meeting profile is On Outdoor profile is On Keypad is lock Bluetooth is active Making a Call Dial the phone number using the numeric keypad on your phone or go to the call log and press the Call button to make a call. You can also make a call from the Contacts menu by selecting the contact you want.
  • Page 12 Speed dial Go to the Main Menu->Contacts->Options ->Settings->Speed Dial. In this menu you can store up to 8 phone numbers for speed dial, which correspond to numbers 2-9 on the phone keypad. Phone numbers are selected from the phone book. Long press key 2-9 in standby mode will call the given number.
  • Page 13 more than 3 cycles). Note! To cancel an SOS call, press and hold the SOS key Receiving the Call When you receive a call, press the "Call" button to accept the incoming call. Click the "End" button to reject an incoming call. Profiles Ringtones, volume and other settings are configured in User Profiles (Menu->...
  • Page 14 Camera With the camera, you can take photos and view photos. To shoot, press the center key. Press Options to go to the settings. You can set Scene Mode (Auto, Night), White Balance, Delay Time, Image Size, Image Quality, to save the settings, press Options - Save.
  • Page 15 "Options" menu you can play, add, edit the music list, and choose the listening mode via the settings. Use the Up and Down keys to adjust volume. Pause / Play a Music File: Press the center key. Go to previous / next file - Use the Left / Right key.
  • Page 16 volume increase. Press Options to Auto Search and Save Channels, browse the saved channels list, enable / disable background playback. Call logs Go to the Call logs menu to view received, dialed and missed calls. For each call, the following options are available in the Options menu: View details, Call subscriber, Write message, Add to contacts, Add to blacklist, Delete...
  • Page 17 To read the received message, go to the Messages menu. View messages through the Inbox menu. Go to the main menu - Messages -> Inbox. Choose from the list of messages that you want to view using the navigation keys. Functional operations when viewing SMS: Reply: send a reply to the sender Call: Call the sender...
  • Page 18 stored in the Sent folder.. Message settings Go to the Messages menu -> Message Settings to set up: SMS service center for each SIM, Voice mail settings, message storage settings - SIM or phone, and view the status of the memory.
  • Page 19 Phone numbers can be added from the phone book. To turn on / off Alarm sound - press Warning Tone. Organizer Calculator In the main menu, select Organizer -> Calculator, which allows you to perform simple arithmetic operations. Enter a number and use the keys to select the desired action: Up - Add, Down - Subtract, Left - Multiplication, Right - Divide, OK –...
  • Page 20 The Organizer menu also has Torch (on / off) and Operators menu. Settings Profiles Go to the main menu and go to Settings -> Profiles. There are four pre-configured user profiles: General, Silent, Meeting, Outdoor. Each profile contains Calls and SMS Ringtones settings, Alert types, Ringtone volume, Other sounds.
  • Page 21: Troubleshooting

     Change of PIN2 code;  Phone lock (on / off). When you turn on the feature, each time you turn on the phone, you will be asked for a password;  Change the phone lock password; Dual SIM settings This menu selects the order of using SIM cards, it is possible to turn on / off the card and enable / disable flight mode.
  • Page 22 Press and hold end key until image appears on the display. Can’t Check the battery contacts. Remove and insert switch on battery and switch your phone on again. Check the battery charge level. Move into an area of better coverage. Can’t Beyond the network cover area;...
  • Page 23 Make sure that your phone has connected to network (Check if the network is too busy or invalid). Can not Make sure that there is enough money to receive receive the call. calls Make sure that SIM card is valid. Check call divert settings and incoming call barring settings.
