1. PURPOSE AND SCOPE OF APPLICATION
1.1. The two-position 3-pin thermostat relay switches the relay contacts when the temperature set by the user is
reached, thereby controlling the switching on and off of the compressor of the refrigeration or freezing unit.
1.2. The thermostat can be used as a safety. In this case, it works in tandem with temperature-regulating
automation and turns off the refrigeration equipment in case of a critical temperature change and its values go
beyond the setting limits. This will help prevent emergencies in case of failure or incorrect operation of the main
temperature-regulating automation.
1.3. The thermostat is mounted directly on the wall of the room or chamber in which the air temperature is
regulated.

2. TECHNICAL PARAMETERS

Name of the parameter
Permissible voltage at the contacts
Permissible current (ohmic load)
Permissible current (inductive load)
Type of relay switch
Setting range
Differential
Minimum bending radius of the capillary tube
Capillary tube length
Dimensions of the thermoball
Number of triggers (on/off )
Maximum ambient temperature
Maximum cylinder temperature
Degree of protection of the housing
Housing material

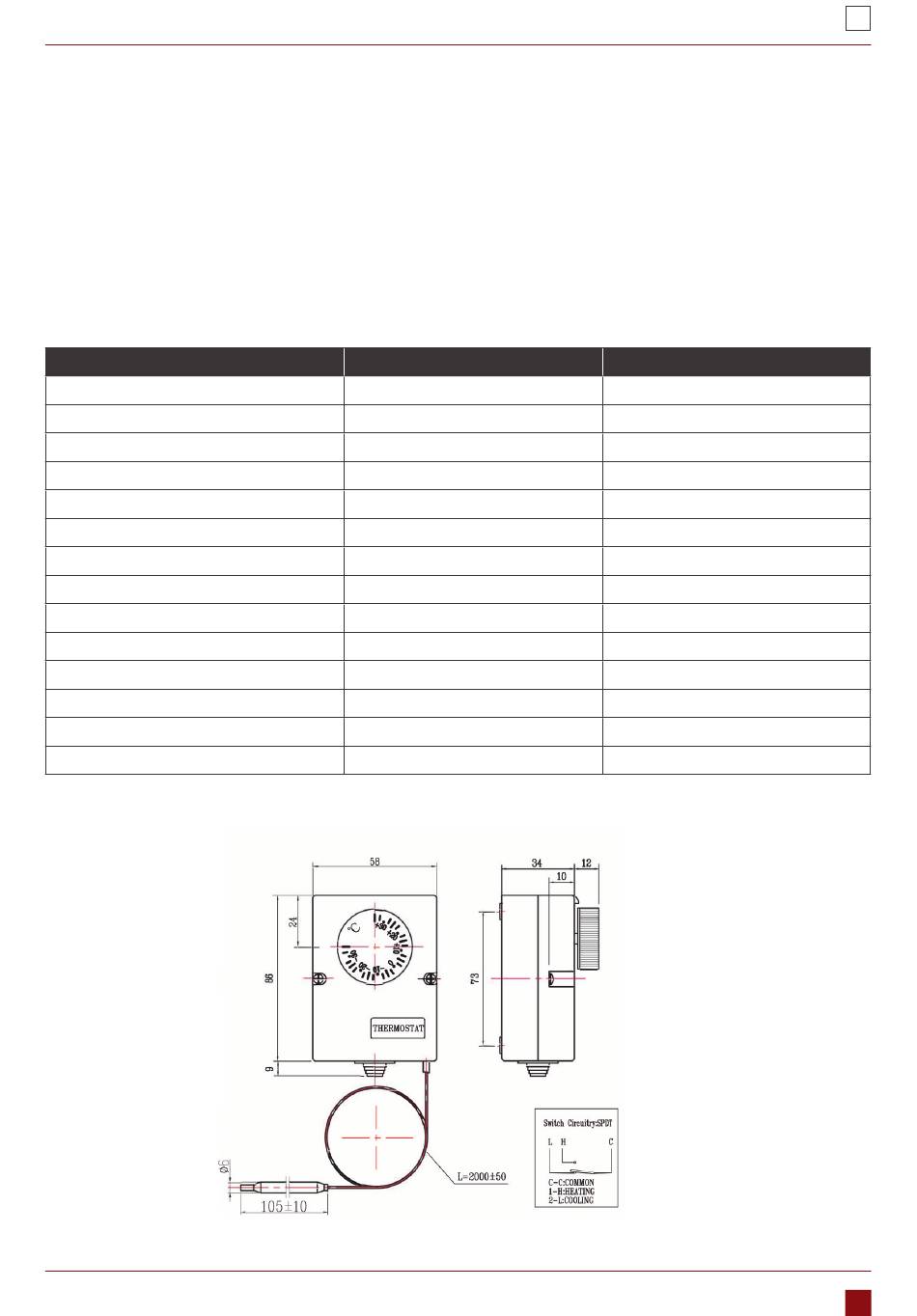

3. OVERALL DIMENSIONS

Capillary thermostat - RCTX-2000L
Unit
V
А
А
-
˚С
˚С
mm
mm
mm
-
˚С
˚С
-
-
EN
Value
250 / 400
16
2,5
SPDT
-35 ÷ +35
2,5
6
2000
Ø 6 mm × 115 mm
100 000
+80
+70
IP40
Tworzywo ABS
7
Technical data
