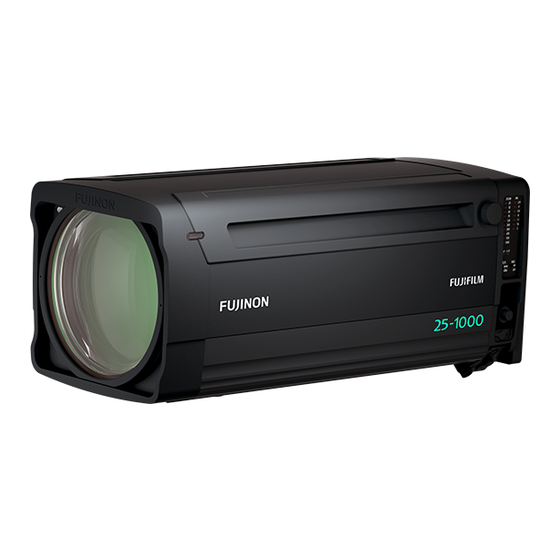

- Page 1 FUJINON LENS 富士能电视镜头 HZK 25-1000mm 取扱説明書 /Operation Manual/ 使用手册 BB00055531-100:UK LP560B-S35 0412...
-
Page 2: Prior To Use
PRIOR TO USE Preparing the lens supporter Use･a･custom･supporter･for･FUJINON･lenses･(ELH-112B-*)･when･installing･the･lens.･･Do･not･install･the･lens･on･ an･older･model･ELH-112A-*･as･this･could･deform･or･damage･the･supporter.･･Also,･make･sure･the･Serial/Parallel･ setting･is･set･to･Serial. Preparing an external power supply When･using･this･lens･with･a･FUJINON･lens･supporter･(ELH-112B-*)･attached,･use･a･power･source･connecter･(see･ “Name･and･Function･of･Each･Part” )･to･supply･power･from･the･lens･side.･･If･power･is･not･supplied,･correct･ operation･may･not･occur.･･Also,･when･connecting･an･external･power･supply,･first･power･on･the･external･power･ supply･and･then･the･camera. Enclosure of Desiccant The･inside･of･this･lens･is･able･to･enclose･desiccant･in･order･to･eliminate･humidity･that･may･mist･the･surfaces･of･the･ internal･glasses.･･A･desiccant･bag･for･storage･was･enclosed･in･the･desiccant･enclosure･place･before･shipment･at･the･ factory.･･Prior･to･use,･take･out･this･bag･first,･and･put･new･desiccant･bags･in･that･place･as･follows:･ a.･ T here･are･twelve･desiccant･bags･in･the･trunk.･･Take･out･two･of･them･to･use.･･The･rest･should･be･used･when･the･ exchange･of･the･desiccant･is･required. b.･ L oosen･the･two･lens･shroud･attaching･knobs･on･the･both･sides･of･the･lens.･･Draw･the･shroud･towards･the･front･of･ the･lens･to･detach･it･from･the･body. c.･ R emove･the･four･screws･to･take･off･the･lid. d.･ T ake･out･the･desiccant･bag･for･storage. e.･... - Page 3 Setting of Camera Mode If･ the･ camera･ to･ be･ used･ with･ is･ not･ capable･ of･ serial･ communication･ with･ a･ lens,･ set･ the･ communication･ mode･ (camera･mode)･of･the･lens･to･OFF. Setting Method First,･remove･the･shroud. The･shroud･can･be･removed･by･pulling･it･towards･the･front･after･loosening･the･two･lens･shroud･attaching･knobs･ on･both･sides･of･the･lens. When･the･shroud･is･removed,･the･MECCON･board･can･be･seen･on･the･right･side･surface･of･the･lens･(viewed･from･ front･of･the･lens). Set･the･dip･switch･(SW3150)･No.･1･(CAMERA-SER)･on･the･MECCON･board･to･ “OFF.” Note. The serial communication function is set to “ON” before shipment at the factory. MECCON-board SYSTEM-RESET SW2103...
-
Page 4: Specifications
３. SPECIFICATIONS LENS HZK25-1000mm ITEM Camera with 35mm full-size Application Camera with super 35mm sensor equivalent sensor Image Format Diagonal φ28.55mm Diagonal φ41.3mm Focal Length 25～1000mm [37.5～1500mm] <37.5～1500mm> Zoom Ratio 40 × Extender/expander 1.5 × magnification Ratio F2.8 (25～465mm) Maximum Relative Aperture ～F5.0 (1000mm) <F4.2 (37.5～697.5mm) (F No.) - Page 5 ６. SETTING AND ADJUSTMENT OF THE LENS The various settings of the entire lens are performed using the dip switches installed on the "MECCON" board. The detailed settings and adjustments of the functions of this lens are performed using the menus on the LCD panel. MECCON board SYSTEM-RESET SW2103...
-
Page 6: Dip Switch Settings
6.1 Dip Switch Settings The functions of the dip switches installed on the MECCON board are described below: SW3151 Switch･ Name･of･ Default･ Function Description function･ setting CAM[1] CAM[2] RESERVE3 Reserved Do･not･change･the･default･value･setting･of･this･switch. RESERVE4 RESERVE5 RESERVE6 Sets･the･light･level･of･the･tally･lamp.･(TALLY-LOW) ON ＝ The･tally･lamp･will･turn･on･at･the･light･level･that･was･set･using･the･menu･on･ TALLY- Tally･light･level･ the･LCD･panel. ADJUST adjustment･ON/OFF OFF ＝... - Page 7 １１. OPTICAL STABILIZER FUNCTION This lens incorporates the optical stabilizer function that optically compensates for the shakes of the lens and base mount. This function can be operated using the operation switches of the lens, external stabilizer controller, and either a zoom rate demand unit or a focus position demand unit with a stabilizer control function.
- Page 8 11.2 Selection of Stabilizing Characteristic The stabilizing characteristic of the stabilizer function can be selected using the stabilizer HIGH/STD. select switch on the lens or stabilizer controller. ・ HIGH mode ： This mode is suitable for reducing shake while shooting in a stationary state. ・...
-
Page 9: Maintenance
１２. MAINTENANCE 12.1 DAILY MAINTENANCE ■ Lens Cleaning Prepare･a･mixture･of･20%･alcohol･and･80%･ether;･soft,･clean･and･lint･free･cloth･or･lens･cleaning･paper. a.･ B rush･off･any･dust･and･dirt･from･the･glass･surface･with･a･soft･brush. b.･ F old･the･cloth･to･a･suitable･size･and･moisten･it･with･the･mixture Lightly･wipe･the･glass･surface･by･moving･the･cloth･in･a･spiral･course･from･the･center･to･the･periphery. c.･ I f･the･glass･does･not･come･clean･for･the･first･time,･use･another･cloth･and･wipe･similarly.･Repeat･step･‘b’ ･ several･times･until･the･glass･is･thoroughly･cleaned. ■ Check Connection Cords Carefully･inspect･outer･covering･and･terminals･for･cuts,･scratches･or･other･damages. ■ Optional Accessories When･the･driving･power･is･achieved･by･using･optional･accessories,･any･meshing･part･must･be･normal･in･ shape･and･free･from･dust･or･any･other･foreign･matter.･･Carefully･check･all･the･optional･equipment･prior･to･its･ installation.･Any･foreign･matter･should･be･removed･immediately,･and･any･malformed･part･should･be･serviced･ as･soon･as･possible. ■ Lens Cap If･the･lens･is･left･in･position･on･the･camera･body･and･the･camera･is･not･in･use,･be･sure･to･place･the･lens･cap･(or･ the･hood･cap･when･the･lens･hood･is･on)･in･order･to･protect･the･front･glass･surface･of･the･camera. 12.2 ELIMINATION OF WATER If･the･moisture･contained･in･the･air･is･collected･in･the･lens･unit,･it･may･produce･stubborn･soils･on･the･glasses･and･... -
Page 10: Optional Accessory
１４. OPTIONAL ACCESSORY Use Fujinon original accessories, otherwise inherent performance of the lens may not be derived. ※ 14.1 Focus Servo / Zoom Servo System ACCESSORY MODEL REMARKS NAME ESM-D51B Module for driving focus. Servo Module ① ESM-D52B High speed module for driving zoom. Focus Position Control unit for focus positional EPD-51A-D02... -
Page 11: Technical Drawings
技術資料 TECHNICAL DRAWINGS 技术资料... - Page 12 ① タリーライト (2 ヵ所 ) Tally Lights (2 places) TALLY 显示灯 （两处） ② 取 手 (2 ヵ所 ) Handles (2 places) 把手 ( 两处 ) ③ カバー取付つまみ (2 ヵ所 ) Shroud Attaching Knobs (2 places) 护罩固定旋钮 （两处） ④ エクステンダ リモート／マニュアル 切替スイッチ Extender Remote/Manual Select Switch 倍率镜遥控...
- Page 13 ( 特別に表記がある場合を除いて） 単位 : mm (UNLESS OTHERWISE SPECIFIED) UNIT : mm ㉘ ( 另有规定除外） 单位 : mm ㉔ ㉗ ㉓ ㉕ ㉖ ② ④ ⑤ ⑲ ⑥ ① ① ③ ⑳ ⑦ ⑱ ⑰ ⑯ ⑨ ⑧ ⑮ ⑩ ㉑ ⑭...
