- Page 1 4x51W MAX POWER INDIGO-879DSP DSP BLUETOOTH / USB / FM RECEIVER USER MANUAL PLEASE READ CAREFULLY BEFORE USING...
- Page 2 Copyright Copyright “ “, “ “ are registered trademarks. All rights reserved. This document, entirely or in any part of it, is prohibited to reproduce, as well as copy without the preliminary written permission of the manufacturer. All trademarks, logos and names of products used on the packaging and in this document are logos or registered trademarks of the respective companies.
-
Page 3: Table Of Contents
Content Precautions.................... Equipment and installation ..............Connection ................... Appearance, controls ................Sizes...................... Remote control..................Basic operations ................... Menu: Sound settings ..................Preservation of DSP settings (presets) ..........Display settings..................Tuner settings ..................Bluetooth settings ................. System settings ..................Sources: Radio...................... USB ....................... -
Page 4: Precautions
Precautions User manual contains important security recommendations and information about the proper operation of the device. Please carefully follow all the instructions given in this guide. 1. When installing the device, avoid places with high temperature, humidity, or places where there is a lot of dust. 2. -
Page 5: Equipment And Installation
Package and installation Open the package and make sure that inside are: 1. USB receiver - 1 pc. 2. Remote control - 1 pc. 3. Keys for removing the receiver - 2 pcs. 4. ISO connector - 1 pc. 5. Instruction Installation of the device Connect the required wires and connectors... -
Page 6: Connection
Power connection 1. Make sure that your vehicle's on-board voltage is +12 volts. 2. Before connecting wires, remove the fuse from the device. 3. Connect the yellow (A4) wire to the +12 volt DC power circuit. 4. Connect the red wire (A7) to the ACC terminal of the ignition switch. 5. -

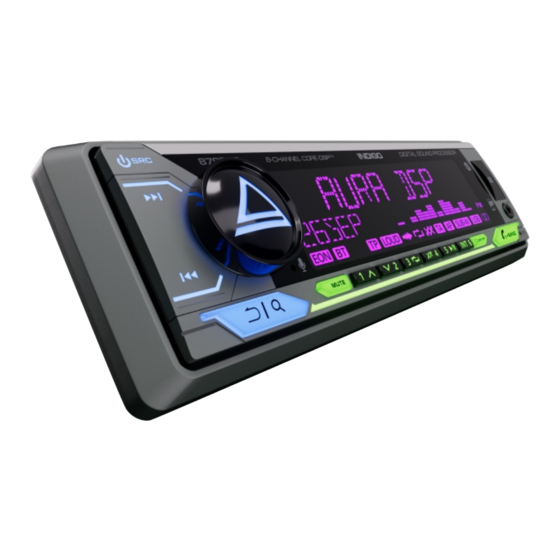

Page 7: Appearance, Controls
Îðãàíû óïðàâëåíèÿ 1. Turn on/off the device/Select source 2. IR receiver 3. LCD display 4. USB connector 5. Next track / Fast forward / Radio tuning 6. Volume adjustment / Switch settings / Confirm selection 7. Previous track / Rewind / Radio settings 8. -
Page 8: Sizes
Sizes Remote control Removing the battery protection (CR-2025). The remote control comes with battery protection. The remote control will not work until the protection is removed. Battery replacement: When the lithium battery has lost capacity, replace it as shown in the figure. 1. - Page 9 Remote control Turning on / off the device 2. Volume adjustment 3. Switching radio ranges Reception of a call Previous track / rewinding back / Radio setting up 5. Choosing a source Next track / rewinding forward / Radio setting up 7.
-
Page 10: Basic Operations
Main operations Turning on / off Press any button to enable the device. Press and hold the button (1) / SRC to turn off. Volume adjustment Rotate the volume control handle to set the desired level. Choosing a source Press the button (1) / SRC to switch between sources Reproduction: Radio ->... - Page 11 EQ SETTING Subwoofer: Sub-W output - enable/disable subwoofer. Sub-W level - adjusting the subwoofer volume level. Sub-W stereo - operating mode 7/8 RCA subwoofer outputs (Mono/Stereo). Fader Adjusting the relative volume between 1/2 and 3/4 channels. Balance Adjusting the relative volume between left and right channels. Volume Step Selecting the volume control step value (1/2/3).
- Page 12 X-Over 3/4-LPF FRQ - cutoff frequency: THROUGH (off)/20 Hz - 12.5 kHz. 3/4-LPF TYPE - filter type. 3/4-LPF SLOPE - slope: 6 - 48 dB per octave. GAIN - level 3/4 channels, from -8 dB to 0 dB. PHASE - lectrical phase switching:0° / 180° 5/6 Channel - setting high-pass filter (HPF), low-pass filter (LPF), filter type, slope, level and phase of 5/6 channels.
- Page 13 We enter the number 140 into the channel delay value of the left tweeter. Make the necessary calculations for all speakers, then make settings in the AURA AUDIO app or in the receiver menu. Position - listener position selection. All / Front left / Front right / Front all.
-
Page 14: Preservation Of Dsp Settings (Presets)
DSP Presets You can save 6 independent settings (presets) and quickly switch between them. IMPORTANT! Settings are retained when battery power is removed. 1. Adjust the EQ, delay and crossover parameters. 2. To save the current settings to memory cell “1”, quickly press the “1”... -
Page 15: Bluetooth Settings
RDS set Enabling the text messaging system. TA set Traffic messages.* AF set Transition to more stable frequencies.* EON set Automatic switching to traffic channels.* Radio text Displaying text information. PI regional Station name display. PTY search Search by program type.* function is not supported in Russia. -
Page 16: Radio
System Beep - button sound Enable/disable sound when pressing buttons. AUX IN Enable/disable AUX source. Programming standard steering wheel buttons. Detailed programming procedure on page 18. Car ACC - ignition switch type Yes - install for a car with ACC position, red wire The device's power supply is connected to the ACC position of the ignition switch. -
Page 17: Usb
Radio Automatic search and storage of stations Press and hold the SEARCH button (8) for more than 2 seconds.The unit will quickly search and automatically store 18 FM and 12 AM radio stations with strong signals. Manual search for radio stations Press the button (7) or (5) to change the frequency step by step. -
Page 18: Bluetooth
BLUETOOTH Phone pairing 1. Turn on Bluetooth on your mobile device. 2. Find “INDIGO-879DSP” in the list of available BT devices and connect to it. PIN code for authorization: 1234 . WARNING! No need to pair with the BLE channel! This may cause the device to become unstable! 3. -
Page 19: Aux
Most device settings are available in the AurA Audio mobile application for Android or iOS. 1. Install the "AurA Audio" application from Google Play or App Store. 2. Connect your smartphone to the receiver via Bluetooth. 3. Launch the "AurA Audio" application to control the receiver. - Page 20 Steering wheel button setup The ground wire (WHEEL GND) of the original control panel must be connected to the black GND wire (A8), and the signal wires WHEEL KEY A and WHEEL KEY B must be connected to wires A1 (brown/black) and A2 (brown), respectively. The operating voltage range when the remote control buttons are connected is from 0.3 to 3.3 V.
-
Page 21: Specifications
Specifications Main Operating supply voltage: 12 V (permissible limits 9.6 - 15 V) Fuse: 15 A Maximum output power: 4 x 51 W (4 ohms) Rated output power: 4 x 16 W (4 ohms) Speaker impedance: 4 - 8 Ohm Frequency range: 20 Hz –... -
Page 22: Warranty Coupon
WARRANTY CARD Model name INDIGO-879DSP Serial No. Buyer name Buyer address Phone No. Sales date Signature Seller name/stamp WARRANTY CARD... - Page 23 TERMS OF WARRANTY SERVICE The manufacturer guarantees the high quality and reliability of the products provided that the technical requirements described in Operating Instructions. This warranty is issued for a period of one year from the date of purchase and is provided in the event that the product is found to be defective due to inadequate quality of materials or workmanship of the manufacturer.
- Page 24 APPLICATION AURA AUDIO www.aurael.ru Due to continuous product development and improvement, all specifications and appearance are subject to change without notice. © AURA Electronics Inc. All rights reserved.
