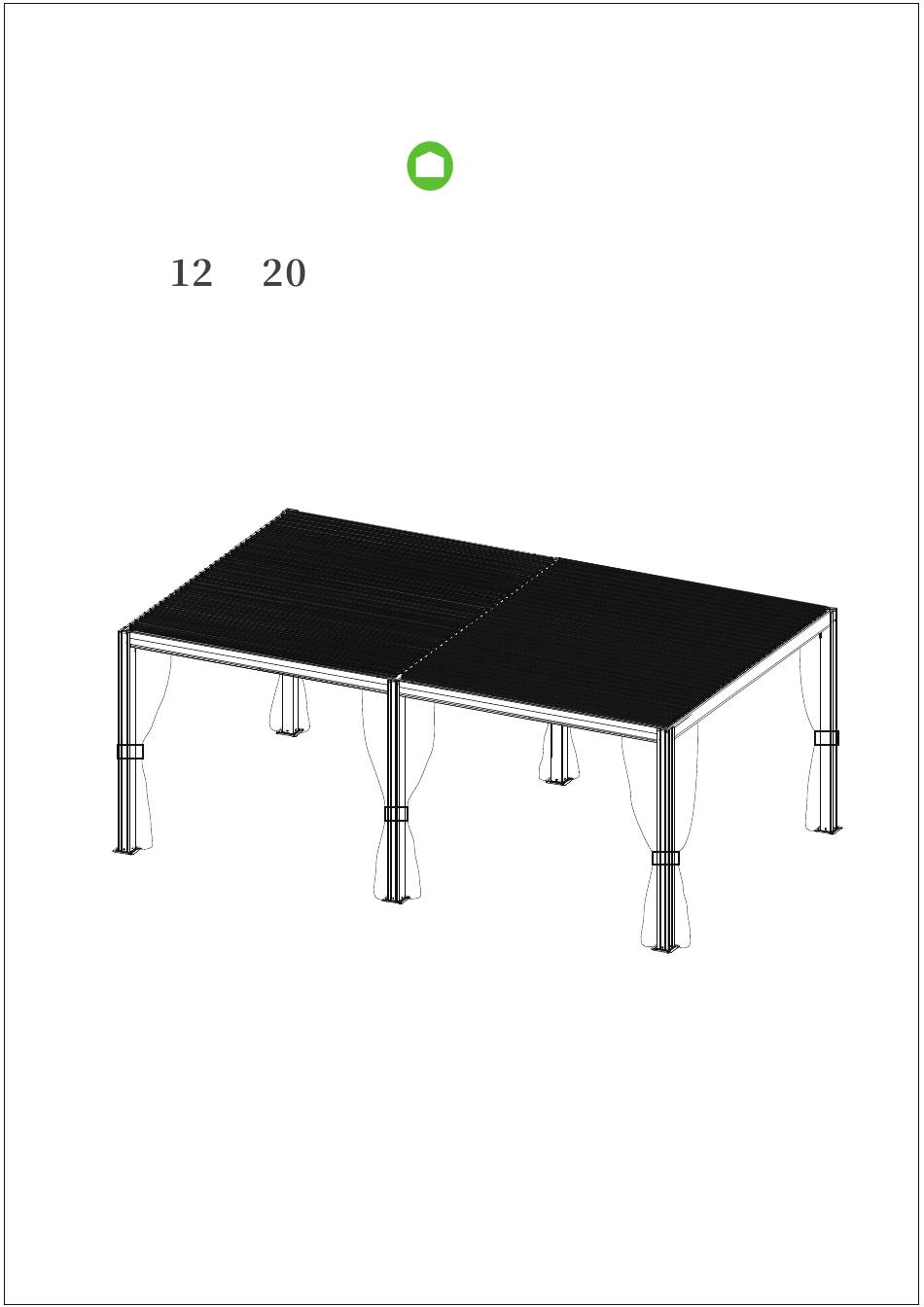

- Page 1 '× ' LOUVERED PERGOLA WITH ALUMINUM ROOF ASSEMBLY MANUAL MODEL#: LGFA1605 Missing part? Damaged? Contact us via email at domiservice01@outlook.com © Copyright 2022-2024 domi LLC. I All Rights Reserved.
- Page 2 -Maximum weight capacity is pounds. -If moderate to heavy snow is forecast, open the lovers to avoid snow accumulating.
- Page 3 12' x 20' Louvered Pergola Dimension 120X120mm (4.7"X4.7")
- Page 4 MOUNTING BLUEPRINT Pergola 12' x 20' (146.89") (6.85") (6.85")
- Page 5 67mm(2.64 ) 35mm 1.38 If the deck is hard wood and If the ground is concreted and the depth the depth of it is over 3 inch of it is over 3 inch you can use 1/4 inch you can use 5/16 in. ×4 in. expansion bolts to mount the pergola.
- Page 7 A x4 F x4 Step 1: Connect Part #A and Part #F with 4 Bolts 1# as shown. Repeat the above procedures to assemble the other 3 posts.
- Page 8 Ab x2 F x2 Step 2: Connect Part #Ab and Part #F with 4 Bolts 1# as shown. Repeat the above procedures to assemble another post.
- Page 9 B1 x2 J x2 Step 3: Insert Part #J into Part #B1. Secure with 2 Bolts 1# and 2 Bolts 9# as shown. Repeat the above procedures to assemble another beam.
- Page 10 K x2 Linkage Rod Step 4: Insert Part #K into the hole on Linkage Rod of Beam #B1. Secure with Nut 6# and gasket as shown. Linkage Rod Repeat the above procedures to assemble another beam.
- Page 11 B3 x2 H x4 B4 x2 Step 5: Insert 2 Part# H into Part #B3 and Part #B4 with 10 Bolts 1# as shown. Repeat the above procedures to assemble another beam.
- Page 12 G x4 Form Main Framework Step 6: Install 8 Bolts 2# to secure Beam #B1 and Beam #B3/B4 with Post #A, then install Part #G into Corner Post #A as shown. Repeat the above procedures to assemble the other three sides. ATTENTION: Don't tighten the bolts before all bolts are in the correct place.
- Page 13 G1 x2 Install Center Post Step 7: Install 4 Bolts 2# to secure Assembled Beam (Part #B3 & B4) with Post #Ab, then install Part #G1 into Post #Ab as shown. ATTENTION: Don't tighten the bolts before all bolts are in the correct place. Repeat the above procedures to assemble another side.
- Page 14 B x1 Install Center Beam Step 8: Place Part #B on the middle joint of Part #B3 and Part #B4 with 4 Bolts 1# as shown. Repeat the above procedures to assemble another side. Left Side Right Side...
- Page 15 Y x2 Step 9: Connect Part #B and Part #Ab with Part #Y and secure with 4 Bolts 1# as shown. Repeat the above procedures to assemble another side.
- Page 16 C x2 Step 10: Install Part #C on the inside of Part #B3 with 6 Bolts 3# as shown. Repeat the above procedures to assemble another side. Inside View...
- Page 17 D1 x2 N x56 M x2 Install Rails and Hooks Step 11: Fix Part #D1 below Part #B1 with 6 Bolts 4#; then slide Hooks #N to the inside&outside rail; finally install Part#M with 1 Bolt 4# to block the entrance as shown. Repeat the above procedures to assemble another side.
- Page 18 D3 x4 Step 12: Fix Part #D3 below Part #B3/B4 with 6 Bolts 4# and 2 Bolts 5# as shown. Repeat the above procedures to assemble another side. Section View Section View...
- Page 19 N x96 M x4 Step 13: Slide Hooks #N to the inside&outside rail; then install 4 Part#M Inside Rail Outside Rail Inside Rail Outside Rail with 4 Bolts 4# to block the entrance as shown. Outside Inside Inside Outside Outside Inside Inside Outside...
- Page 20 L x2 Linkage Rod Step 14: Linkage Rod ② Fix another part of Part #L on Part #J ①Insert the connecting rod end of Part #L with 2 Bolts 8#, nuts and gaskets. into Part #K and secure with 1 Nut 7# and gasket.
- Page 21 E x64 Step 15: Install Part #E with Bolts 10# as shown. ※ If moderate to heavy snow is forecast, pls open the louvers to avoid snow accumulating. Install Louvers...
- Page 22 Z x1 Louver Close Louver Fully Louver Half State Open State Open State Step 16: Just shake the roller rod anytime you want let the sun in or block the sunray. (ATTENTION: Louvers can be opened and closed in cycles.) Please make sure that the Louvers were fully closed for waterproof effect.
- Page 23 R3 x2 R2 x2 R1 x2 T x6 S1 x2 S3 x2 S2 x2 Step 17: Install Part S1, S3, S2 and R1, R3, R2 as shown. Velcro/Strap Velcro/Strap Velcro/Strap...
- Page 24 Pictures below indicate the number of holes on the curtains, each hole is match to one hook. Velcro/Strap Velcro/Strap Velcro/Strap Velcro/Strap...
- Page 25 Pictures below indicate the number of holes on the netting, each hole is match to one hook.
- Page 26 The wider strap is used to tie the netting. The small netted straps on the netting are needed to cross the hole on the curtains, then tie the small netted strap on each post. Finally tie the big strap on each post. ※...
